Hydrovane HV01 - HV07
50 / 60 Hz Open – Fixed Speed (1.1 – 7.5 kW) Models
The Hydrovane HV (PURS / PUTS) series of horizontal open format (unenclosed) fixed speed compressors are engineered to meet the most stringent of specifications. The range is designed for a wide variety of light industry applications including automobile, car body repair shops, dentistry, packaging and machine tools. Their modular design and compact size also make the compressor componrents ideal for OEM applications.
The 1.1 and 2.2 kW models won the Design Council award combining simplicity of operation with proven reliability.
A 12 month standard warranty is available on the HV 1.1 to 7.5 kW Hydrovane standard product range.
Range Features
10 bar (145 psi)- 0.12 to 0.99 m³/min (4.2 to 35 cfm)
- 1.1 to 7.5kW
- Slow Speed: 1450 RPM (1760 @ 60 Hz)
- Low noise levels 62 to 73 dB(A)

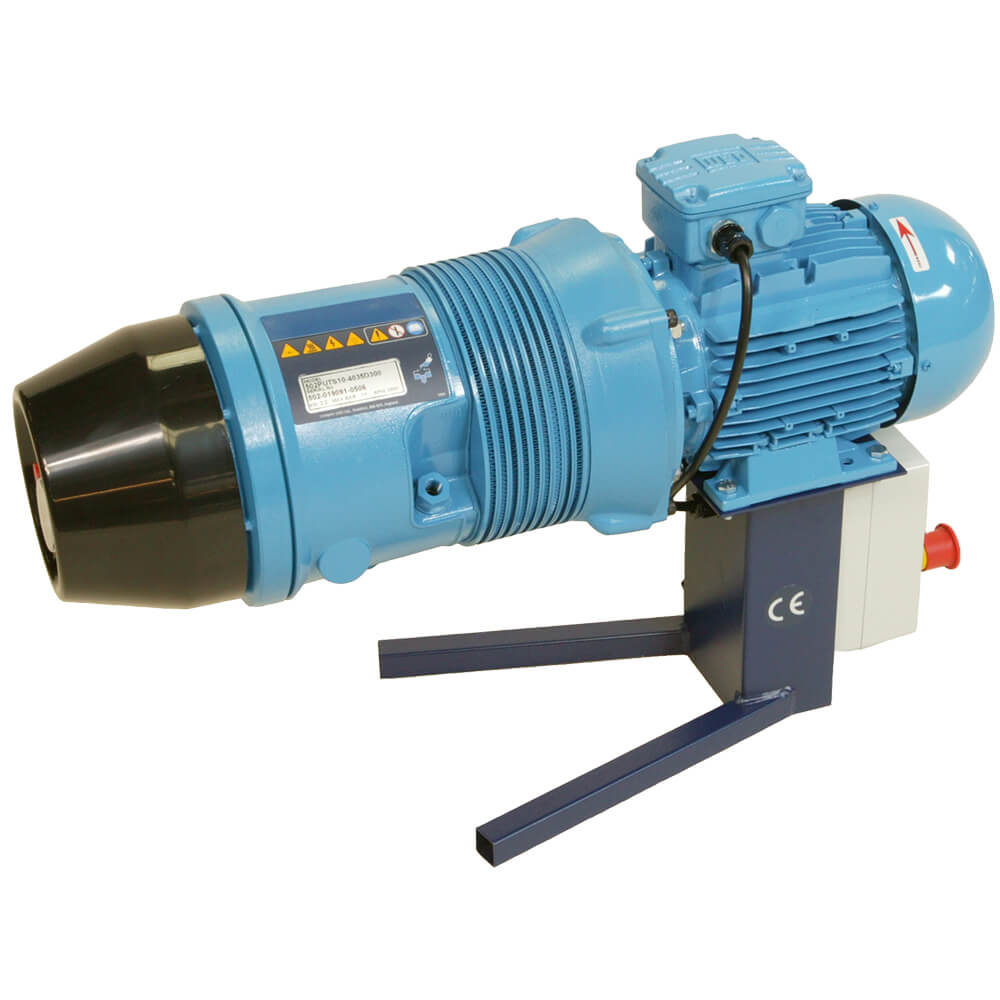

- Tripod or receiver mounted
- Continuous run or Start/Stop
- IP55 Electric Motor
- Standard Starter
- Single phase versions up to 2.2 kW
- HV01PURS & HV02PURS – 75 litre receiver

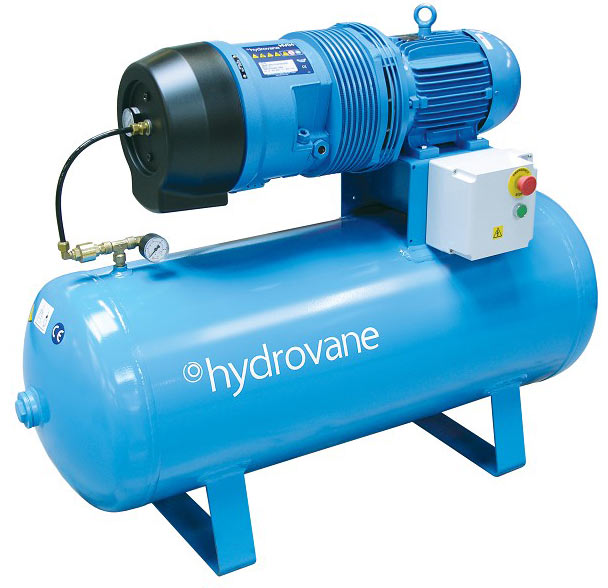

- HV04PURS, HV05PURS & HV07PURS- 200 litre receiver
- Direct Drive
| Motor Power | kW | 1.1 | 1.5 | 2.2 | 4 | 5.5 | 7.5 | |||||||
| Model | HV01 (PUTS) | HV01 (PUTS) | HV02 (PURS) | HV04RM (PURS) | HV05RM (PURS) | HV07RM (PURS) | ||||||||
| Voltage / Phase | 50Hz | 240V 1Ph | 400V 3Ph | – | 240V 1Ph | 400V 3Ph | 400V 3Ph | 400V 3Ph | 400V 3Ph | |||||
| 60Hz | – | 230V 1Ph | 230V 3Ph | 460V 3Ph | – | – | – | – | ||||||
| Starter Type | DOL | DOL | DOL | DOL | SD | SD | ||||||||
| Mounting Configuration | Tripod | Tripod | Receiver | Receiver | Receiver | Receiver | ||||||||
| Receiver Capacity | Litres | – | – | 75 | 200 | 200 | 200 | |||||||
| Maximum FAD m3/min (cfm) | 8 bar | – | – | – | – | – | – | |||||||
| 10 bar | 0.12 (4.3) | 0.14 (4.9) | 0.23 (8.0) | 0.57 (20.1) | 0.71 (25.0) | 1.00 (35.0) | ||||||||
| Motor Speed | (rpm) | 1450 | 1760 | 2900 | 1450 | 1450 | 1450 | |||||||
| Oil Capacity | (litres) | 1 | 1 | 1 | 1.8 | 4 | 4 | |||||||
| Air Outlet | (Rp) | 3⁄8” | 3⁄8” | 3⁄8” | 1⁄2” | 3⁄4” | 3⁄4” | |||||||
| Dimensions (mm) | Depth | 270 | 270 | 300 | 455 | 540 | 540 | |||||||
| Width | 700 | 700 | 1120 | 1410 | 1370 | 1370 | ||||||||
| Height | 470 | 470 | 730 | 990 | 1070 | 1070 | ||||||||
| Noise | dB(A) | 62 | 65 | 69 | 73 | 73 | 73 | |||||||
| Weight | kg | 41 | 41 | 77 | 145 | 218 | 218 | |||||||
| Air Cleanliness | (mg/m3) | <3 | <3 | <3 | <3 | <3 | <3 | |||||||
