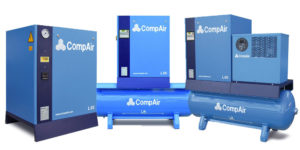

CompAir L02 – L05 Compressors
Thanks to the user-friendly design of the L02–L05 range these CompAir compressors are simple to use, simple to install and fully ready for plug and play.
A series of technologically advanced compressors based on in-depth research and development process. The result is a low-noise compressor, environmentally friendly thanks to a reduced current consumption and the use of easily recyclable materials.
To meet the requirements of the individual customer demands the range of compressors can be combined with numerous options to provide everything from a stand alone compressor, receiver mounted or complete Airstation including refrigerant dryer.
Thanks to the user-friendly design of the L02–L05 range these CompAir compressors are simple to use, simple to install and fully ready for plug and play.
Industrial Design – Compact & Powerful!
Designed with the minimum number of moving parts, the compressor is reliable, robust and capable of continuous running for all applications.
It couldn’t be easier to service With fully removable side panels the compressor is quick and easy to maintain and service, minimising downtime and maximising reliability.
CompAir Receivers built to EN87/404 (AD2000).
Download the CompAir L02-L05 Air Compressor Sales PDF.
Ordering Information
| Model | FAD@ 10 bar /145 psi 1) m3/min |
Motor kW (hp) |
Starter Options |
Controller Options |
Receiver Size l |
Noise Level 2 dB(A) |
Weight kg |
Dimension L x W x H mm |
| Base Mounted | ||||||||
| L02 – (230 V) | 0.21 | 2.2 (3) | DOL | Pressure Switch | 61 | 100 | 620 x 600 x 840 | |
| L02 | 0.24 | 2.2 (3) | DOL | Pressure Switch | 61 | 100 | 620 x 600 x 840 | |
| L03 | 0.36 | 3 (4) | DOL | Pressure Switch | 61 | 100 | 620 x 600 x 840 | |
| L04 | 0.53 | 4 (5) | DOL | Pressure Switch | 62 | 105 | 620 x 600 x 840 | |
| L05 | 0.67 | 5.5 (7) | DOL | Pressure Switch | 66 | 105 | 620 x 600 x 840 | |
| L04 | 0.53 | 4 (5) | Star-Delta | AirBasic | 62 | 105 | 620 x 600 x 840 | |
| L05 | 0.67 | 5.5 (7) | Star-Delta | AirBasic | 66 | 105 | 620 x 600 x 840 | |
| Receiver Mounted | ||||||||
| L02 – 200 – (230 V) | 0.24 | 2.2 (3) | DOL | Pressure Switch | 200 | 61 | 165 | 1450 x 600 x 1355 |
| L02 – 200 | 0.24 | 2.2 (3) | DOL | Pressure Switch | 200 | 61 | 165 | 1450 x 600 x 1355 |
| L03 – 200 | 0.36 | 3 (4) | DOL | Pressure Switch | 200 | 61 | 165 | 1450 x 600 x 1355 |
| L04 – 200 | 0.53 | 4 (5) | DOL | Pressure Switch | 200 | 62 | 170 | 1450 x 600 x 1355 |
| L04 – 500 4) | 0.53 | 4 (5) | DOL | Pressure Switch | 500 | 62 | 255 | 1950 x 680 x 1520 |
| L05 – 200 | 0.67 | 5.5 (7) | DOL | Pressure Switch | 200 | 66 | 170 | 1450 x 600 x 1355 |
| L05 – 500 4) | 0.67 | 5.5 (7) | DOL | Pressure Switch | 500 | 66 | 255 | 1950 x 680 x 1520 |
| L04 – 200 | 0.53 | 4 (5) | Star-Delta | AirBasic | 200 | 62 | 170 | 1450 x 600 x 1355 |
| L04 – 500 4) | 0.53 | 4 (5) | Star-Delta | AirBasic | 500 | 62 | 255 | 1950 x 680 x 1520 |
| L05 – 200 | 0.67 | 5.5 (7) | Star-Delta | AirBasic | 200 | 66 | 170 | 1450 x 600 x 1355 |
| L05 – 500 4) | 0.67 | 5.5 (7) | Star-Delta | AirBasic | 500 | 66 | 255 | 1950 x 680 x 1520 |
| AIRSTATION 3) | ||||||||
| L02FS – 200 – (230 V) | 0.24 | 2.2 (3) | DOL | Pressure Switch | 200 | 61 | 212 | 1450 x 600 x 1355 |
| L02 FS – 200 | 0.24 | 2.2 (3) | DOL | Pressure Switch | 200 | 61 | 212 | 1450 x 600 x 1355 |
| L03 FS – 200 | 0.36 | 3 (4) | DOL | Pressure Switch | 200 | 61 | 212 | 1450 x 600 x 1355 |
| L04 FS – 200 | 0.53 | 4 (5) | DOL | Pressure Switch | 200 | 62 | 213 | 1450 x 600 x 1355 |
| L04 FS – 500 4) | 0.53 | 4 (5) | DOL | Pressure Switch | 500 | 62 | 290 | 1950 x 680 x 1520 |
| L05 FS – 200 | 0.67 | 5.5 (7) | DOL | Pressure Switch | 200 | 66 | 217 | 1450 x 600 x 1355 |
| L05 FS – 500 4) | 0.67 | 5.5 (7) | DOL | Pressure Switch | 500 | 66 | 295 | 1950 x 680 x 1520 |
| L04 FS – 200 | 0.53 | 4 (5) | Star-Delta | AirBasic | 200 | 62 | 213 | 1450 x 600 x 1355 |
| L04 FS – 500 4) | 0.53 | 4 (5) | Star-Delta | AirBasic | 500 | 62 | 290 | 1950 x 680 x 1520 |
| L05 FS – 200 | 0.67 | 5.5 (7) | Star-Delta | AirBasic | 200 | 66 | 217 | 1450 x 600 x 1355 |
| L05 FS – 500 4) | 0.67 | 5.5 (7) | Star-Delta | AirBasic | 500 | 66 | 295 | 1950 x 680 x 1520 |
Max Pressure : 10
1) Data measured and stated in accordance with ISO 1217 Annec C and Pneurop / Cagi PN2CPTC2 and the following conditions:
Air Intake Pressure 1 bar a ; Air Intake Temperature 20˚ C ; Humidity 0 % (dry)
2) Measured in free field conditions in accordance with ISO 2151 and ISO 9614-2, tolerance ± 3 dB(A).
3) The refrigerant dryer requires a separate electric supply. Data refer to DIN ISO 7183, 8573-1:2001 (class 4, pressure dew point 3° C).
4) 500 ltr receiver option not available with AD2000
