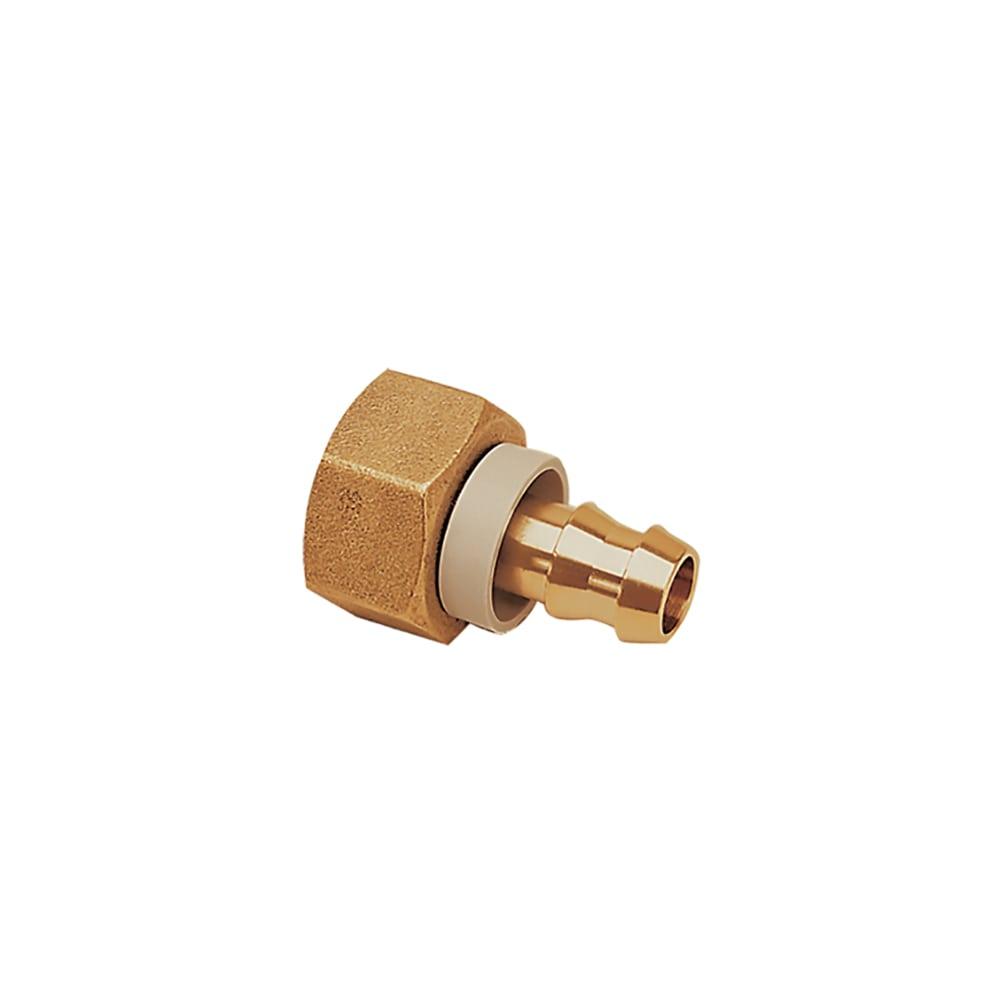

0132 06 56 — Quick-Acting Barbed Fitting With Brass Female Compression Fitting — Self-fastening Barb Connector for Brass Compression Fitting — 6 mm
£6.48 exc. VAT; £7.78 inc. VAT
0132 06 56 — Brass fittings for a quick connection of self-fastening hose to a female port.
Available from 6 to 22 mm o.d
This range of fittings is designed to meet the requirements of the automotive and robotics industries – CNOMO manufacturing quality.
Available to order - usually dispatched within 1 week (Manufacturer Dependant)
Description
The 0132 06 56 is a Quick-Acting Barbed Fitting With Brass Female Compression Fitting (Self-fastening Barb Connector for Brass Compression Fitting, 6 mm), supplied from UK stock by J&J Air Systems. It is rated to a maximum operating pressure of 16 bar and an operating temperature range of -20°C to 100°C.
Specification
- Part number: 0132 06 56
- Size / variant: Self-fastening Barb Connector for Brass Compression Fitting, 6 mm
- Maximum operating pressure: 16 bar
- Operating temperature: -20°C to 100°C
- Suitable for: Coolants | Compressed Air
- Applications: Industrial Machinery | Automotive Process | Cooling | Lubrication | Pneumatics | Fluid Transmission | Packaging
- Weight: 0.01 kg
Need technical advice, availability or volume pricing? Call 0800 0278 442 or email [email protected].
About this range
This range of fittings is designed to meet the requirements of the automotive and robotics industries, provides optimum CNOMO manufacturing quality, simple installation, reliable operation and a long service life.
Features/Benefits:
– Perfect for Self-Fastening NBR Hose
• Quick and simple to install
• Compatible with the Parker Legris range of brass compression fittings
• Mechanical properties proven for use in industrial robotic installations
• Spark-resistant
– Ergonomic and Time-Saving
• Fitting does not require lubrication or clamping, reducing assembly time
• Visual stop confirms installation is correct and improves operating safety
• Removal by cutting the tube
• The fitting can be re-used if necessary
Markets:
• Packaging
• Miscellaneous Manufacturing
• Vehicle Assembly Facilities
• Machine Tools
Applications:
• Pneumatic Machinery Equipment at Medium and High Pressure
• Lubrication Systems
• Cooling Systems
• Welding Robots
• Suitable for Vacuum Applications
Technologies:
Brass fittings for a quick connection of self-fastening hose to a female port.
Technical Characteristics:
• Fluids: Coolants, compressed air
• Materials: brass, engineering polymer, silicone free
• Pressure: 0 to 16 bar
• Temperature:
0°C to +100°C (water)
-20°C to 70°C (air)
Regulations:
• DI: 2002/95/EC (RoHS), 2011/65/EC
• DI: 97/23/EC (PED)
• RG: 1907/2006 (REACH)
• CNOMO: E07.21.115N
Additional information
| Weight | 0.01 kg |
|---|---|
| Body Material | Brass |
| Product Type | Self-Fastening Barb Connectors for NBR Hose |
| Shape | Self-fastening Barb Connector for Brass Compression Fitting |
| Tube Inside Diameter | 6.3 mm |
| Application | Industrial Machinery | Automotive Process | Cooling | Lubrication | Pneumatics | Fluid Transmission | Packaging |
| Division | Low Pressure Connectors Europe Division |
| For Fluid Type | Coolants | Compressed Air |
| Maximum Operating Pressure | 16 bar |
| Maximum Operating Temperature | 100 °C |
| Minimum Operating Temperature | -20 °C |
| Quantity per Box | 10 |
| Specifications Met | PED DI: 97/23/EC | RoHS 2011/65/EC | REACH DI: 1907/2006 | CNOMO E07.21.115N | RoHS DI: 2002/95/EC |
| Weight | 0.01 kg |
