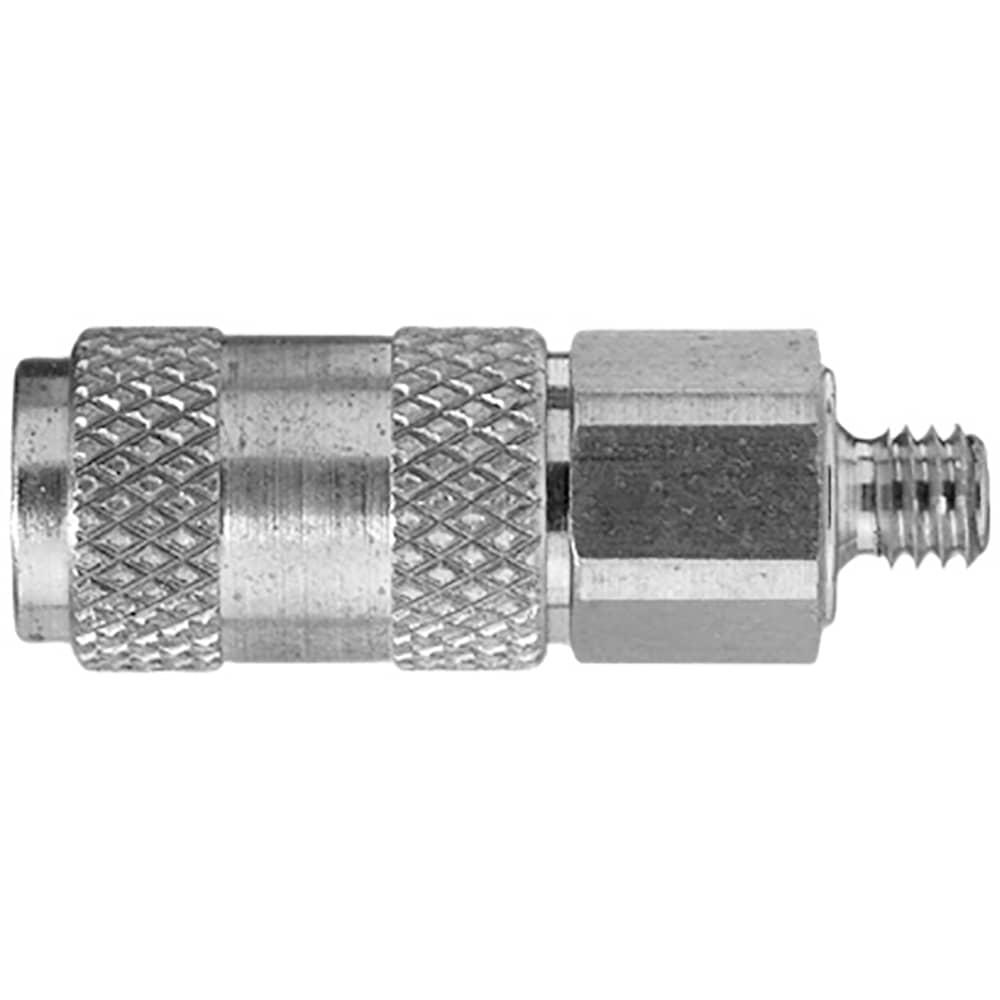

02KAAM03MPN — Quick coupling system with nominal diameter 1.5 for pneumatic and fluid & gas handling applications — 3mm
02KAAM03MPN — Quick coupling system with nominal diameter 1.5 for pneumatic and fluid & gas handling applications — 3mm - Image 2

02KAAM03MPN — Quick coupling system with nominal diameter 1.5 for pneumatic and fluid & gas handling applications — 3mm

£21.47 exc. VAT; £25.76 inc. VAT

02KAAM03MPN — Quick coupling system with nominal diameter 1.5 for pneumatic and fluid & gas handling applications up to 35 bar. Parker’s smallest mini industrial coupling system. Available made of brass.

Available to order - usually dispatched within 1 week (Manufacturer Dependant)

SKU: 02KAAM03MPN Category:

Description

Parker's smallest Quick Coupling Series 02 is a mini industrial coupling for air and gas applications. It's primarily used in medicine, didactics and model building. Due to its extremely small dimensions, the series 02 is especially suitable for use with liquids.
The series 02 is developed for single-hand operation.
Markets:
– Machinery Construction
– Life Science
Features/Benefits:
– Single-hand operation for easy and fast connection
– Extremely small dimensions
Applications:
– Fluid Transfer
– Model Making

Additional information

Weight 0.002 kg
Body Material

Brass
Connection Size

M3
Connection Type

Male | Metric
Coupling Half

Coupler
Diameter

1.5 mm (nominal)
Flow Rate

0.6 L/min (water) | 50 L/min (air)
Function

Single Shut-Off
Length

19 mm
Operation Type

Sleeve
Outside Diameter

6.5 mm
Product Series

Series 02
Product Style

Quick Connect
Product Type

Pneumatic Quick Couplings
Seal Material

NBR
Sleeve Material

Brass
Valve Included

Yes
Valve Type

Standard Valve
Application

Fluid Transfer | Model Making
Brand

Parker | Rectus
Compatible Fitting

Series 02 Plug
Division

Low Pressure Connectors Europe Division | Low Pressure Connectors Europe Division
For Fluid Type

Air & Neutral Gases (Industrial compressed, drinking, inert gases) | Water (Industrial, lubricated, treated water)
Hex Size

6 mm
Industry

Medicine | Didactics | Life Science | Machinery Construction
Interchange Type

Parker Profile
Maximum Operating Pressure

35 bar | 508 psi
Maximum Operating Temperature

212 °F | 100 °C
Minimum Operating Temperature

-4 °F | -20 °C
Plating Type

Nickel-Plated
Quantity per Box

10.0
Region of Origin

Germany
Technology

Fluid & Gas Handling | Pneumatics
Weight

0.002 kg
