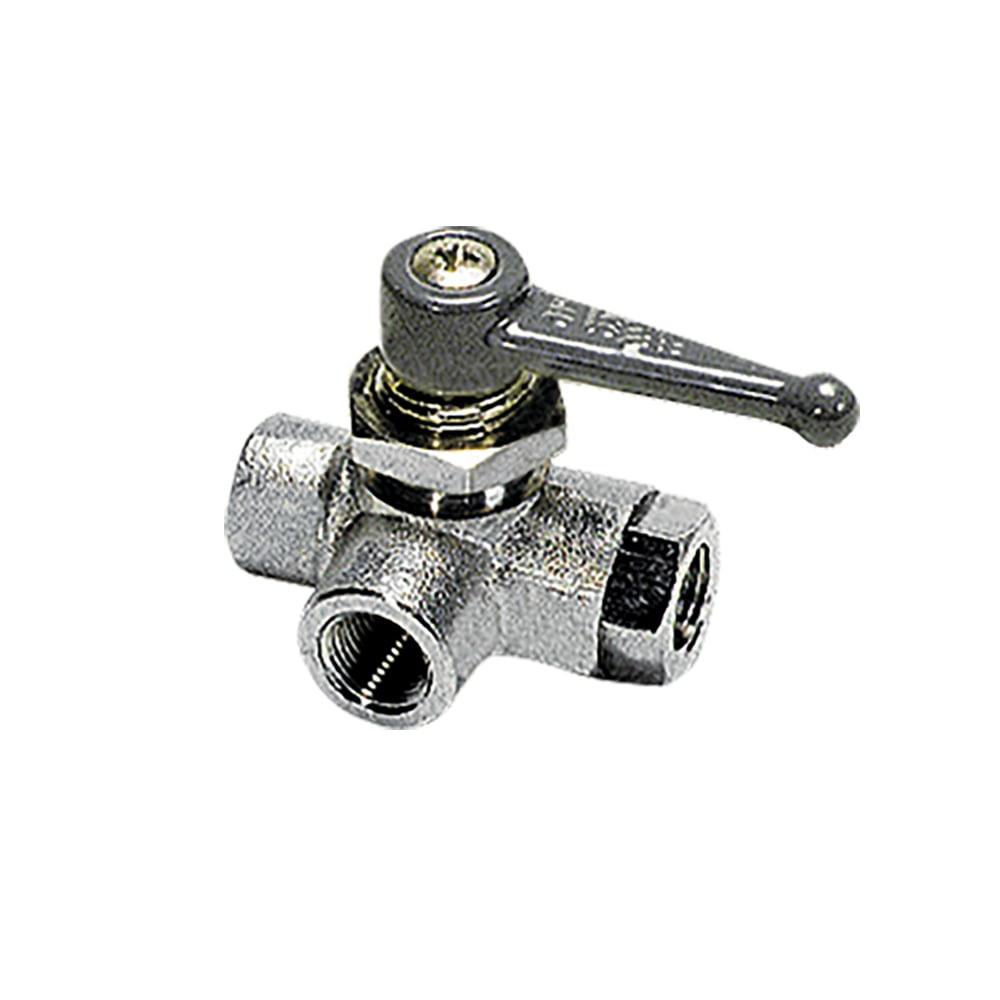

0452 06 13 30 — Ball Valves Universal Series — G1/4
£71.04 exc. VAT; £85.25 inc. VAT
0452 06 13 30 — This range of valves has patented seal wear compensating technology for reliable and durable sealing, protecting any system whether under pressure or vacuum.
Available to order - usually dispatched within 1 week (Manufacturer Dependant)
Description
The 0452 06 13 30 is a Ball Valves Universal Series (G1/4), supplied from UK stock by J&J Air Systems. It is rated to a maximum operating pressure of 20 bar and an operating temperature range of -20°C to 80°C.
Specification
- Part number: 0452 06 13 30
- Size / variant: G1/4
- Maximum operating pressure: 20 bar
- Operating temperature: -20°C to 80°C
- Suitable for: Water | Volatile Gas | Inert Gases | Air
- Applications: Safety | Process Control | Pneumatics | Fluid Control
- Weight: 0.260 kg | 0.573 lb
Need technical advice, availability or volume pricing? Call 0800 0278 442 or email [email protected].
About this range
This range of valves has patented seal wear compensating technology for reliable and durable sealing, protecting any system whether under pressure or vacuum.
Features/Benefits:
– Durability & reliability
• Automatic seal wear compensation for long-term reliability
• Robust, corrosion-resistant materials
• 100% leak-tested in production
• Date coding to guarantee quality and traceability
– Versatility & Performance
• Ideal for ensuring the performance of pneumatic circuits
• Customised valves for all special applications
• Unequalled performance under vacuum
• Smooth operation thanks to self-lubricating seals
• Large range of working pressures and temperatures
• Lever can be repositioned and replaced
• Many configurations to satisfy all system requirements
Markets:
• Packaging
• Wearing Apparel
• Lumber & Wood
• Rubber & Tire Processing
• Plastic Processing
• Rail
Applications:
• Allow/Stop Fluid Circulation on Industrial Circuits
• Suitable for Slightly Corrosive Industrial Fluids
• Suitable for Vacuum Applications
Technologies:
• Industrial valves
• Corrosion resistant
• Pneumatic circuits
• Pneumatic systems
Technical Characteristics:
• Fluids: Industrial fluids
• Materials: brass, galvanised steel, treated zamak, NBR, nickel-plated brass, nickel-plated shot-blasted brass, nickel-plated polished brass, silicone free
• Pressure: Vacuum to 40 bar
• Temperature: -20°C (-40°C without movement of the handle) to +80°C
Regulations:
• DI: 97/23/EC (module PED A – diameters greater than 25 mm)
• DI: 2006/42/EC (Machinery Directive)
• DI: 2002/95/EC (RoHS)
• RG: 1907/2006 (REACH)
Product Types:
• 2/2 In-Line Ball Valve, Female BSPP Thread
• 2/2 In-Line Ball Valve, Male/Female BSPP Thread
• 2/2 In-Line Ball Valve, Male BSPP Thread
• 2/2 In-Line Ball Valve with Connections for Use with Steel Tube
• 2/2 In-Line Ball Valve with Compression Connections
• 2/2 In-Line Panel-Mountable Ball Valve, Female BSPP Thread
• 2/2 In-Line Ball Valve for Screw Fixing, Female BSPP Thread
• 2/2 In-Line Ball Valve for Screw Fixing, Male/Female BSPP Thread
• 2/2 Right-Angled Ball Valve, Female BSPP Thread
• 2/2 Right-Angled Ball Valve, Male/Female BSPP Thread
• 3/3 Right-Angle Ported Ball Valve, Female BSPP Thread
• 3/3 Right-Angle Ported Ball Valve without Closed Position, Female BSPP Thread
• 3/2 Panel-Mountable Right-Angled Ball Valve, Female BSPP Thread
• 3/2 Panel-Mountable Equal Plane Ball Valve, Female BSPP Thread
• 3/2 In-Line Vented Ball Valve, Female BSPP and Metric Thread
• 3/2 Panel-Mountable In-Line Ball Valve, Female BSPP and Metric Thread
• 3/2 In-Line Vented Ball Valve, Female BSPP Thread
• 3/2 Right-Angled Ball Valve with Vent, Female BSPP Thread
• 3/2 Right-Angled Ball Valve with Vent, Male/Female BSPP Thread
• 2/2 In-Line Lockable Ball Valve, Female BSPP Thread
• 3/2 In-line Vented Lockable Ball Valve, Female BSPP Thread
• 3/2 In-Line Lockable Ball Valve with Threaded Exhaust Port, Female BSPP and Metric Thread
• 3/2 In-line Vented 3-Point Lockable Ball Valve, Female BSPP Thread
• 3/2 Right-Angled 3-Point Lockable Ball Valve, Female BSPP Thread
Additional information
| Weight | 0.213 kg |
|---|---|
| Ball Material | Polish Nickel-Plated Brass |
| Ball Seal Material | EPDM |
| Body Material | Nickel-Plated Brass |
| Configuration | 3/2 |
| Connection 1 Thread Size (metric) | G1/4 |
| Connection 1 Thread Style | BSPP |
| Connection 2 Tube O.D. (mm) | na |
| Connection Size | G1/4 |
| Connection Type | BSPP |
| Diameter Nominal (DN) | 6.0 |
| Flow Rate | n/a L/min |
| Function | 3-Way |
| Handle | ZAMAK |
| O-Ring Material | EPDM |
| Operation Type | Lever-operated |
| Orifice Size | 6 mm |
| Product Series | Universal Series Customised for Special Application |
| Product Style | Plane Panel Mountable Female Ball Valve |
| Product Type | Ball Valves |
| Seal Material | EPDM |
| Shape | Right Angled |
| Stem Material | Brass |
| Stem Seal Material | EPDM |
| Actuation Type | Manual |
| Application | Safety | Process Control | Pneumatics | Fluid Control |
| Brand | Legris |
| Division | Low Pressure Connectors Europe Division | Low Pressure Connectors Europe Division |
| For Fluid Type | Water | Volatile Gas | Inert Gases | Air |
| Handle Type | Grey | Long Lever (ZAMAK) |
| Industry | Industrial Manufacturing Equipment |
| Maximum Flow Rate | n/a L/min |
| Maximum Operating Pressure | Vacuum to 20 bar | Vacuum to 2 MPa | Vacuum to 290.08 psi |
| Maximum Operating Temperature | 80 °C |
| Minimum Operating Temperature | -4 °F | -20 °C | up to -40 °C (-40°F without movement of the handle) |
| Mounting Type | Panel Mounting |
| Quantity per Box | 5 |
| Region of Origin | France |
| Seat Material | Rilsan Graphited |
| Specifications Met | DI: 2006/42/EC (Machinery Directive) | DI: 97/23/EC (module PED A – diameters greater than 25 mm) | RoHS | REACH |
| Technology | Fluid & Gas Handling | Process Control | Pneumatics |
| Weight | 0.260 kg | 0.573 lb |
