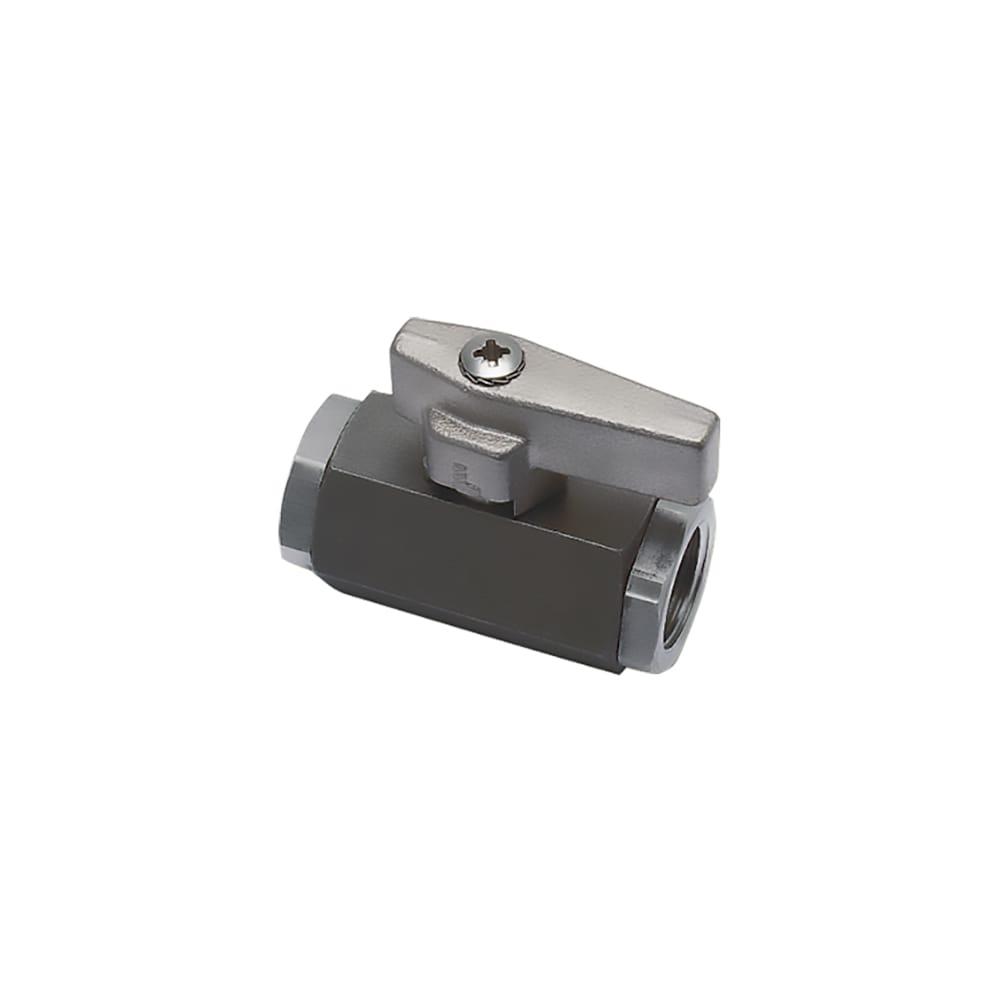

0465 04 13 — Ball Valves Stainless Steel Series — G1/4, Inline, 4mm

Description

The 0465 04 13 is a Ball Valves Stainless Steel Series (G1/4, Inline, 4mm), supplied from UK stock by J&J Air Systems. It is rated to a maximum operating pressure of 20 bar and an operating temperature range of -20°C to 120°C.

Specification

• Part number: 0465 04 13
• Size / variant: G1/4, Inline, 4mm
• Maximum operating pressure: 20 bar
• Operating temperature: -20°C to 120°C
• Suitable for: Inert Gases | Water | Air
• Applications: Pharmaceutical | Chemical | Safety | Process Control | Pneumatics | Fluid Control | Medical | Semiconductors | Petrochemical | Laboratories | Aviation
• Weight: 0.4972 lb | 0.226 kg

Need technical advice, availability or volume pricing? Call 0800 0278 442 or email [email protected].

About this range

Stainless steel series ball valves can withstand corrosive fluids and environments.
With full flow, high pressure and temperature capabilities, these valves are suitable for many applications.
Features/Benefits:
– Reliability
• Full flow
• Excellent chemical compatibility
• High resistance to pressure/temperature
• Light series version: 100% leak-tested in production, date coding to guarantee quality and traceability
– Versatility
• Three in-line versions:
One-piece: cannot be disassembled
3-piece: easily disassembled for maintenance and cleaning
Light Series: for maximum compactness
• Fixing plate: 4812 and 4832
Through-bulkhead fitting
Pneumatic or electronic actuation (ISO 5211 standard)
Markets:
• Food and Beverage
• Commercial Aircraft
• Industrial Chemical Processing
• Semiconductor
• Medical
• Lab / Diagnostic
• Pharmaceutical
Applications:
• Allow/Stop Corrosive Fluid Circulation in Harsh Environment
• Suitable for Low and High Temperatures
Technologies:
• Industrial valves
• Pneumatic actuation
• Electric actuation
Technical Characteristics:
• Fluids: All fluids
• Materials: nickel-plated brass or 430 stainless steel, 316L stainless steel or 303 stainless steel, PTFE, FKM, silicone free
• Pressure:
Type 4810, 4812 and 4832: 0 to 65 bar
Type 0465: Vacuum to 20 bar
• Temperature:
Type 4810, 4812 and 4832: -20°C to +150°C
Type 0465: -20°C to +120°C
Regulations:
• DI: 97/23/EC (module PED A – EC diameters greater than 25 mm)
• DI: Machinery Directive 2006/42/EC
• DI: 2002/95/EC (RoHS)
• RG: 1907/2006 (REACH)
• DI: 89/392/EC
Product Types:
• 2/2 In-Line 3-Piece Ball Valve with Fixing Plate, Female BSPP Thread
• 2/2 In-Line Ball Valve with Fixing Plate, Female BSPP Thread
• 2/2 In-Line Ball Valve, Female BSPP Thread
• 2/2 In-Line Light Series Ball Valve, Female BSPP Thread
