0697 00 01 — PVC Braided Hose
£0.82 exc. VAT; £0.98 inc. VAT
0697 00 01 — Parker Legris offers two grades of PVC hose with textile braid which cover a wide range of industrial applications for the transportation of various fluids.
Available to order - usually dispatched within 1 week (Manufacturer Dependant)
Description
Parker Legris offers two grades of PVC hose with textile braid which cover a wide range of industrial applications for the transportation of various fluids.
Features/Benefits:
– Food-Grade PVC
• Monograde tubing reinforced with a braided polyester ply
• Flexible: space saving during installation
• Translucent for visual identification:
of the fluid
of inner cleanliness
of fluid flow
• Food-grade, without phthalates
• Silicone-free
– Industrial PVC
• Tubing with a braided polyester ply between 2 grades of PVC
• Resistant to abrasion, impact and crushing
• Increased durability
• Lightweight and easy-to-use
• Silicone-free
Markets:
• Factory Automation
• Miscellaneous Manufacturing
• Vehicle Assembly Facilities
• Semiconductors
• Wearing Apparel
• Packaging
• Food and Beverage
Applications:
• Compressed Air Conveying
• Areas Subjected to Intensive Cleaning
Technologies:
• PVC Braided Hose
•Fluid and Gas Handling
• Pneumatics
• Process Control
• Industrial Hose
Technical Characteristics:
• Fluids:
Food-Grade PVC: Compressed air,Water, Food & Beverages
Industrial PVC: Compressed air
• Materials:
Food-Grade PVC: Translucent food-grade PVC, phthalate-free with polyester braid
Industrial PVC: Industrial blue PVC, multi-layer, with polyester braid
• Pressure:
Food-Grade PVC: 0 to 15 bar
Industrial PVC: 0 to 15 bar
• Temperature:
Food-Grade PVC: -20°C to +70°C
Industrial PVC: -25°C to +60°C
Regulations:
Food-Grade PVC
• FDA
• REACH
• RG: 1935/2004
•RoHS
• 2007/10/EC (phthalates)
Industrial PVC
• PED
• REACH
•RoHS, 2011/65/EC
Product Types:
• Food-Grade Braided PVC Hose
• Industrial-Grade Braided PVC Hose
Additional information
| Weight | 0.004 kg |
|---|---|
| Cover Color | Silver |
| Hose Outside Diameter | 0.24-0.44 INCH |
| Outside Diameter | 6 to 11 mm | 0.240 to 0.440 inch |

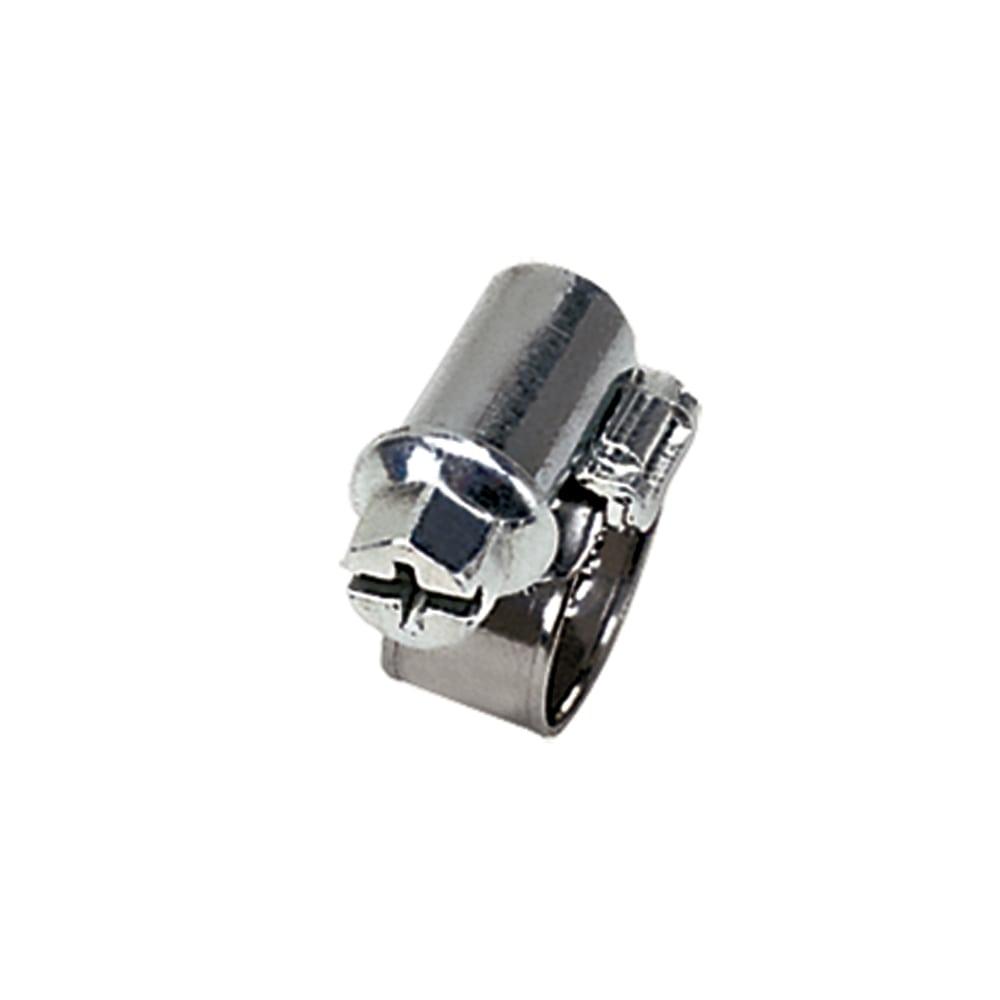

| Product Style | Pipe Clamp | Clip for Braided Hose |
| Product Type | Clip for Braided Hose |
| Application | Pneumatics | Machine Tools | In-Plant Automotive | Industrial Assembly | Workshops |
| Brand | Legris |
| Cover Material | Treated Steel |
| Division | Low Pressure Connectors Europe Division | Low Pressure Connectors Europe Division |
| Industry | Industrial Manufacturing Equipment |
| Maximum Operating Pressure | 217 psi | 15 bar | 1.5 MPa |
| Maximum Operating Temperature | 158 °F | 70 °C |
| Media | Air (Pneumatics) |
| Minimum Operating Temperature | -4 °F | -20 °C |
| Package Type | Plastic Bag |
| Pipe Outside Diameter | 1/2 inch | 25.0 mm | 16.5 mm | 1 inch |
| Specifications Met | REACH | ROHS |
| Technology | Pneumatics | Fluid & Gas Handling | Process Control |
| Weight | 0.004 kg | 0.008 lb |
