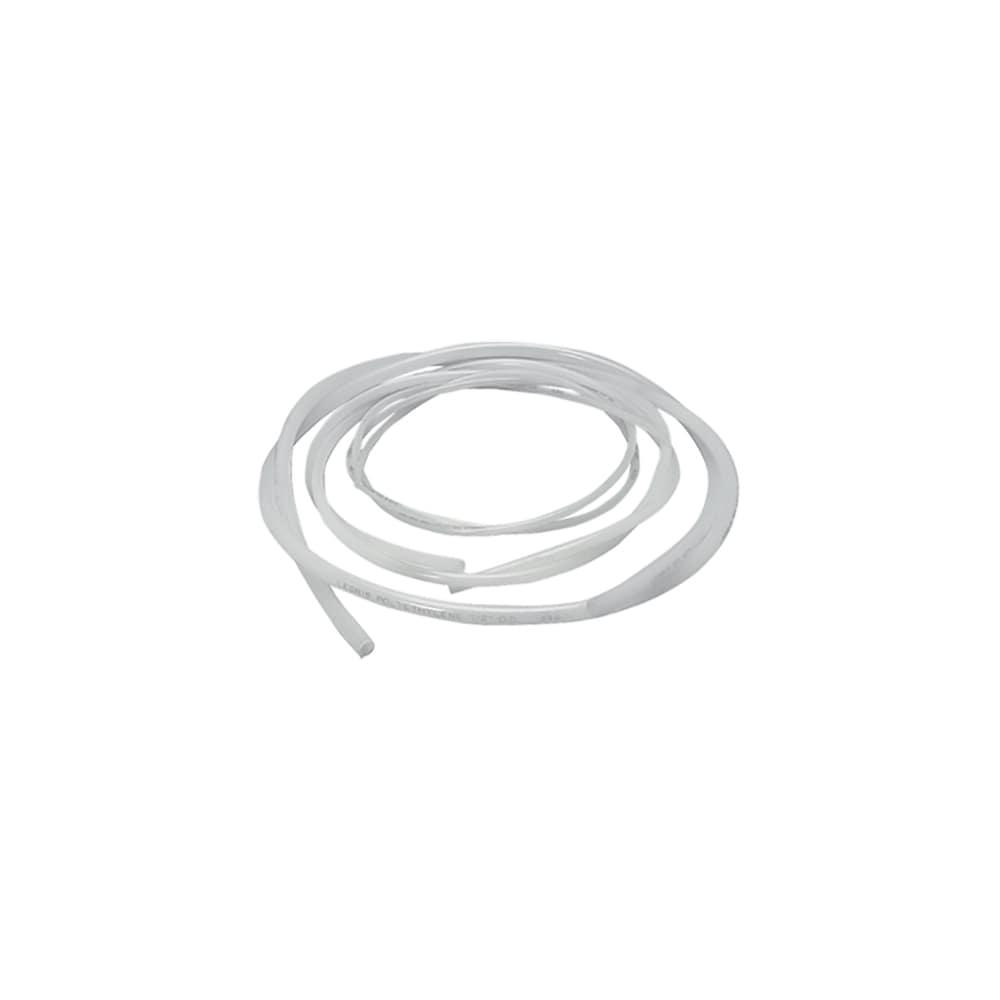

1025Y60 00 — Polyethylene (PE) Tubing — na, 25m, Clear
1025Y60 00 — Polyethylene (PE) Tubing — na, 25m, Clear - Image 2

1025Y60 00 — Polyethylene (PE) Tubing — na, 25m, Clear

£36.17 exc. VAT; £43.40 inc. VAT

1025Y60 00 — Parker Legris offers two types of polyethylene tubing: “Advanced PE” 50% reticulated and Low Density PE.
Our range of “Advanced PE” is designed for demanding environments, especially that of water treatment, without compromising operator safety.

Available to order - usually dispatched within 1 week (Manufacturer Dependant)

SKU: 1025Y60 00 Category:

Description

The 1025Y60 00 is a Polyethylene (PE) Tubing (na, 25m, Clear), supplied from UK stock by J&J Air Systems. It is rated to a maximum operating pressure of 20 bar and an operating temperature range of -40°C to 60°C.

Specification

  • Part number: 1025Y60 00
  • Size / variant: na, 25m, Clear
  • Maximum operating pressure: 20 bar
  • Operating temperature: -40°C to 60°C
  • Applications: Water Treatment | Petrochemicals | Food Processing | Chemicals | Water | Beverage
  • Weight: 0.760 kg/package

Need technical advice, availability or volume pricing? Call 0800 0278 442 or email [email protected].

About this range

Parker Legris offers two types of polyethylene tubing: “Advanced PE” 50% reticulated and Low Density PE.
Our range of “Advanced PE” is designed for demanding environments, especially that of water treatment, without compromising operator safety.

Features/Benefits:

– Advanced PE

• 50% reticulated material
• Best balance between flexibility and pressure/temperature resistance
• Resistant to a wide range of aggressive chemicals
• Approved for contact with food and beverages
• Silicone-free

– Low Density PE

• Excellent resistance to aggressive and corrosive agents
• Good technical trade-off
• Food-grade material
• Silicone-free

Markets:

• Food and Beverage
• Industrial Chemical Processing
• Oil and Gas
• Water

Applications:

• Aggressive Fluids Conveying
• Applications Subjected to Intensive Cleaning
• Thermal Management

Technologies:

• PE Tubing
• Polyethylene Tubing
• Advanced PE
• Industrial Tubing

Technical Characteristics:

Fluids:

• Advanced PE: Water, beverages and other fluids
• Low Density PE: Industrial fluids

Materials:

• Advanced PE: High quality polyethylene: 50% reticulated PE, 50% low density PE (44 shore D)
• Low Density PE: Low Density Polyethylene (44 shore D)

Pressure:

• Advanced PE: Vacuum to 16 bar
• Low Density PE: Vacuum to 20 bar

Temperature:

• Advanced PE: -40°C to +95°C
• Low Density PE: -40°C to +60°C

Regulations:

Advanced PE Tubing
• FDA: 21 CFR 177.1520
• RG: 1935/2004/EC
• DI: 97/23/EC (PED)
• DI: 2002/95/EC (RoHS), 2011/65/EC
• NSF 51
• RG: 1907/2006 (REACH)

Low Density PE Tubing
• FDA: 21 CFR 177.1520
• DI: 2002/95/EC (RoHS), 2011/65/EC
• DI: 97/23/EC (PED)

Additional information

Weight 0.941 kg
Length (inch)

na
Length (m)

25.0
Tube I.D. (inch)

0, 25
Tube I.D. (mm)

na
Tube Material

FDA, Polyethylene (PE) Low Density
Tube O.D. (inch)

3/8
Tube O.D. (mm)

na
Application

Water Treatment | Petrochemicals | Food Processing | Chemicals | Water | Beverage
Division

Low Pressure Connectors Europe Division
Maximum Operating Pressure

20 barg
Maximum Operating Temperature

60 °C
Media

Water (Advanced PE) | Beverages (Advanced PE) | Other Fluids (Advanced PE) | Industrial Fluids (Low density PE)
Minimum Operating Temperature

-40 °C
Number of Tubes

1 | 1.0
Specifications Met

RoHS | REACH | FDA
Vacuum Pressure Rating

755.0 mm-Hg | 755 mm-Hg
Weight

0.760 kg/package
