10VNXX12MXX — Quick coupling system with nominal diameter 6/9/13 for tempering and cooling applications up to 15

10VNXX12MXX — Quick coupling system with nominal diameter 6/9/13 for tempering and cooling applications up to 15

£10.74 exc. VAT; £12.89 inc. VAT

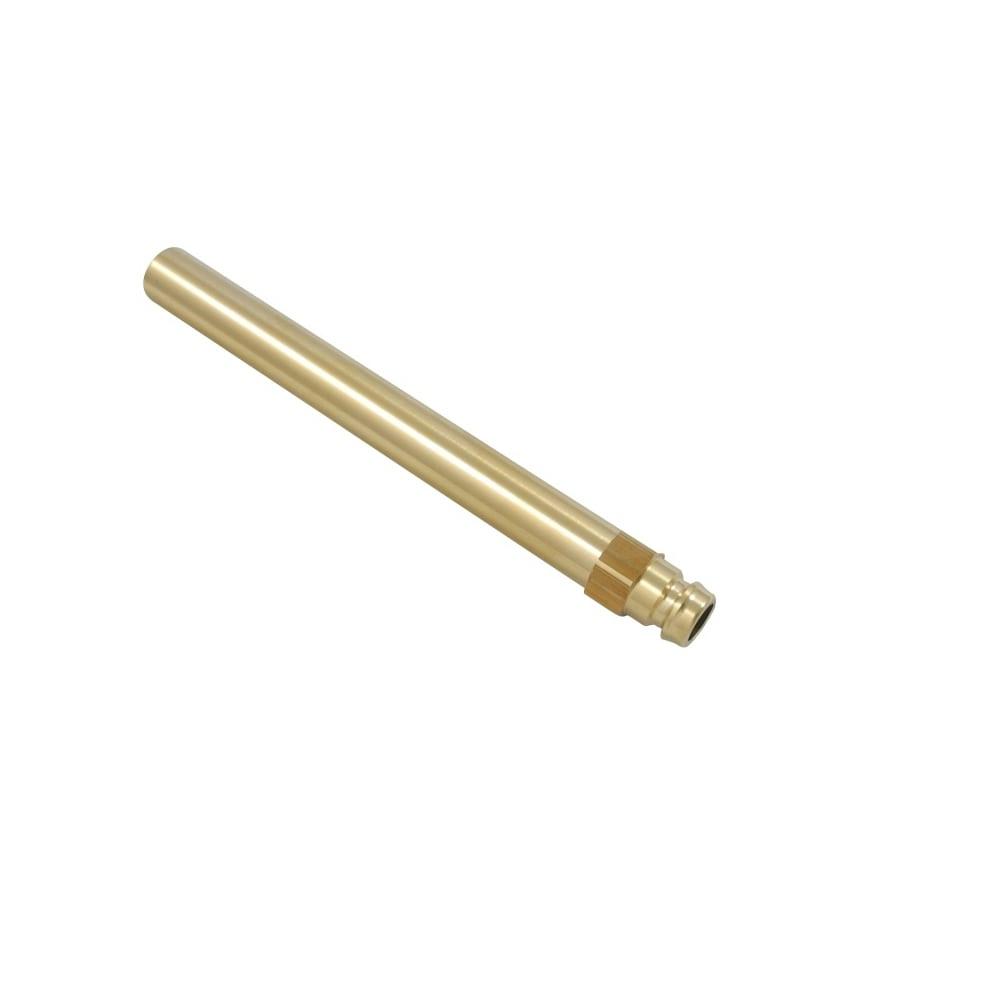

10VNXX12MXX — Quick coupling system with nominal diameter 6/9/13 for tempering and cooling applications up to 15 bar. Coupling system with European profile. Available made of brass.

Available to order - usually dispatched within 1 week (Manufacturer Dependant)

SKU: 10VNXX12MXX Category:

Description

The 10VNXX12MXX is a Quick coupling system with nominal diameter 6/9/13 for tempering and cooling applications up to 15, supplied from UK stock by J&J Air Systems. It is rated to a maximum operating pressure of 15 bar and an operating temperature range of -15°C to 200°C.

Specification

  • Part number: 10VNXX12MXX
  • Maximum operating pressure: 15 bar
  • Operating temperature: -15°C to 200°C
  • Suitable for: drinking, treated water) | Coolants (Industrial coolants, Water (Industrial, water-glycol)
  • Applications: Industrial Machinery
  • Weight: 0.0503 kg

Need technical advice, availability or volume pricing? Call 0800 0278 442 or email [email protected].

About this range

Parker’s Quick Coupling Series 10/11/12 were especially developed for connecting coolant lines and injection molds. These series stands out for their convenient, single-handed operation and a reliable O-ring seal. Series 10/11/12 is widely used in Europe.
This coupling series is available in single shut-off, double shut-off or straight-through versions and is also available with SAFE-LOCK™-technology. The straight-through couplings are equipped with nickel plated sleeves for quick and accurate visual differentiation. The angular connections prevent kinks from forming in the hose.
Markets:
– Industrial
Features/Benefits:
– Single-hand operation for easy and fast connection
– SAFE-LOCK™-technology reliably prevents accidental uncoupling of the system under pressure
Applications:
– Mold cooling
– Cooling and tempering lines

Additional information

Weight 0.0503 kg
Body Material

Brass
Connection Size

11 mm
Connection Type

Tube (without thread)
Coupling Half

Plug
Diameter

6 mm (nominal)
Diameter Nominal (DN)

6
Flow Rate

16 L/min (water) | 0 L/min
Function

Straight-Through
Length

120 mm
Length (mm)

120
Operation Type

No Sleeve
Outside Diameter

9 mm
Product Series

Series 10
Product Style

Quick Connect
Seal Material

Without Seal
Sleeve Material

Without Sleeve
Special Option

No Special Option
Valve Included

No
Valve Type

Without Valve
Application

Industrial Machinery
Brand

Parker | Rectus
Compatible Fitting

Coupler
Division

Low Pressure Connectors Europe Division | Low Pressure Connectors Europe Division
For Fluid Type

drinking, treated water) | Coolants (Industrial coolants, Water (Industrial, water-glycol)
Hex Size

11 mm
Interchange Type

European Profile
Maximum Operating Pressure

15 bar | 218 psi
Maximum Operating Temperature

392 °F | 200 °C
Minimum Operating Temperature

5 °F | -15 °C
Plating Type

Without Surface Treatment
Quantity per Box

10.0
Region of Origin

Germany
Technology

Fluid & Gas Handling
Weight

0.0503 kg
