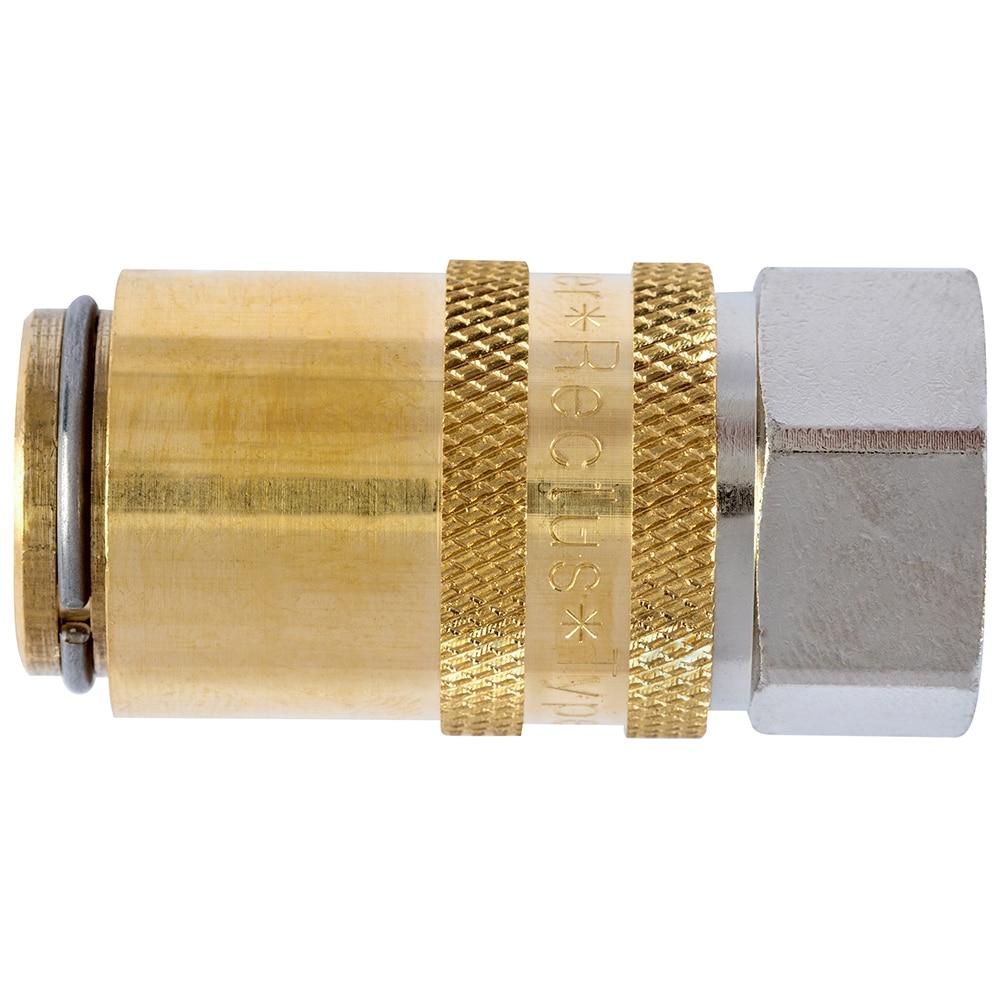

11KBIW13MVX — Quick coupling system with nominal diameter 6/9/13 for tempering and cooling applications up to 15 — G1/4

11KBIW13MVX — Quick coupling system with nominal diameter 6/9/13 for tempering and cooling applications up to 15 — G1/4

£19.50 exc. VAT; £23.40 inc. VAT

11KBIW13MVX — Quick coupling system with nominal diameter 6/9/13 for tempering and cooling applications up to 15 bar. Coupling system with European profile. Available made of brass.

Available to order - usually dispatched within 1 week (Manufacturer Dependant)

SKU: 11KBIW13MVX Category:

Description

The 11KBIW13MVX is a Quick coupling system with nominal diameter 6/9/13 for tempering and cooling applications up to 15 (G1/4), supplied from UK stock by J&J Air Systems. It is rated to a maximum operating pressure of 15 bar.

Specification

  • Part number: 11KBIW13MVX
  • Size / variant: G1/4
  • Maximum operating pressure: 15 bar
  • Suitable for: Coolants (Industrial coolants, drinking, treated water), water-glycol) | Water (Industrial
  • Applications: 21 mm
  • Weight: 0.089 kg

Need technical advice, availability or volume pricing? Call 0800 0278 442 or email [email protected].

About this range

Parker’s Quick Coupling Series 10/11/12 were especially developed for connecting coolant lines and injection molds. These series stands out for their convenient, single-handed operation and a reliable O-ring seal. Series 10/11/12 is widely used in Europe.
This coupling series is available in single shut-off, double shut-off or straight-through versions and is also available with SAFE-LOCK™-technology. The straight-through couplings are equipped with nickel plated sleeves for quick and accurate visual differentiation. The angular connections prevent kinks from forming in the hose.
Markets:
– Industrial
Features/Benefits:
– Single-hand operation for easy and fast connection
– SAFE-LOCK™-technology reliably prevents accidental uncoupling of the system under pressure
Applications:
– Mold cooling
– Cooling and tempering lines

Additional information

Weight 0.089 kg
Body Material

Brass
Connection Size

392 °F
Connection Type

Female | BSPP
Coupling Half

Coupler
Diameter

9 mm (nominal)
Diameter Nominal (DN)

9
Flow Rate

0 L/min | 15 L/min (water)
Function

Double Shut-Off
Length

46.5 mm
Length (mm)

46.5
Operation Type

Sleeve
Outside Diameter

23 mm
Product Series

Series 11
Product Style

Quick Connect
Seal Material

FKM
Sleeve Material

Brass
Special Option

10.0
Valve Included

Yes
Valve Type

Standard Valve
Application

21 mm
Brand

200 °C | G 1/4
Compatible Fitting

Plug
Division

Without Surface Treatment | Low Pressure Connectors Europe Division
For Fluid Type

Coolants (Industrial coolants, drinking, treated water), water-glycol) | Water (Industrial
Hex Size

Industrial Machinery
Interchange Type

European Profile
Maximum Operating Pressure

15 bar | 218 psi
Maximum Operating Temperature

Rectus | Parker
Minimum Operating Temperature

-15 °C | 5 °F
Plating Type

Low Pressure Connectors Europe Division
Quantity per Box

No Special Option
Region of Origin

Germany
Technology

Fluid & Gas Handling
Weight

0.089 kg
