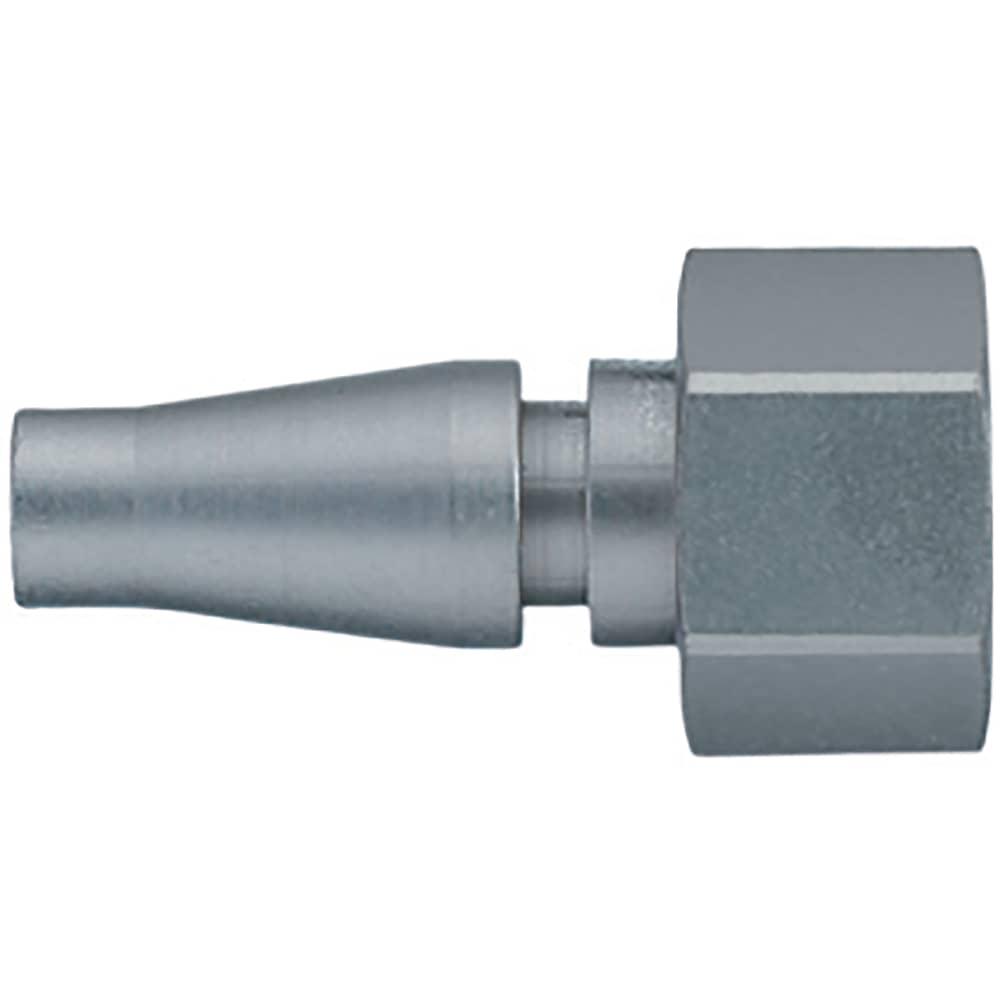

17SFIW10SXN — Quick couplings, British Profile, DN 5 (Series 17) — G1/8
17SFIW10SXN — Quick couplings, British Profile, DN 5 (Series 17) — G1/8 - Image 2

17SFIW10SXN — Quick couplings, British Profile, DN 5 (Series 17) — G1/8

£11.08 exc. VAT; £13.30 inc. VAT

17SFIW10SXN — Quick coupling system with nominal diameter 5 for pneumatic and fluid handling applications up to 35 bar. Coupling system with English profile. Available made of brass/steel.

Available to order - usually dispatched within 1 week (Manufacturer Dependant)

SKU: 17SFIW10SXN Category:

Description

The 17SFIW10SXN is a Quick couplings, British Profile, DN 5 (Series 17) (G1/8), supplied from UK stock by J&J Air Systems. It is rated to a maximum operating pressure of 35 bar and an operating temperature range of -20°C to 100°C.

Specification

  • Part number: 17SFIW10SXN
  • Size / variant: G1/8
  • Maximum operating pressure: 35 bar
  • Operating temperature: -20°C to 100°C
  • Suitable for: drinking, inert gases) | Chemicals (Paints, lubricants), lubricated air, solvents, treated water) | Air & Neutral Gases (Industrial compressed, Water (Industrial
  • Applications: Air compressors | Pneumatic Power Tools | Assembly Lines
  • Weight: 0.016 kg

Need technical advice, availability or volume pricing? Call 0800 0278 442 or email [email protected].

About this range

Parker’s Series 17 is a brass/steel industrial coupling with English profile specifically suited to compressed air applications in industry.
This coupling system is developed for single-hand operation. The UltraFlo valve guarantees optimum flow and low pressure drop. Series 17 is very versatile applicable due to its slim design and light weight.
Markets:
– Machinery Construction
– Automotive
Features/Benefits:
– UltraFlo valve for optimum flow and low pressure drop
– Single-hand operation for easy and fast connection
Applications:
– Pneumatic Power Tools
– Assembly Lines
– Air compressors

Additional information

Weight 0.0159 kg
Body Material

Steel
Connection Size

G 1/8
Connection Type

BSPP | Female
Coupling Half

Plug
Diameter

5 mm (nominal)
Flow Rate

11 L/min (water) | 890 L/min (air)
Function

Straight-Through
Length

33 mm
Operation Type

No Sleeve
Product Series

Series 17
Product Style

Quick Connect
Product Type

Pneumatic Quick Couplings
Seal Material

Without Seal
Sleeve Material

Without Sleeve
Valve Included

No
Valve Type

Without Valve
Application

Air compressors | Pneumatic Power Tools | Assembly Lines
Brand

Parker | Rectus
Compatible Fitting

Series 17 Coupler
Division

Low Pressure Connectors Europe Division | Low Pressure Connectors Europe Division
For Fluid Type

drinking, inert gases) | Chemicals (Paints, lubricants), lubricated air, solvents, treated water) | Air & Neutral Gases (Industrial compressed, Water (Industrial
Hex Size

14 mm
Industry

Machinery Construction | Automotive
Interchange Type

British Profile
Maximum Operating Pressure

508 psi | 35 bar
Maximum Operating Temperature

212 °F | 100 °C
Minimum Operating Temperature

-4 °F | -20 °C
Plating Type

Nickel-Plated
Quantity per Box

10
Region of Origin

Germany
Technology

Pneumatics | Fluid & Gas Handling
Weight

0.016 kg
