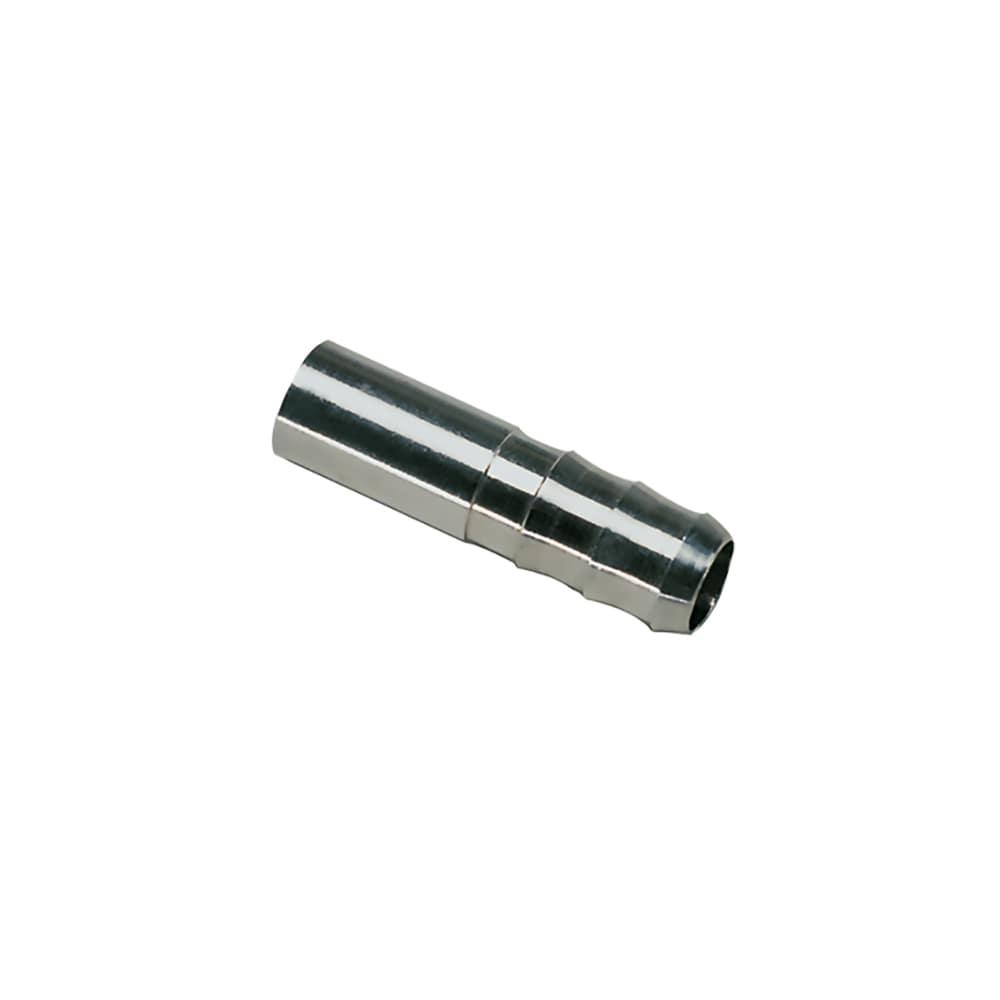

1822 08 06 — Stainless Steel Fittings Reducers, Olives and Nuts — na — 8mm, 6mm

£26.33 exc. VAT; £31.60 inc. VAT

1822 08 06 — This innovative reducer system, using a full range of nuts and olives, enables different diameters of stainless steel, fluoropolymer or polymer tubes to be fitted onto a single Parker Legris compression fitting.

Available on back-order

SKU: 1822 08 06 Category:

Description

This innovative reducer system, using a full range of nuts and olives, enables different diameters of stainless steel, fluoropolymer or polymer tubes to be fitted onto a single Parker Legris compression fitting. The use of a single fitting for multiple tube materials and sizes allows for improved stock management and reduces inventory costs.
Features/Benefits:
– Efficient Solution

• Reduces envelope dimensions
• Quick and easy to assemble, whatever the diameters and tube material
• Improved stock management
• Silicone-free
– Multiple Combinations

• A single connector for up to 3 different tube materials and sizes.
example:
Advanced PE tubing 6 mm O.D.
stainless steel tubing 8 mm O.D.
fluoropolymer tubing 12 mm O.D. or braided PVC hose 10 mm I.D.
• A full range of olives and nuts to optimise all assembly operations
Markets:
• Food and Beverage
• Vehicle Assembly Facilities
• Miscellaneous Manufacturing
• Oil and Gas
• Industrial Chemical Processing
Applications:
• Pneumatic Machinery Equipment at Medium and High Pressure
• Suitable for Corrosive Industrial Fluids
Technologies:
• Compression fittings
• Connects to stainless steel tube
• Connects to fluoropolymer tube
• Connects to polymer tube
• Stainless steel reducer
• Pneumatic fittings
Regulations:
• DI: 2002/95/EC (RoHS), 2011/65/EC
• DI: 97/23/EC (PED)
• RG: 1935/2004
• RG: 1907/2006 (REACH)
• DI: 94/09/EC (ATEX)
• FDA: 21 CFR 177.1550
• NACE MR0175: compatible materials
• ISO 15156-1/-2/-3: compatible materials
Product Types:
• 3-Piece Reducer
• Stainless Steel Olive
• Stainless Steel Nut
• Barb Adaptor for Hose
• Stainless Steel Tube Support

Additional information

Weight 0.007 kg
Connection 1 Thread Size (metric)

na
Connection 1 Thread Style

na
Connection 2 Tube O.D. (mm)

na
Connection 3 Tube O.D. (mm)

8
Connection 4 Tube O.D. (mm)

6
Application

Automotive Process, Chemical, Cooling & Heating, Fluid Transmission, Food Process, Offshore Oil & Gas, Petrochemical, Pneumatics
Division

Low Pressure Connectors Europe Division
Maximum Operating Pressure

80 barg
Maximum Operating Temperature

250 °C
Media

Many fluids
Minimum Operating Temperature

-40 °C
Quantity per Box

2
Specifications Met

2011/65/EC, DI: 2002/95/EC (RoHS), DI: 94/09/EC (ATEX), DI: 97/23/EC (PED), FDA: 21 CFR 177.1550, ISO 15156-1/-2/-3: compatible materials, NACE MR0175: compatible materials, RG: 1907/2006 (REACH), RG: 1935/2004
Weight

0.007 kg
