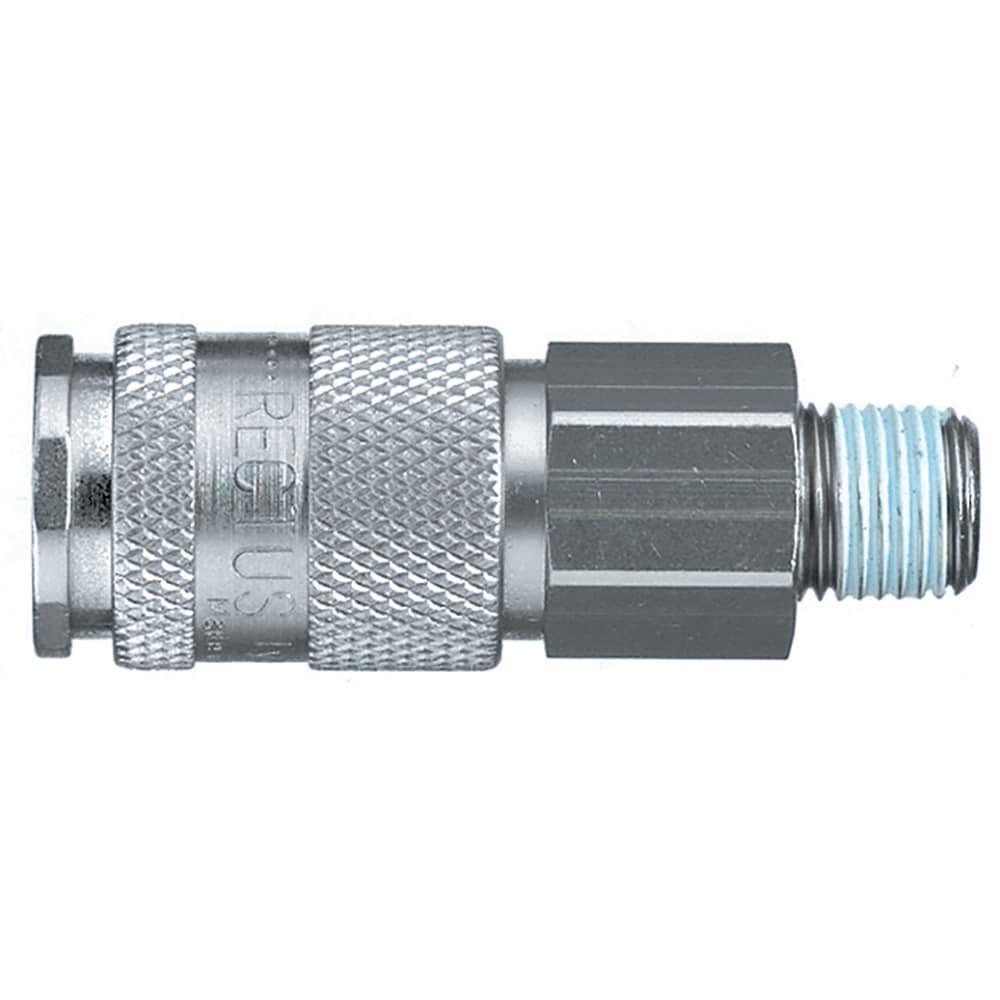

18KAAK13MPN — Quick Coupling, ISO C profile, ND 5.5 (Series 18) — R1/4

Name: J&J Air Systems
Price range: $$

£22.84 exc. VAT; £27.41 inc. VAT

18KAAK13MPN — Quick connection system with a nominal diameter of 5.5 mm for pneumatic applications. Standard version up to 35 bar.

Available to order - usually dispatched within 1 week (Manufacturer Dependant)

SKU: 18KAAK13MPN Category: General Spares

Description
Additional information

Description

The 18KAAK13MPN is a Quick Coupling, ISO C profile, ND 5.5 (Series 18) (R1/4), supplied from UK stock by J&J Air Systems. It is rated to a maximum operating pressure of 35 bar and an operating temperature range of -20°C to 100°C.

Specification

Part number: 18KAAK13MPN
Size / variant: R1/4
Maximum operating pressure: 35 bar
Operating temperature: -20°C to 100°C
Suitable for: Air & Neutral Gases (Industrial compressed, drinking, inert gases) | Water (Industrial, lubricated air, treated water)
Applications: Air Compressors | Pneumatic Power Tools | General Industrial | Transportation | In Plant Pneumatic | Assembly Lines
Weight: 0.1106 kg

Need technical advice, availability or volume pricing? Call 0800 0278 442 or email [email protected].

About this range

The Parker Rectus Series 18 is a range of industrial couplers compliant with ISO C standards. Their connection system is designed for one-handed operation.
The standard version features an Ultra-Flow valve that ensures optimal flow and low pressure drop.
Markets:
– General Industrial
-Transportation
Features/Benefits:
– UltraFlo valve for optimum flow and low pressure drop
– Single-hand operation for easy and fast connection
– Coupling system according to ISO C standard

Additional information

Weight	0.1106 kg
Body Material	Brass
Connection Size	R 1/4
Connection Type	Male \| BSPT
Coupling Half	Coupler
Diameter	5.5 mm (nominal)
Flow Rate	12.7 L/min (water) \| 970 L/min (air)
Function	Single Shut-Off
Length	n/a mm
Operation Type	Sleeve
Outside Diameter	23 mm
Product Series	Series 18
Product Style	Quick Connect
Product Type	Pneumatic Quick Couplings
Seal Material	NBR
Sleeve Material	Steel
Valve Included	Yes
Valve Type	High Flow Valve
Application	Air Compressors \| Pneumatic Power Tools \| General Industrial \| Transportation \| In Plant Pneumatic \| Assembly Lines
Brand	Rectus \| Parker
Compatible Fitting	Series 18 Plug
Division	Low Pressure Connectors Europe Division \| Low Pressure Connectors Europe Division
For Fluid Type	Air & Neutral Gases (Industrial compressed, drinking, inert gases) \| Water (Industrial, lubricated air, treated water)
Hex Size	19 mm
Industry	Industrial equipment manufacturing\|Transportation
Interchange Type	ISO C Profile
Maximum Operating Pressure	35 bar \| 508 psi
Maximum Operating Temperature	100 °C \| 212 °F
Minimum Operating Temperature	-4 °F \| -20 °C
Plating Type	Nickel-Plated
Quantity per Box	10.0
Region of Origin	Germany
Technology	Fluid & Gas Handling \| Pneumatics
Weight	0.1106 kg
