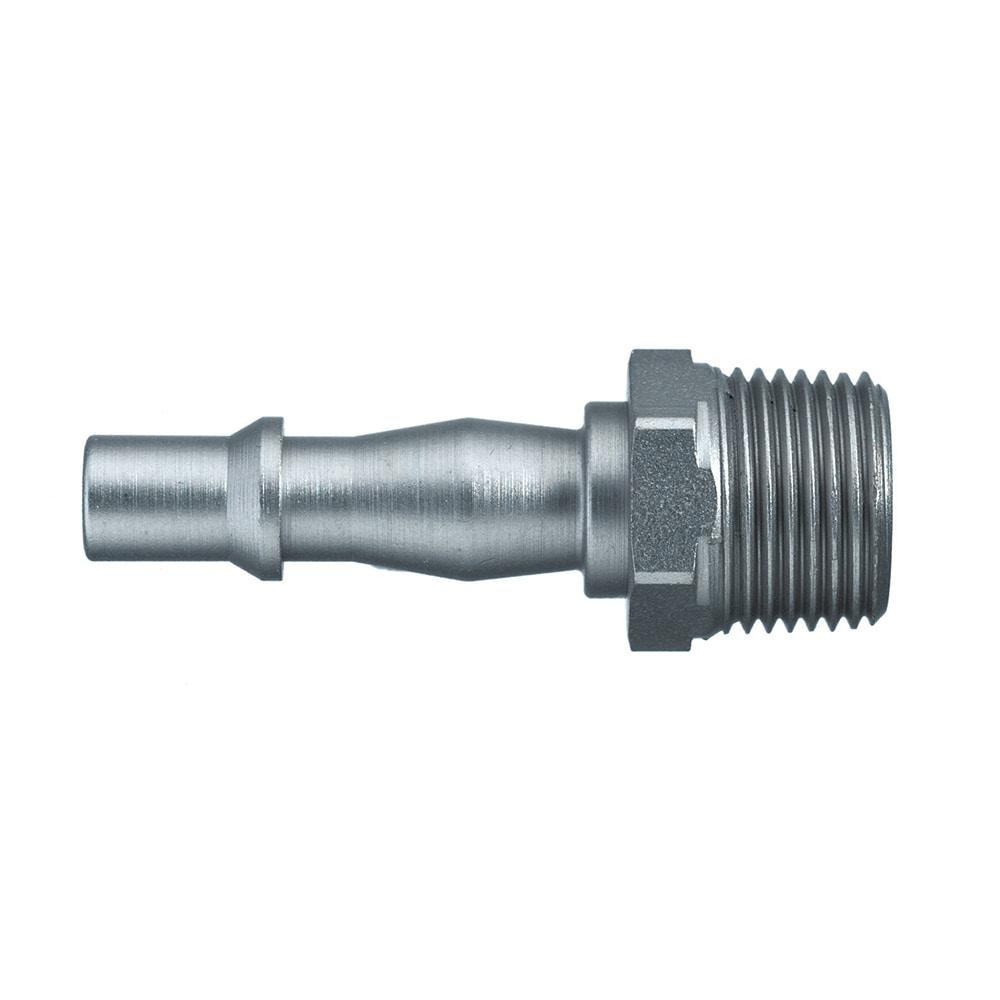

19SFAK13SXN — Quick couplings, British Profile, DN 5.5 (Series 19) — R1/4
£5.19 exc. VAT; £6.23 inc. VAT
19SFAK13SXN — Premium quick coupling with nominal diameter 5.5 for pneumatic and fluid handling applications up to 35 bar. Coupling system with English industrial profile. Available made of brass/steel.
Available to order - usually dispatched within 1 week (Manufacturer Dependant)
Description
Parker’s coupling system with UltraFlo valve for optimum flow and low pressure drop. This quick coupling with an English industrial profile is easy to use and due to the single-hand operation easy and fast connection is possible. Robust coupling in slim design mainly for pneumatic applications. The steel sleeve counters oscillating forces. The high insertion depth is guaranteed by an optimised plug guide.
Markets:
– Machinery Construction
– Industrial
Features/Benefits:
– UltraFlo valve for optimum flow and low pressure drop
– Steel sleeve counters oscillating forces
– Single-hand operation for easy and fast connection
Applications:
– Pneumatic Power Tools
– Assembly Lines
– Air compressors
Additional information
| Weight | 0.0218 kg |
|---|---|
| Body Material | Steel |
| Connection Size | R 1/4 |
| Connection Type | BSPT | Male |
| Coupling Half | Plug |
| Diameter | 5.5 mm (nominal) |
| Flow Rate | 850 L/min (air) | 12 L/min (water) |
| Function | Straight-Through |
| Length | 50 mm |
| Operation Type | No Sleeve |
| Product Series | Series 19 |
| Product Style | Quick Connect |
| Product Type | Pneumatic Quick Couplings |
| Seal Material | Without Seal |
| Sleeve Material | Without Sleeve |
| Valve Included | No |
| Valve Type | Without Valve |
| Application | Pneumatic Power Tools | Air compressors | Assembly Lines |
| Brand | Rectus | Parker |
| Compatible Fitting | Series 19 Coupler |
| Division | Low Pressure Connectors Europe Division | Low Pressure Connectors Europe Division |
| For Fluid Type | Air & Neutral Gases (Industrial compressed, drinking, inert gases) | Water (Industrial, lubricants), lubricated air, solvents, treated water) | Chemicals (Paints |
| Hex Size | 14 mm |
| Industry | Machinery Construction | Industrial |
| Interchange Type | British Profile |
| Maximum Operating Pressure | 508 psi | 35 bar |
| Maximum Operating Temperature | 464 °F | 100 °C |
| Minimum Operating Temperature | -40 °F | -20 °C |
| Plating Type | Nickel-Plated |
| Quantity per Box | 10 |
| Region of Origin | Germany |
| Technology | Pneumatics | Fluid & Gas Handling |
| Weight | 0.022 kg |
