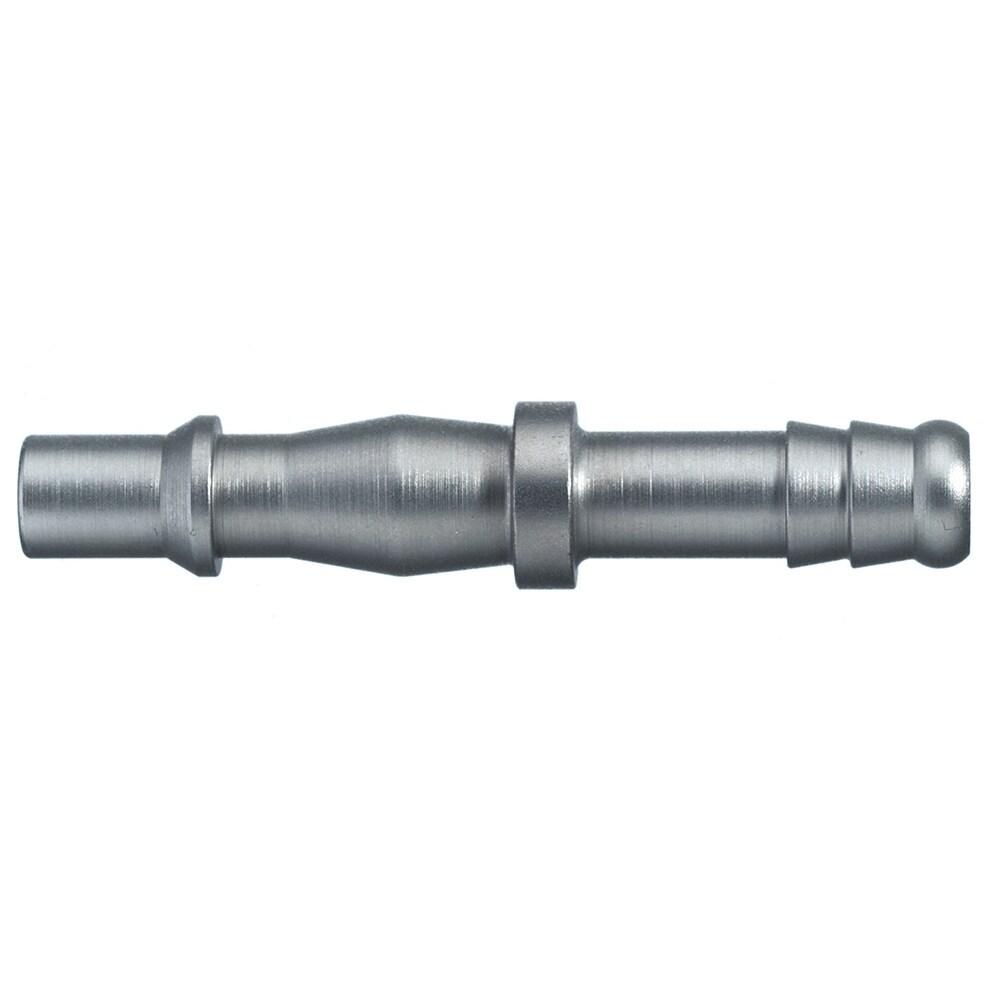

19SFTF10SXN — Quick couplings, British Profile, DN 5.5 (Series 19) — 10mm

19SFTF10SXN — Quick couplings, British Profile, DN 5.5 (Series 19) — 10mm

£11.75 exc. VAT; £14.10 inc. VAT

19SFTF10SXN — Premium quick coupling with nominal diameter 5.5 for pneumatic and fluid handling applications up to 35 bar. Coupling system with English industrial profile. Available made of brass/steel.

Available to order - usually dispatched within 1 week (Manufacturer Dependant)

SKU: 19SFTF10SXN Category:

Description

The 19SFTF10SXN is a Quick couplings, British Profile, DN 5.5 (Series 19) (10mm), supplied from UK stock by J&J Air Systems. It is rated to a maximum operating pressure of 35 bar and an operating temperature range of -40°C to 240°C.

Specification

  • Part number: 19SFTF10SXN
  • Size / variant: 10mm
  • Maximum operating pressure: 35 bar
  • Operating temperature: -40°C to 240°C
  • Suitable for: Chemicals (Paints, drinking, inert gases) | Water (Industrial, lubricants) | Air & Neutral Gases (Industrial compressed, lubricated air, solvents, treated water)
  • Applications: Air compressors | Pneumatic Power Tools | Assembly Lines
  • Weight: 0.02 kg

Need technical advice, availability or volume pricing? Call 0800 0278 442 or email [email protected].

About this range

Parker’s coupling system with UltraFlo valve for optimum flow and low pressure drop. This quick coupling with an English industrial profile is easy to use and due to the single-hand operation easy and fast connection is possible. Robust coupling in slim design mainly for pneumatic applications. The steel sleeve counters oscillating forces. The high insertion depth is guaranteed by an optimised plug guide.
Markets:
– Machinery Construction
– Industrial
Features/Benefits:
– UltraFlo valve for optimum flow and low pressure drop
– Steel sleeve counters oscillating forces
– Single-hand operation for easy and fast connection
Applications:
– Pneumatic Power Tools
– Assembly Lines
– Air compressors

Additional information

Weight 0.0197 kg
Body Material

Steel
Connection Size

10 mm
Connection Type

Hose Barb
Coupling Half

Plug
Diameter

5.5 mm (nominal)
Flow Rate

12 L/min (water) | 850 L/min (air)
Function

Straight-Through
Length

60 mm
Operation Type

No Sleeve
Outside Diameter

12 mm
Product Series

Series 19
Product Style

Quick Connect
Product Type

Pneumatic Quick Couplings
Seal Material

Without Seal
Sleeve Material

Without Sleeve
Valve Included

No
Valve Type

Without Valve
Application

Air compressors | Pneumatic Power Tools | Assembly Lines
Brand

Parker | Rectus
Compatible Fitting

Series 19 Coupler
Division

Low Pressure Connectors Europe Division | Low Pressure Connectors Europe Division
For Fluid Type

Chemicals (Paints, drinking, inert gases) | Water (Industrial, lubricants) | Air & Neutral Gases (Industrial compressed, lubricated air, solvents, treated water)
Industry

Industrial | Machinery Construction
Interchange Type

British Profile
Maximum Operating Pressure

35 bar | 508 psi
Maximum Operating Temperature

240 °C | 464 °F
Minimum Operating Temperature

-40 °F | -40 °C
Plating Type

Nickel-Plated
Quantity per Box

10
Region of Origin

Germany
Technology

Pneumatics | Fluid & Gas Handling
Weight

0.02 kg
