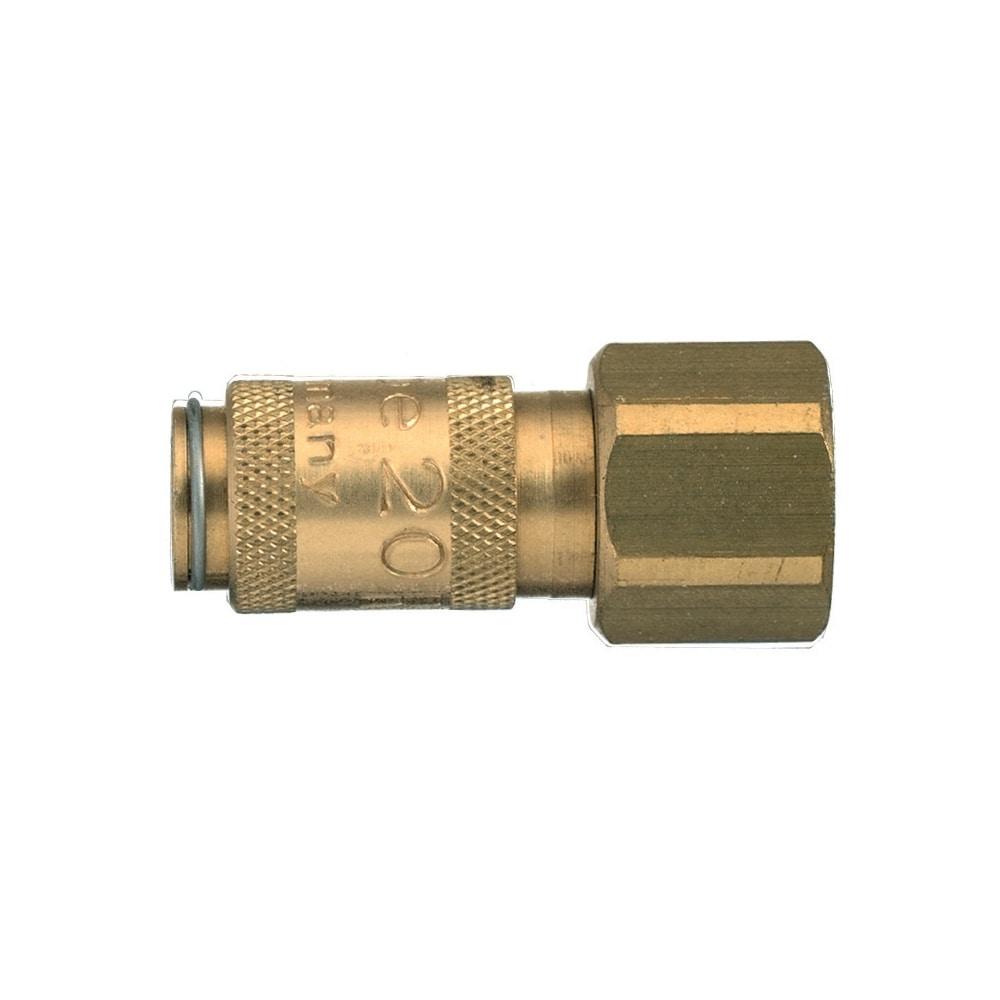

20KAIM05MEN — Quick Coupling, European Profile, ND 2.7 (Series 20) — M5
20KAIM05MEN — Quick Coupling, European Profile, ND 2.7 (Series 20) — M5 - Image 2

20KAIM05MEN — Quick Coupling, European Profile, ND 2.7 (Series 20) — M5

£15.02 exc. VAT; £18.02 inc. VAT

20KAIM05MEN — Quick coupling system with nominal diameter 2.7 for pneumatic, liquids and gas applications up to 35 bar. Available in nickel-plated brass or stainless steel.

Available to order - usually dispatched within 1 week (Manufacturer Dependant)

SKU: 20KAIM05MEN Category:

Description

The 20KAIM05MEN is a Quick Coupling, European Profile, ND 2.7 (Series 20) (M5), supplied from UK stock by J&J Air Systems. It is rated to a maximum operating pressure of 35 bar and an operating temperature range of -40°C to 150°C.

Specification

  • Part number: 20KAIM05MEN
  • Size / variant: M5
  • Maximum operating pressure: 35 bar
  • Operating temperature: -40°C to 150°C
  • Suitable for: Chemicals (Paints, drinking, inert gases) | Water (Industrial, lubricants) | Air & Neutral Gases (Industrial compressed, lubricated air, solvents, treated water)
  • Applications: Industrial Machinery | Textile Machinery | Medical | Energy Management | Pharma | Electronics | Trucks & Trailers | Food & Beverages
  • Weight: 0.0095 kg

Need technical advice, availability or volume pricing? Call 0800 0278 442 or email [email protected].

About this range

Parker’s Series 20 is a mini-industrial coupling with European profile. Coupling system with single-hand operation. High flow rate despite small dimensions.
Markets:
– Industrial
– Life Sciences
– Medical technology
– Chemistry pharmacybr/>- Electronics and energy management
– Transportation
– Machinery construction
– Automotive
– Process
Features/Benefits:
– Mini Industrial coupling
– Single hand operation for easy and fast connection
– European profile is the most representative profile worldwide

Additional information

Weight 0.0095 kg
Body Material

Brass
Connection Size

M5
Connection Type

Female | Metric DIN 13
Coupling Half

Coupler
Diameter

2.7 mm (nominal)
Flow Rate

165 L/min (air) | 1.5 L/min (water)
Function

Single Shut-Off
Length

26 mm
Operation Type

Sleeve
Product Series

Series 20
Product Style

Quick Connect
Product Type

Pneumatic Quick Couplings
Seal Material

EPDM
Sleeve Material

Brass
Valve Included

Yes
Valve Type

Standard Valve
Application

Industrial Machinery | Textile Machinery | Medical | Energy Management | Pharma | Electronics | Trucks & Trailers | Food & Beverages
Brand

Parker | Rectus
Compatible Fitting

Series 20 Plug
Division

Low Pressure Connectors Europe Division | Low Pressure Connectors Europe Division
For Fluid Type

Chemicals (Paints, drinking, inert gases) | Water (Industrial, lubricants) | Air & Neutral Gases (Industrial compressed, lubricated air, solvents, treated water)
Hex Size

9 mm (external)
Industry

Healthcare & Life Sciences | General Industrial | Electronics | Transportation
Interchange Type

European Profile
Maximum Operating Pressure

507 psi | 35 bar
Maximum Operating Temperature

302 °F | 150 °C
Minimum Operating Temperature

-40 °F | -40 °C
Plating Type

Nickel-Plated
Quantity per Box

10.0
Region of Origin

Germany
Technology

Pneumatics | Fluid & Gas Handling
Weight

0.0095 kg
