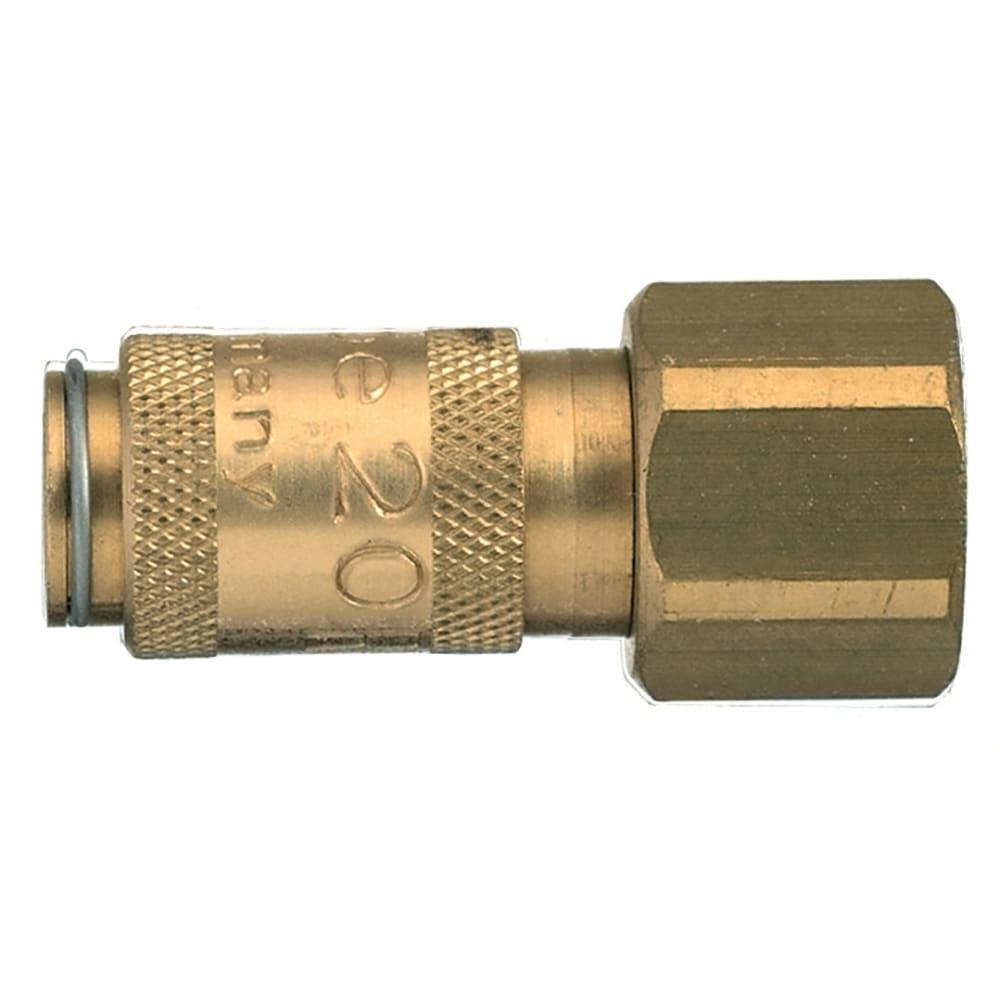

20KAIW10MPN — Quick Coupling, European Profile, ND 2.7 (Series 20) — G1/8
20KAIW10MPN — Quick Coupling, European Profile, ND 2.7 (Series 20) — G1/8 - Image 2

20KAIW10MPN — Quick Coupling, European Profile, ND 2.7 (Series 20) — G1/8

£12.53 exc. VAT; £15.04 inc. VAT

20KAIW10MPN — Quick coupling system with nominal diameter 2.7 for pneumatic, liquids and gas applications up to 35 bar. Available in nickel-plated brass or stainless steel.

Available to order - usually dispatched within 1 week (Manufacturer Dependant)

SKU: 20KAIW10MPN Category:

Description

The 20KAIW10MPN is a Quick Coupling, European Profile, ND 2.7 (Series 20) (G1/8), supplied from UK stock by J&J Air Systems. It is rated to a maximum operating pressure of 35 bar and an operating temperature range of -20°C to 100°C.

Specification

  • Part number: 20KAIW10MPN
  • Size / variant: G1/8
  • Maximum operating pressure: 35 bar
  • Operating temperature: -20°C to 100°C
  • Suitable for: Air & Neutral Gases (Industrial compressed, drinking, inert gases) | Water (Industrial, lubricated air, treated water)
  • Applications: Industrial Machinery | Food & Beverages | Medical | Electronics | Pharma | Energy Management | Textile Machinery | Trucks & Trailers
  • Weight: 0.012 kg

Need technical advice, availability or volume pricing? Call 0800 0278 442 or email [email protected].

About this range

Parker’s Series 20 is a mini-industrial coupling with European profile. Coupling system with single-hand operation. High flow rate despite small dimensions.
Markets:
– Industrial
– Life Sciences
– Medical technology
– Chemistry pharmacybr/>- Electronics and energy management
– Transportation
– Machinery construction
– Automotive
– Process
Features/Benefits:
– Mini Industrial coupling
– Single hand operation for easy and fast connection
– European profile is the most representative profile worldwide

Additional information

Weight 0.012 kg
Body Material

Brass
Connection Size

G 1/8
Connection Type

Female | BSPP
Coupling Half

Coupler
Diameter

2.7 mm (nominal)
Flow Rate

165 L/min (air) | 1.5 L/min (water)
Function

Single Shut-Off
Length

28 mm
Operation Type

Sleeve
Product Series

Series 20
Product Style

Quick Connect
Product Type

Pneumatic Quick Couplings
Seal Material

NBR
Sleeve Material

Brass
Valve Included

Yes
Valve Type

Standard Valve
Application

Industrial Machinery | Food & Beverages | Medical | Electronics | Pharma | Energy Management | Textile Machinery | Trucks & Trailers
Brand

Rectus | Parker
Compatible Fitting

Series 20 Plug
Division

Low Pressure Connectors Europe Division | Low Pressure Connectors Europe Division
For Fluid Type

Air & Neutral Gases (Industrial compressed, drinking, inert gases) | Water (Industrial, lubricated air, treated water)
Hex Size

12 mm (external)
Industry

Electronics | Transportation | General Industrial | Healthcare & Life Sciences
Interchange Type

European Profile
Maximum Operating Pressure

35 bar | 507 psi
Maximum Operating Temperature

212 °F | 100 °C
Minimum Operating Temperature

-20 °C | -4 °F
Plating Type

Nickel-Plated
Quantity per Box

10.0
Region of Origin

Germany
Technology

Fluid & Gas Handling | Pneumatics
Weight

0.012 kg
