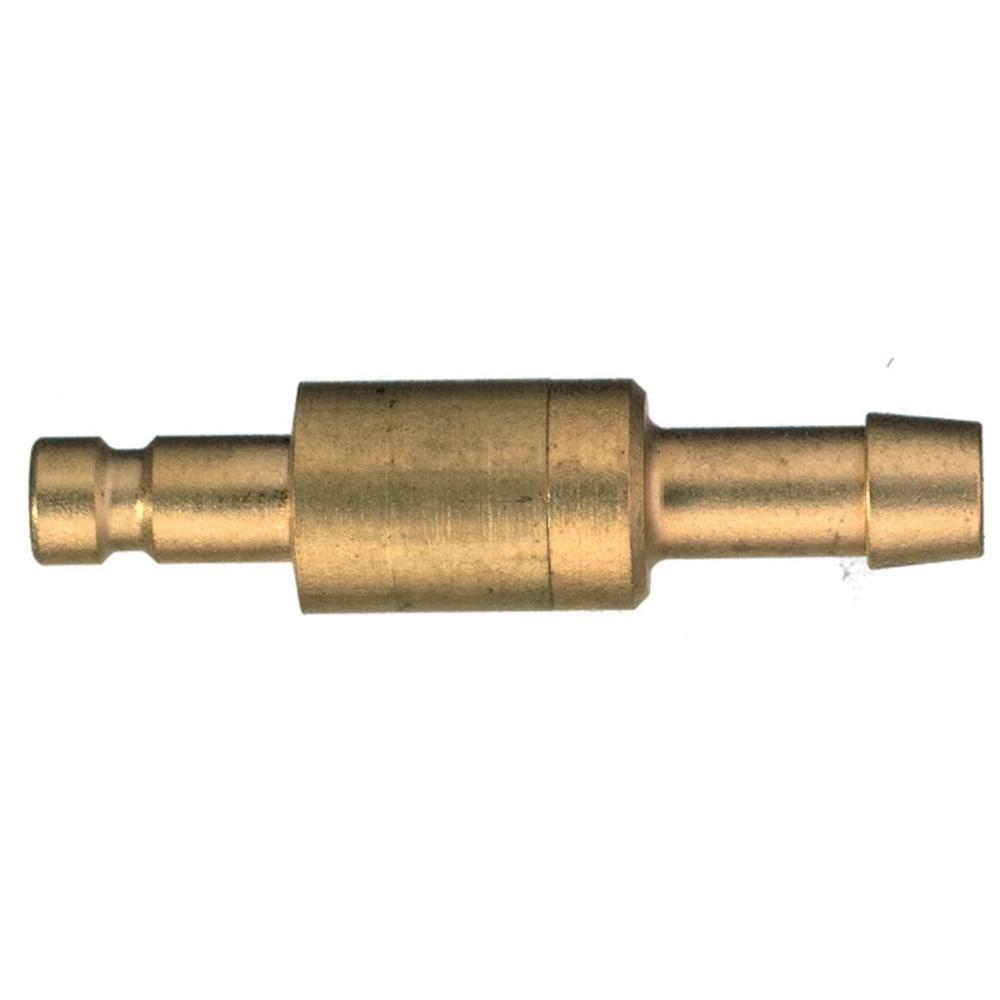

20SBTF04MED — Quick Coupling, European Profile, ND 2.7 (Series 20) — 4mm
20SBTF04MED — Quick Coupling, European Profile, ND 2.7 (Series 20) — 4mm - Image 2

20SBTF04MED — Quick Coupling, European Profile, ND 2.7 (Series 20) — 4mm

£23.54 exc. VAT; £28.25 inc. VAT

20SBTF04MED — Quick coupling system with nominal diameter 2.7 for pneumatic, liquids and gas applications up to 35 bar. Available in nickel-plated brass or stainless steel.

Available to order - usually dispatched within 1 week (Manufacturer Dependant)

SKU: 20SBTF04MED Category:

Description

The 20SBTF04MED is a Quick Coupling, European Profile, ND 2.7 (Series 20) (4mm), supplied from UK stock by J&J Air Systems. It is rated to a maximum operating pressure of 35 bar and an operating temperature range of -40°C to 150°C.

Specification

  • Part number: 20SBTF04MED
  • Size / variant: 4mm
  • Maximum operating pressure: 35 bar
  • Operating temperature: -40°C to 150°C
  • Suitable for: Air & Neutral Gases (Industrial compressed, drinking, inert gases) | Water (Industrial, lubricated air, treated water)
  • Applications: Medical | Industrial Machinery | Energy Management | Pharma | Food & Beverages | Electronics
  • Weight: 0.0069 kg

Need technical advice, availability or volume pricing? Call 0800 0278 442 or email [email protected].

About this range

Parker’s Series 20 is a mini-industrial coupling with European profile. Coupling system with single-hand operation. High flow rate despite small dimensions.
Markets:
– Industrial
– Life Sciences
– Medical technology
– Chemistry pharmacybr/>- Electronics and energy management
– Transportation
– Machinery construction
– Automotive
– Process
Features/Benefits:
– Mini Industrial coupling
– Single hand operation for easy and fast connection
– European profile is the most representative profile worldwide

Additional information

Weight 0.0069 kg
Body Material

Brass
Connection Size

4 mm
Connection Type

Hose Barb
Coupling Half

Plug
Diameter

2.7 mm (nominal)
Flow Rate

130 L/min (air) | 1.2 L/min (water)
Function

Double Shut-Off
Length

17 to 52.5 mm
Operation Type

No Sleeve
Product Series

Series 20
Product Style

Quick Connect
Product Type

Pneumatic Quick Couplings
Seal Material

EPDM
Sleeve Material

Without Sleeve
Valve Included

Yes
Valve Type

Standard Valve
Application

Medical | Industrial Machinery | Energy Management | Pharma | Food & Beverages | Electronics
Brand

Rectus | Parker
Compatible Fitting

Series 20 Coupler
Division

Low Pressure Connectors Europe Division | Low Pressure Connectors Europe Division
For Fluid Type

Air & Neutral Gases (Industrial compressed, drinking, inert gases) | Water (Industrial, lubricated air, treated water)
Hex Size

8 mm
Industry

General Industrial | Healthcare & Life Sciences
Interchange Type

European Profile
Maximum Operating Pressure

35 bar | 507 psi
Maximum Operating Temperature

302 °F | 150 °C
Minimum Operating Temperature

-40 °F | -40 °C
Plating Type

Durnicoated-Plated
Quantity per Box

10.0
Region of Origin

Germany
Technology

Fluid & Gas Handling | Pneumatics
Weight

0.0069 kg
