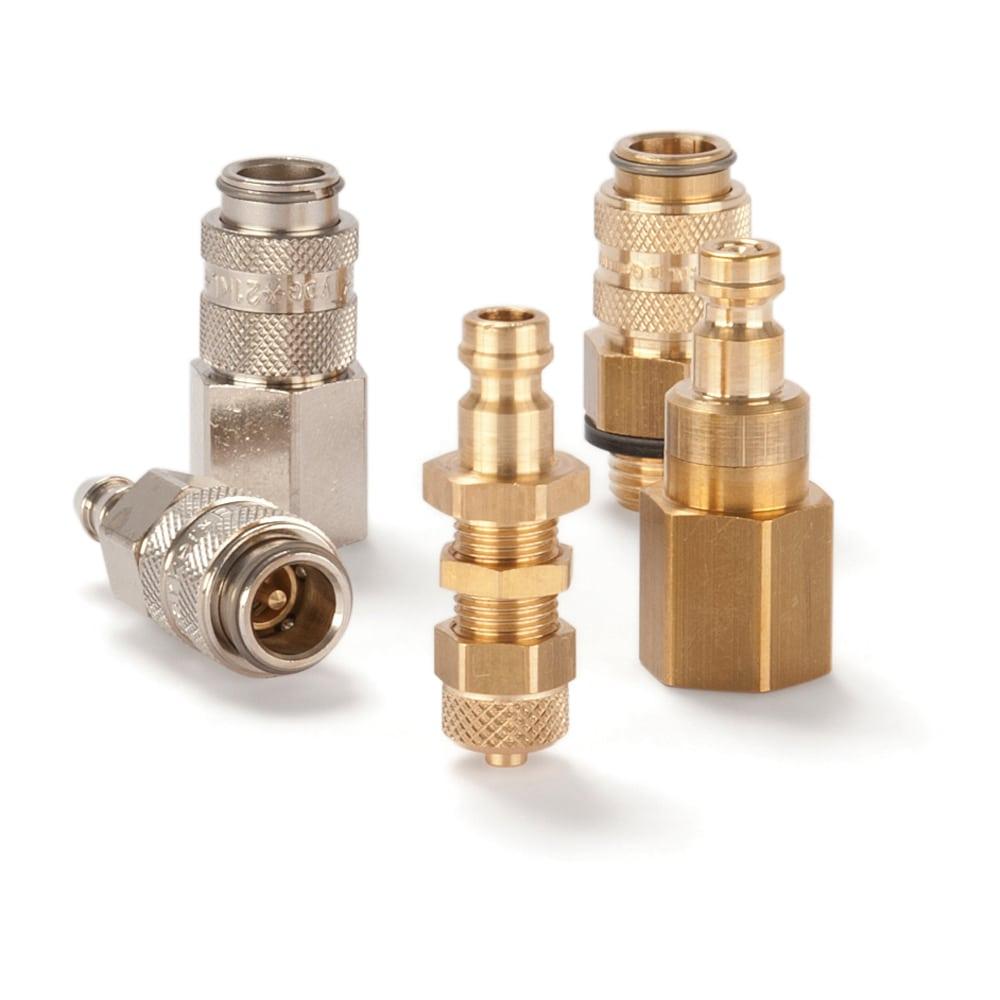

21KAAN13RVX — Quick Coupling, European profile, ND 5 (Series 21) — Straight — NPT1/4
21KAAN13RVX — Quick Coupling, European profile, ND 5 (Series 21) — Straight — NPT1/4 - Image 2

21KAAN13RVX — Quick Coupling, European profile, ND 5 (Series 21) — Straight — NPT1/4

£62.21 exc. VAT; £74.65 inc. VAT

21KAAN13RVX — Quick coupling system with nominal diameter 5 for pneumatic, liquids and gas applications up to 35 bar. Available in brass, nickel-plated brass, or stainless steel.

Available to order - usually dispatched within 1 week (Manufacturer Dependant)

SKU: 21KAAN13RVX Category:

Description

The 21KAAN13RVX is a Quick Coupling, European profile, ND 5 (Series 21) (Straight, NPT1/4), supplied from UK stock by J&J Air Systems. It is rated to a maximum operating pressure of 35 bar and an operating temperature range of -15°C to 200°C.

Specification

  • Part number: 21KAAN13RVX
  • Size / variant: Straight, NPT1/4
  • Maximum operating pressure: 35 bar
  • Operating temperature: -15°C to 200°C
  • Suitable for: Chemicals (Paints, drinking, inert gases) | Water (Industrial, lubricants) | Air & Neutral Gases (Industrial compressed, lubricated air, solvents, treated water)
  • Applications: Energy Management | Medical | Food & Beverages | Trucks & Trailers | Industrial Machinery | Electronics | Pharma | Air & Gas Compressor | Safety & Rescue | Textile Machinery
  • Weight: 0.031 kg

Need technical advice, availability or volume pricing? Call 0800 0278 442 or email [email protected].

About this range

Parker’s Series 21 is a mini-industrial coupling with European profile. Coupling system with single-hand operation. Above average flow performance for liquid and gaseous media.
Markets:
– Industrial
– Electronics and energy management
– Rescue Equipment
– Life Science
– Machinery construction
– Material Handling
– Transportation
– Automotive
– Process
– Food & Beverage
Features/Benefits:
– Mini Industrial Coupling
– Single-hand operation for easy and fast connection
– European profile is the most representative profile worldwide
– Dry-break version available
– Additional safety locking system available to prevent unintentional disconnection

Additional information

Weight 0.031 kg
Body Material

Stainless Steel 303
Connection Size

NPT 1/4
Connection Type

Male | NPT
Coupling Half

Coupler
Diameter

5 mm (nominal)
Flow Rate

7 L/min (water) | 550 L/min (air)
Function

Single Shut-Off
Operation Type

Sleeve
Product Series

Series 21
Product Style

Quick-Connect
Product Type

Pneumatic Quick Couplings
Seal Material

FKM
Shape

Straight
Sleeve Material

Stainless Steel 303
Valve Included

Yes
Valve Type

Standard Valve
Application

Energy Management | Medical | Food & Beverages | Trucks & Trailers | Industrial Machinery | Electronics | Pharma | Air & Gas Compressor | Safety & Rescue | Textile Machinery
Brand

Rectus | Parker
Compatible Fitting

Series 21 Plug
Division

Low Pressure Connectors Europe Division | Low Pressure Connectors Europe Division
For Fluid Type

Chemicals (Paints, drinking, inert gases) | Water (Industrial, lubricants) | Air & Neutral Gases (Industrial compressed, lubricated air, solvents, treated water)
Industry

Transportation | General Industrial | Healthcare & Life Sciences | Electronics
Interchange Type

European Profile
Maximum Operating Pressure

507 psi | 35 bar
Maximum Operating Temperature

392 °F | 200 °C
Minimum Operating Temperature

-15 °C | 5 °F
Plating Type

Without Surface Treatment
Quantity per Box

2
Region of Origin

Germany
Technology

Pneumatics | Fluid & Gas Handling
Weight

0.031 kg
