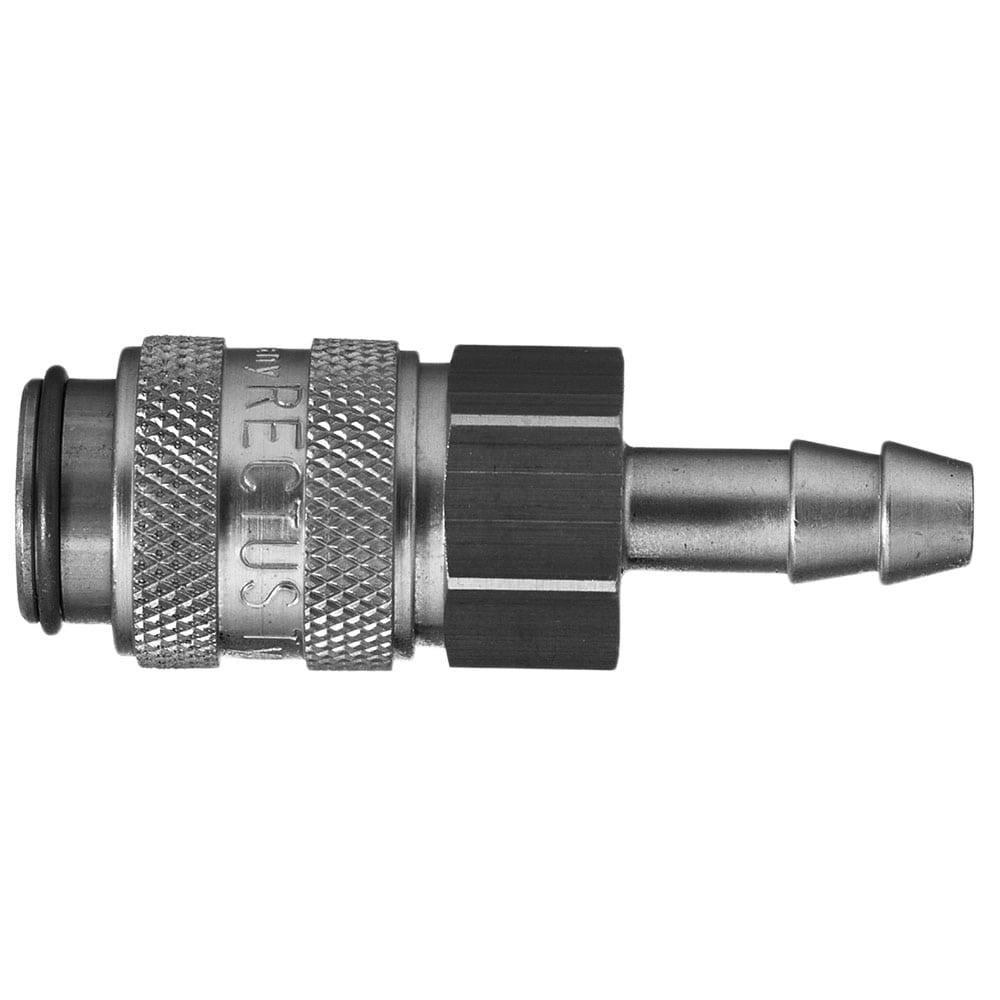

21KBTF08REX — Quick Coupling, European profile, ND 5 (Series 21) — Straight — 8mm
21KBTF08REX — Quick Coupling, European profile, ND 5 (Series 21) — Straight — 8mm - Image 2

21KBTF08REX — Quick Coupling, European profile, ND 5 (Series 21) — Straight — 8mm

£63.48 exc. VAT; £76.18 inc. VAT

21KBTF08REX — Quick coupling system with nominal diameter 5 for pneumatic, liquids and gas applications up to 35 bar. Available in brass, nickel-plated brass, or stainless steel.

Available to order - usually dispatched within 1 week (Manufacturer Dependant)

SKU: 21KBTF08REX Category:

Description

The 21KBTF08REX is a Quick Coupling, European profile, ND 5 (Series 21) (Straight, 8mm), supplied from UK stock by J&J Air Systems. It is rated to a maximum operating pressure of 35 bar and an operating temperature range of -40°C to 150°C.

Specification

  • Part number: 21KBTF08REX
  • Size / variant: Straight, 8mm
  • Maximum operating pressure: 35 bar
  • Operating temperature: -40°C to 150°C
  • Suitable for: Air & Neutral Gases (Industrial compressed, drinking, inert gases) | Coolants (Industrial coolants, lubricants) | Water (Industrial, lubricated air, solvents, treated water), water-glycol) | Chemicals (Paints
  • Applications: Laboratory | Trucks & Trailers | In-Plant Automotive | Diagnostics | Energy Management | Electronics | Industrial Machinery | Food & Beverages | Pharma
  • Weight: 0.026 kg

Need technical advice, availability or volume pricing? Call 0800 0278 442 or email [email protected].

About this range

Parker’s Series 21 is a mini-industrial coupling with European profile. Coupling system with single-hand operation. Above average flow performance for liquid and gaseous media.
Markets:
– Industrial
– Electronics and energy management
– Rescue Equipment
– Life Science
– Machinery construction
– Material Handling
– Transportation
– Automotive
– Process
– Food & Beverage
Features/Benefits:
– Mini Industrial Coupling
– Single-hand operation for easy and fast connection
– European profile is the most representative profile worldwide
– Dry-break version available
– Additional safety locking system available to prevent unintentional disconnection

Additional information

Weight 0.026 kg
Body Material

Stainless Steel 303
Connection Size

8 mm
Connection Type

Hose Barb
Coupling Half

Coupler
Diameter

5 mm (nominal)
Flow Rate

2.7 L/min (water) | 310 L/min (air)
Function

Double Shut-Off
Operation Type

Sleeve
Outside Diameter

16 mm
Product Series

Series 21
Product Style

Quick-Connect
Product Type

Pneumatic Quick Couplings
Seal Material

EPDM
Shape

Straight
Sleeve Material

Stainless Steel 303
Valve Included

Yes
Valve Type

Standard Valve
Application

Laboratory | Trucks & Trailers | In-Plant Automotive | Diagnostics | Energy Management | Electronics | Industrial Machinery | Food & Beverages | Pharma
Brand

Parker | Rectus
Compatible Fitting

Series 21 Plug
Division

Low Pressure Connectors Europe Division | Low Pressure Connectors Europe Division
For Fluid Type

Air & Neutral Gases (Industrial compressed, drinking, inert gases) | Coolants (Industrial coolants, lubricants) | Water (Industrial, lubricated air, solvents, treated water), water-glycol) | Chemicals (Paints
Hex Size

14 mm
Industry

Transportation | General Industrial | Healthcare & Life Sciences | Electronics
Interchange Type

European Profile
Maximum Operating Pressure

35 bar | 507 psi
Maximum Operating Temperature

302 °F | 150 °C
Minimum Operating Temperature

-40 °F | -40 °C
Plating Type

Without Surface Treatment
Quantity per Box

1
Region of Origin

Germany
Technology

Fluid & Gas Handling | Pneumatics
Weight

0.026 kg
