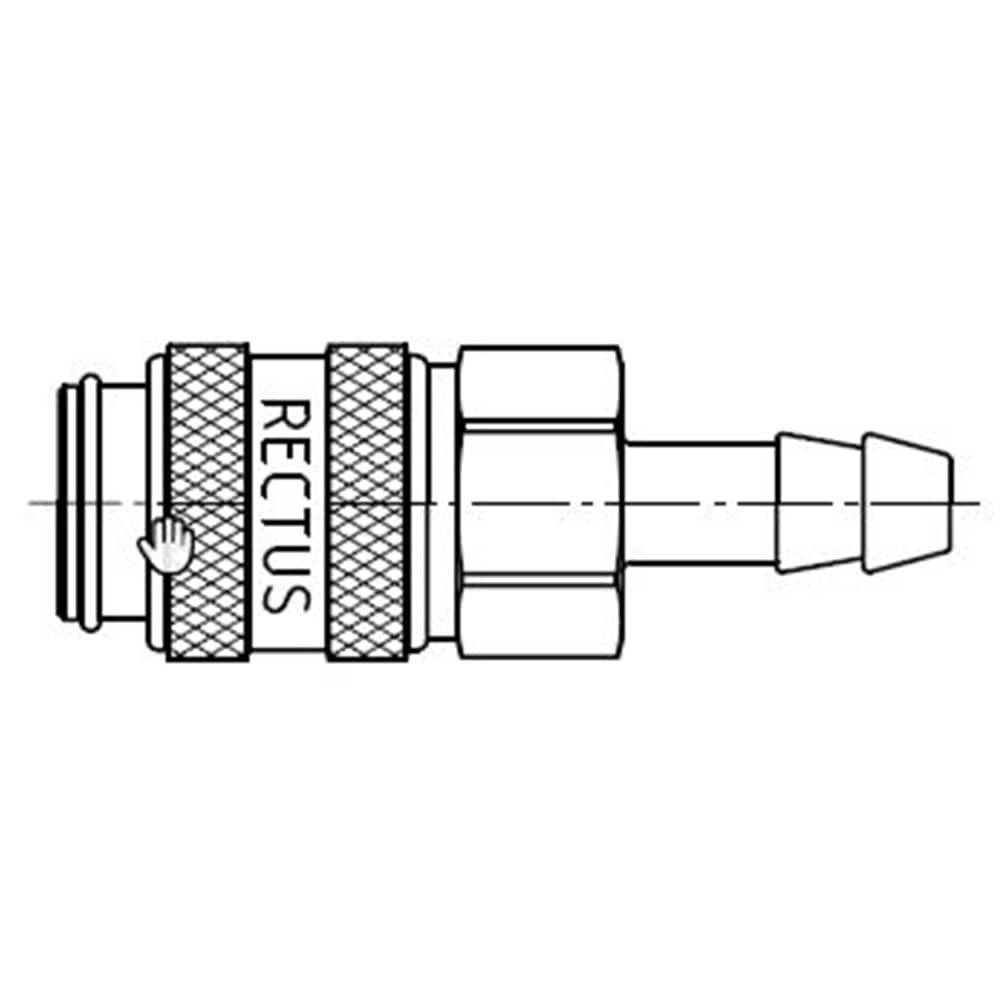

21KFTF09MPN — Quick Coupling, European profile, ND 5 (Series 21) — Straight — 9mm
21KFTF09MPN — Quick Coupling, European profile, ND 5 (Series 21) — Straight — 9mm - Image 2

21KFTF09MPN — Quick Coupling, European profile, ND 5 (Series 21) — Straight — 9mm

£13.51 exc. VAT; £16.21 inc. VAT

21KFTF09MPN — Quick coupling system with nominal diameter 5 for pneumatic, liquids and gas applications up to 35 bar. Available in brass, nickel-plated brass, or stainless steel.

Available to order - usually dispatched within 1 week (Manufacturer Dependant)

SKU: 21KFTF09MPN Category:

Description

The 21KFTF09MPN is a Quick Coupling, European profile, ND 5 (Series 21) (Straight, 9mm), supplied from UK stock by J&J Air Systems. It is rated to a maximum operating pressure of 35 bar and an operating temperature range of -20°C to 100°C.

Specification

  • Part number: 21KFTF09MPN
  • Size / variant: Straight, 9mm
  • Maximum operating pressure: 35 bar
  • Operating temperature: -20°C to 100°C
  • Suitable for: drinking, inert gases), lubricated air, treated water) | Air & Neutral Gases (Industrial compressed, Water (Industrial
  • Applications: Medical | In-Plant Automotive | Food & Beverages
  • Weight: 0.0278 kg

Need technical advice, availability or volume pricing? Call 0800 0278 442 or email [email protected].

About this range

Parker’s Series 21 is a mini-industrial coupling with European profile. Coupling system with single-hand operation. Above average flow performance for liquid and gaseous media.
Markets:
– Industrial
– Electronics and energy management
– Rescue Equipment
– Life Science
– Machinery construction
– Material Handling
– Transportation
– Automotive
– Process
– Food & Beverage
Features/Benefits:
– Mini Industrial Coupling
– Single-hand operation for easy and fast connection
– European profile is the most representative profile worldwide
– Dry-break version available
– Additional safety locking system available to prevent unintentional disconnection

Additional information

Weight 0.0278 kg
Body Material

Brass
Connection Size

9 mm
Connection Type

Hose Barb
Coupling Half

Coupler
Diameter

5 mm (nominal)
Flow Rate

550 L/min (air) | 2.7 L/min (water)
Function

Straight-Through
Operation Type

Sleeve
Outside Diameter

16 mm
Product Series

Series 21
Product Style

Quick-Connect
Product Type

Pneumatic Quick Couplings
Seal Material

NBR
Shape

Straight
Sleeve Material

Brass
Valve Included

No
Valve Type

Without Valve
Application

Medical | In-Plant Automotive | Food & Beverages
Brand

Parker | Rectus
Compatible Fitting

Series 21 Plug
Division

Low Pressure Connectors Europe Division | Low Pressure Connectors Europe Division
For Fluid Type

drinking, inert gases), lubricated air, treated water) | Air & Neutral Gases (Industrial compressed, Water (Industrial
Hex Size

14 mm
Industry

Healthcare & Life Sciences | General Industrial
Interchange Type

European Profile
Maximum Operating Pressure

35 bar | 507 psi
Maximum Operating Temperature

100 °C | 212 °F
Minimum Operating Temperature

-20 °C | -4 °F
Plating Type

Nickel-Plated
Quantity per Box

10
Region of Origin

Germany
Technology

Pneumatics | Fluid & Gas Handling
Weight

0.0278 kg
