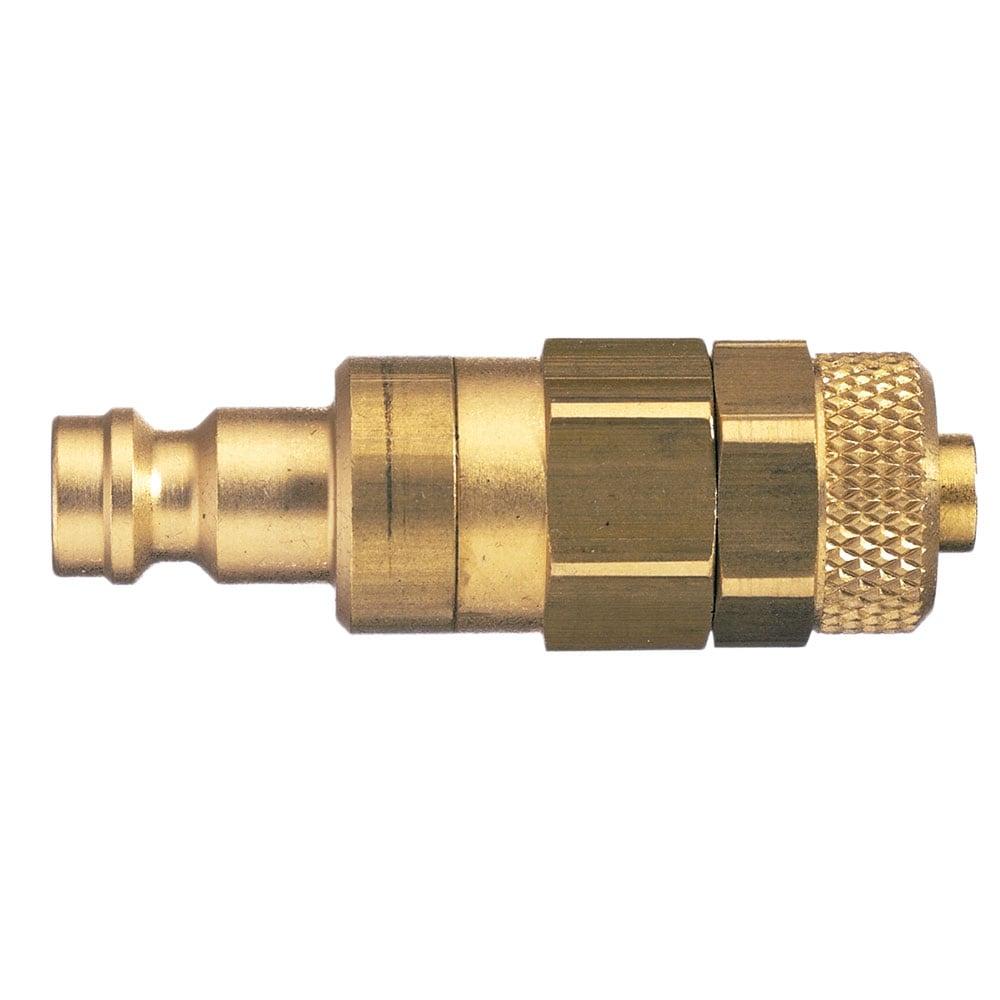

21SBKO06REX — Quick Coupling, European profile, ND 5 (Series 21) — Straight — 4x6mm
21SBKO06REX — Quick Coupling, European profile, ND 5 (Series 21) — Straight — 4x6mm - Image 2

21SBKO06REX — Quick Coupling, European profile, ND 5 (Series 21) — Straight — 4x6mm

£61.93 exc. VAT; £74.32 inc. VAT

21SBKO06REX — Quick coupling system with nominal diameter 5 for pneumatic, liquids and gas applications up to 35 bar. Available in brass, nickel-plated brass, or stainless steel.

Available to order - usually dispatched within 1 week (Manufacturer Dependant)

SKU: 21SBKO06REX Category:

Description

The 21SBKO06REX is a Quick Coupling, European profile, ND 5 (Series 21) (Straight, 4x6mm), supplied from UK stock by J&J Air Systems. It is rated to a maximum operating pressure of 35 bar and an operating temperature range of -40°C to 150°C.

Specification

  • Part number: 21SBKO06REX
  • Size / variant: Straight, 4x6mm
  • Maximum operating pressure: 35 bar
  • Operating temperature: -40°C to 150°C
  • Suitable for: Air & Neutral Gases (Industrial compressed, drinking, inert gases) | Chemicals (Paints, lubricants) | Water (Industrial, lubricated air, solvents, treated water) | Coolants (Industrial coolants, water-glycol)
  • Applications: Energy Management | In-Plant Automotive | Laboratory | Industrial Machinery | Diagnostics | Electronics | Pharma | Food & Beverages | Trucks & Trailers
  • Weight: 0.0274 kg

Need technical advice, availability or volume pricing? Call 0800 0278 442 or email [email protected].

About this range

Parker’s Series 21 is a mini-industrial coupling with European profile. Coupling system with single-hand operation. Above average flow performance for liquid and gaseous media.
Markets:
– Industrial
– Electronics and energy management
– Rescue Equipment
– Life Science
– Machinery construction
– Material Handling
– Transportation
– Automotive
– Process
– Food & Beverage
Features/Benefits:
– Mini Industrial Coupling
– Single-hand operation for easy and fast connection
– European profile is the most representative profile worldwide
– Dry-break version available
– Additional safety locking system available to prevent unintentional disconnection

Additional information

Weight 0.0274 kg
Body Material

Stainless Steel 303
Connection Size

4×6 mm
Connection Type

Tube With hose nut, without spring guard
Coupling Half

Plug
Diameter

5 mm (nominal)
Flow Rate

2.7 L/min (water) | 310 L/min (air)
Function

Double Shut-Off
Operation Type

Without Sleeve
Product Series

Series 21
Product Style

Quick-Connect
Product Type

Pneumatic Quick Couplings
Seal Material

EPDM
Shape

Straight
Sleeve Material

No sleeve
Valve Included

Yes
Valve Type

Standard Valve
Application

Energy Management | In-Plant Automotive | Laboratory | Industrial Machinery | Diagnostics | Electronics | Pharma | Food & Beverages | Trucks & Trailers
Brand

Rectus | Parker
Compatible Fitting

Series 21 Coupler
Division

Low Pressure Connectors Europe Division | Low Pressure Connectors Europe Division
For Fluid Type

Air & Neutral Gases (Industrial compressed, drinking, inert gases) | Chemicals (Paints, lubricants) | Water (Industrial, lubricated air, solvents, treated water) | Coolants (Industrial coolants, water-glycol)
Hex Size

14 mm
Industry

Healthcare & Life Sciences | Transportation | General Industrial | Electronics
Interchange Type

European Profile
Maximum Operating Pressure

507 psi | 35 bar
Maximum Operating Temperature

150 °C | 302 °F
Minimum Operating Temperature

-40 °F | -40 °C
Plating Type

Without Surface Treatment
Quantity per Box

1
Region of Origin

Germany
Specifications Met

RoHS | ATEX
Technology

Fluid & Gas Handling | Pneumatics
Weight

0.0274 kg
