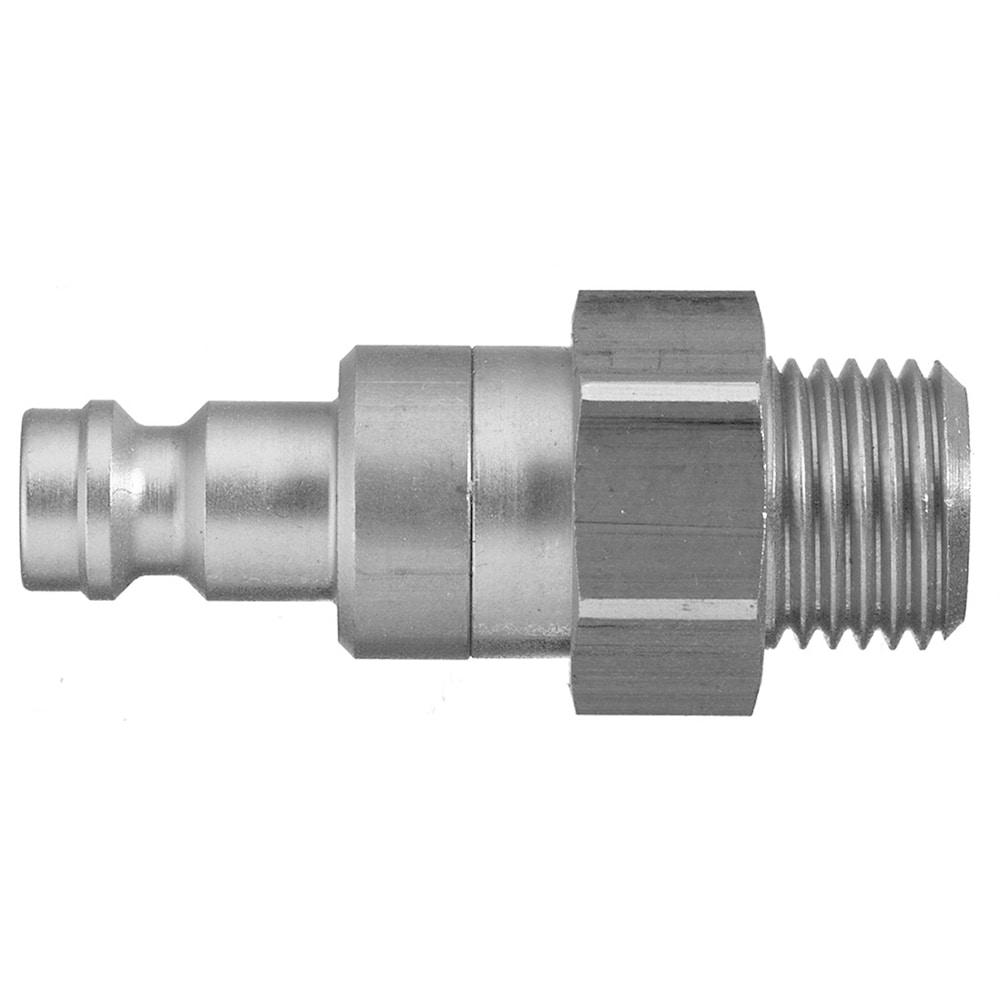

21SLIW10MPN — Quick Coupling, European profile, ND 5 (Series 21) — Straight — G1/8
£24.63 exc. VAT; £29.56 inc. VAT
21SLIW10MPN — Quick coupling system with nominal diameter 5 for pneumatic, liquids and gas applications up to 35 bar. Available in brass, nickel-plated brass, or stainless steel.
Available to order - usually dispatched within 1 week (Manufacturer Dependant)
Description
The 21SLIW10MPN is a Quick Coupling, European profile, ND 5 (Series 21) (Straight, G1/8), supplied from UK stock by J&J Air Systems. It is rated to a maximum operating pressure of 8 bar and an operating temperature range of -20°C to 100°C.
Specification
- Part number: 21SLIW10MPN
- Size / variant: Straight, G1/8
- Maximum operating pressure: 8 bar
- Operating temperature: -20°C to 100°C
- Suitable for: drinking, treated water), Water (Industrial
- Applications: Trucks & Trailers | Energy Management | Industrial Machinery | Electronics
- Weight: 0.026 kg
Need technical advice, availability or volume pricing? Call 0800 0278 442 or email [email protected].
About this range
Parker’s Series 21 is a mini-industrial coupling with European profile. Coupling system with single-hand operation. Above average flow performance for liquid and gaseous media.
Markets:
– Industrial
– Electronics and energy management
– Rescue Equipment
– Life Science
– Machinery construction
– Material Handling
– Transportation
– Automotive
– Process
– Food & Beverage
Features/Benefits:
– Mini Industrial Coupling
– Single-hand operation for easy and fast connection
– European profile is the most representative profile worldwide
– Dry-break version available
– Additional safety locking system available to prevent unintentional disconnection
Additional information
| Weight | 0.026 kg |
|---|---|
| Body Material | Brass |
| Connection Size | G 1/8 |
| Connection Type | Female | BSPP ISO 228 Parallel |
| Coupling Half | Plug |
| Diameter | 5 mm (nominal) |
| Flow Rate | 2.7 L/min (water) |
| Function | Dry-Break (Double Shut-Off) |
| Operation Type | Without Sleeve |
| Product Series | Series 21 |
| Product Style | Quick-Connect |
| Product Type | Pneumatic Quick Couplings |
| Seal Material | NBR |
| Shape | Straight |
| Sleeve Material | No sleeve |
| Valve Included | Yes |
| Valve Type | Standard Valve |
| Application | Trucks & Trailers | Energy Management | Industrial Machinery | Electronics |
| Brand | Rectus | Parker |
| Compatible Fitting | Series 21 Coupler |
| Division | Low Pressure Connectors Europe Division | Low Pressure Connectors Europe Division |
| For Fluid Type | drinking, treated water), Water (Industrial |
| Hex Size | 14 mm |
| Industry | Transportation | General Industrial | Electronics |
| Interchange Type | European Profile |
| Maximum Operating Pressure | 116 psi | 8 bar |
| Maximum Operating Temperature | 100 °C | 212 °F |
| Minimum Operating Temperature | -20 °C | -4 °F |
| Plating Type | Nickel-Plated |
| Quantity per Box | 5 |
| Region of Origin | Germany |
| Specifications Met | RoHS | ATEX |
| Technology | Pneumatics | Fluid & Gas Handling |
| Weight | 0.026 kg |
