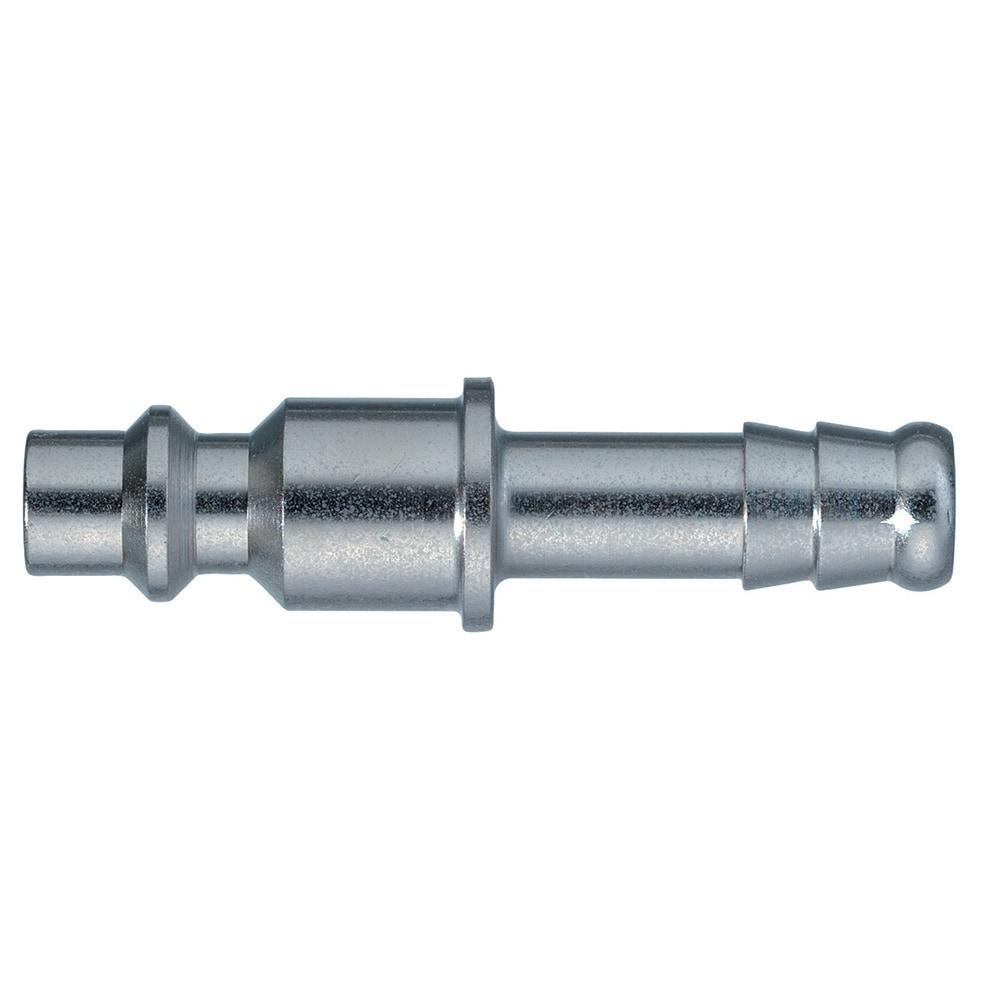

23SFTF08SXN — Quick Coupling, ISO B profile, ND 5.5 (Series 23, 24, 1400 and 1423) — 8mm
23SFTF08SXN — Quick Coupling, ISO B profile, ND 5.5 (Series 23, 24, 1400 and 1423) — 8mm - Image 2

23SFTF08SXN — Quick Coupling, ISO B profile, ND 5.5 (Series 23, 24, 1400 and 1423) — 8mm

£3.76 exc. VAT; £4.51 inc. VAT

23SFTF08SXN — Quick coupling system with nominal diameter 5.5 mm for pneumatic applications up to 35 bar. Coupling system with a worldwide used ISO 6150 B profile. Available made of brass/steel.

Available to order - usually dispatched within 1 week (Manufacturer Dependant)

SKU: 23SFTF08SXN Category:

Description

The 23SFTF08SXN is a Quick Coupling, ISO B profile, ND 5.5 (Series 23, 24, 1400 and 1423) (8mm), supplied from UK stock by J&J Air Systems. It is rated to a maximum operating pressure of 35 bar and an operating temperature range of -40°C to 240°C.

Specification

  • Part number: 23SFTF08SXN
  • Size / variant: 8mm
  • Maximum operating pressure: 35 bar
  • Operating temperature: -40°C to 240°C
  • Suitable for: Air & Neutral Gases (Industrial compressed, drinking, inert gases) | Water (Industrial, lubricated air, treated water)
  • Applications: Safety Respiratory Devices | Pneumatic Power Tools | Air Compressors | Assembly Lines

Need technical advice, availability or volume pricing? Call 0800 0278 442 or email [email protected].

About this range

Parker Quick Coupling Series 23, Series 24, Series 1400 and Series 1423 are industrial coupling according to ISO 6150 B and US MIL-SPE+D13C 4109. It’s especially suitable for use with compressed air in industry.
The coupling system is developed for single-hand operation. The UltraFlo valve guarantees optimum flow and low pressure drop. The steel sleeve counters oscillating forces and the high insertion depth is guaranteed by an optimized plug guide.
Plug compatibility:
– Couplers from series 1400, series 1423 and Series 24 are compliant with Series 23 plugs.
Markets:
– Industrial
Features/Benefits:
– UltraFlo valve for optimum flow and low pressure drop
– Single-hand operation for easy and fast connection
– Coupling system according to ISO 6150 B and US MIL-SPEC 4109

Additional information

Weight 0.0176 kg
Body Material

Steel
Connection Size

8 mm
Connection Type

Hose Barb
Coupling Half

Plug
Diameter

5.5 mm (nominal)
Flow Rate

14 L/min (water) | 960 L/min (air)
Function

Straight-Through
Hose Inside Diameter

8 mm
Length

51 mm
Operation Type

No Sleeve
Outside Diameter

14 mm
Product Series

Series 23
Product Style

Quick Connect
Product Type

Pneumatic Quick Couplings
Seal Material

Without Seal
Sleeve Material

Without Sleeve
Valve Included

No
Valve Type

Without Valve
Application

Safety Respiratory Devices | Pneumatic Power Tools | Air Compressors | Assembly Lines
Brand

Rectus | Parker
Compatible Fitting

Series 24 Coupler | Series 23 Coupler | Series 1423 Coupler | Series 1400 Coupler
Division

Low Pressure Connectors Europe Division | Low Pressure Connectors Europe Division
For Fluid Type

Air & Neutral Gases (Industrial compressed, drinking, inert gases) | Water (Industrial, lubricated air, treated water)
Industry

Life & Sciences | Industrial manufacturing equipment
Interchange Type

ISO 6150 B Profile
Maximum Operating Pressure

508 psi | 35 bar
Maximum Operating Temperature

464 °F | 240 °C
Minimum Operating Temperature

-40 °F | -40 °C
Plating Type

Nickel-Plated
Quantity per Box

10
Region of Origin

Germany
Technology

Pneumatics | Fluid & Gas Handling
