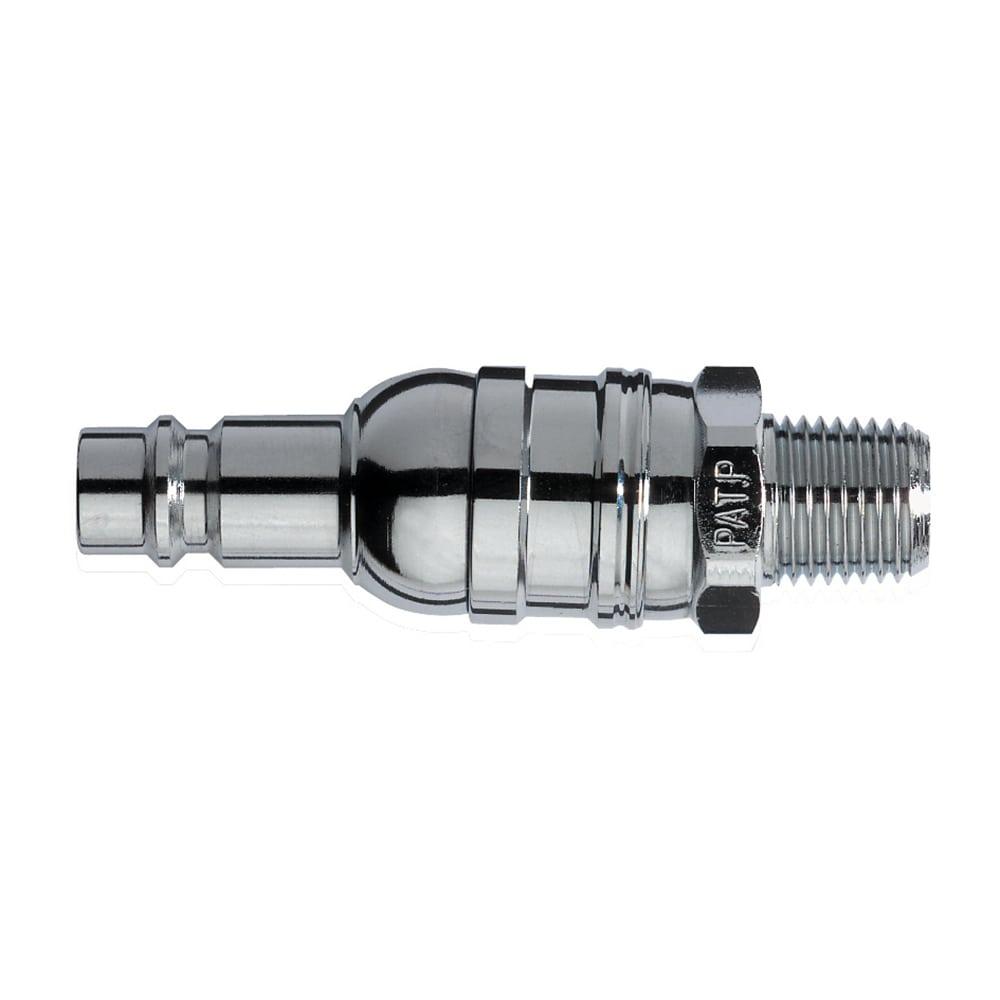

25FAAK13SPN — Quick coupling system with nominal diameter 7.8 for pneumatic (series 25, 1600 and 1625), liquids — R1/4

Description

The 25FAAK13SPN is a Quick coupling system with nominal diameter 7.8 for pneumatic (series 25, 1600 and 1625), liquids (R1/4), supplied from UK stock by J&J Air Systems. It is rated to a maximum operating pressure of 35 bar and an operating temperature range of -20°C to 100°C.

Specification

• Part number: 25FAAK13SPN
• Size / variant: R1/4
• Maximum operating pressure: 35 bar
• Operating temperature: -20°C to 100°C
• Suitable for: Air & Neutral Gases (Industrial compressed, inert gases), lubricated air
• Applications: Trucks & Trailers | Industrial Machinery | Mobile & Defence | Air & Gas Compressor
• Weight: 0.0603 kg

Need technical advice, availability or volume pricing? Call 0800 0278 442 or email [email protected].

About this range

Parker’s Series 25 is industrial coupling with European profile. Coupling system with single-hand operation. High flow valve for optimum flow and low pressure drops. Series stands out for its robust design and long service life even with the harshest use.
Parker’s Series 1600 and 1625 are industrial coupling with European profile. Coupling system with single-hand operation. Suitable for compressed air application with greater than average air consumption. Ultra-High flow valve for optimum flow and low pressure drop. Extremely robust and ergonomically shaped (series 1625)
Markets:
Series 25 – Electronics and Energy Management
– Tranportation
– Life Science
– Industrial
Series 1600 and 1625 – Electronics and Energy Management
– Transportation
– Industrial
Features/Benefits:
– Industrial coupling with European profile, most representative profile worldwide
– Single-hand operation for easy and fast connection
– High-Flow and Ultra High-Flow valve for optimum flow and low pressure drop
