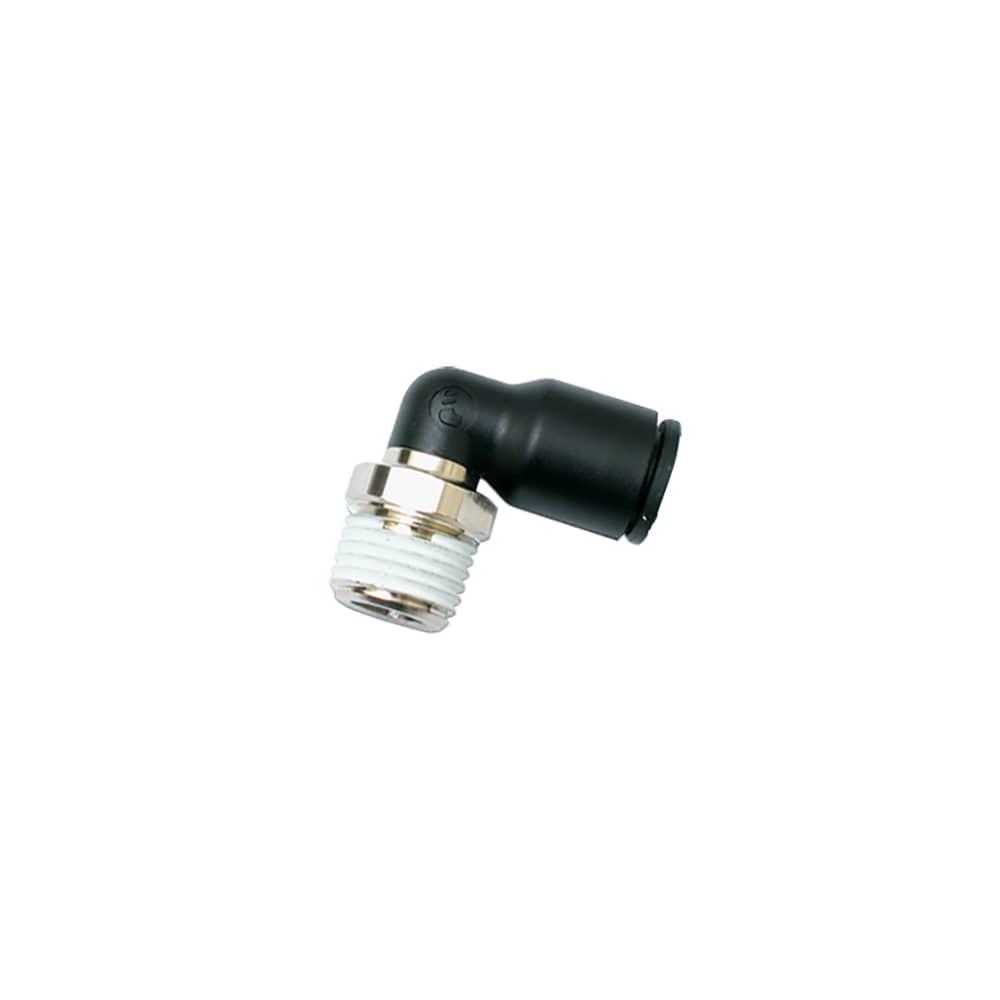

3109 56 18 — Pneumatic Push-In Fittings – LF 3000® — Elbow 90° — 1/4″, NPT3/8

£6.16 exc. VAT; £7.39 inc. VAT

3109 56 18 — The LF 3000® push-in fittings range includes banjo, oscillating, and modular multiport functions offering multiple configurations. Robust, lightweight, and compact thus connectors allow you to optimize the design of your pneumatic equipment.

Available to order - usually dispatched within 1 week (Manufacturer Dependant)

SKU: 3109 56 18 Category: Threaded Adaptors

Description
Additional information

Description

The LF 3000® push-in fittings range includes banjo, oscillating and modular multiport functions offering multiple configurations. Robust, lightweight, and compact thus connectors allow you to optimize the design of your pneumatic equipment.
Features/Benefits:
•Reliability
•100% leak-tested in production
•Date coding to guarantee quality and traceability
•Durability
•Conforms to ISO 14743
•Tried-and-tested longevity technology
•High number of pressure cycles
•No pumping effects
•Flexibility
•Compactness for space saving
•Multiple shapes and configurations for more modularity
•Sustainability
•ROHS and REACH compliant
•Eco-friendly thanks to full flow for efficiency
•Low carbon-printing – Made in Europe
Markets:
•Automation
•Industrial
•Food processing
Applications:
•Packaging manufacturing,
•Robotic,
•In-plant automotive,
•Pneumatics,
•Solenoid valves,
•Pneumatic cylinders
•Pneumatic Machinery Equipment
•Low Pressure Compressed Air Conveying
•Vacuum systems
•Semiconductor machinery
•Textile machinery
•Cabinets/Panels
Technologies:
•Push-In Fittings
•Push-to-Connect Fittings
•Pneumatic Fittings
•Instant Fittings
•Quick Fittings
•Connectors
•Swivel Fittings
•Orientable Fittings
•Modular Fittings
•Multi-Connectors
•Modular Plug-In Connectors
•Self-Sealing Fittings
•Connectors
Technical Characteristics:
•Fluids: compressed air, neutral gas, other fluids: please contact us
•Materials: Technical polymer, nickel-plated brass, NBR
•Pressure: Vacuum to 20 bar
•Temperature: -20°C to +80°C
•Ø Metric: 3mm to 16 mm
•Ø Inch: 1/8″ to 1/2″
Regulations:
•ISO 14743
•PED
•RoHS
•REACH

Additional information

Weight	0.021 kg
Body Material	Technical Polymer
Configuration	Tube to Port
Connection 1 Size	1/4 inch Tube O.D.
Connection 1 Type	Tube
Connection 2 Size	3/8 inch
Connection 2 Type	Male \| NPT \| NPT Thread
Product Series	LF 3000®
Product Style	Stud Fittings
Product Type	Pneumatic Push-In Fittings – LF 3000®
Seal Material	NBR
Shape	Elbow 90°
Application	Packaging \| Vacuum \| Automotive \| Pneumatics \| Textile \| Robotics
Brand	Parker \| Legris
Division	Low Pressure Connectors Europe Division \| Low Pressure Connectors Europe Division
For Fluid Type	Air (Compressed Air) \| Other Fluids: Please Consult Us
Gripping Ring Material	Stainless Steel
Hex Size	18
Hex Type	Hexagon Metric
Industry	Semiconductor \| Transportation \| Power Generation \| Off-road Machinery \| Chemicals Processing \| Renewable Energy \| Industrial Manufacturing Equipment \| Industrial Processing \| Electronics
Maximum Operating Temperature	80 °C
Minimum Operating Temperature	-20 °C
Quantity per Box	10
Technology	Fluid & Gas Handling
Vacuum Pressure Rating	755 mm-Hg
Weight	0.020 kg
