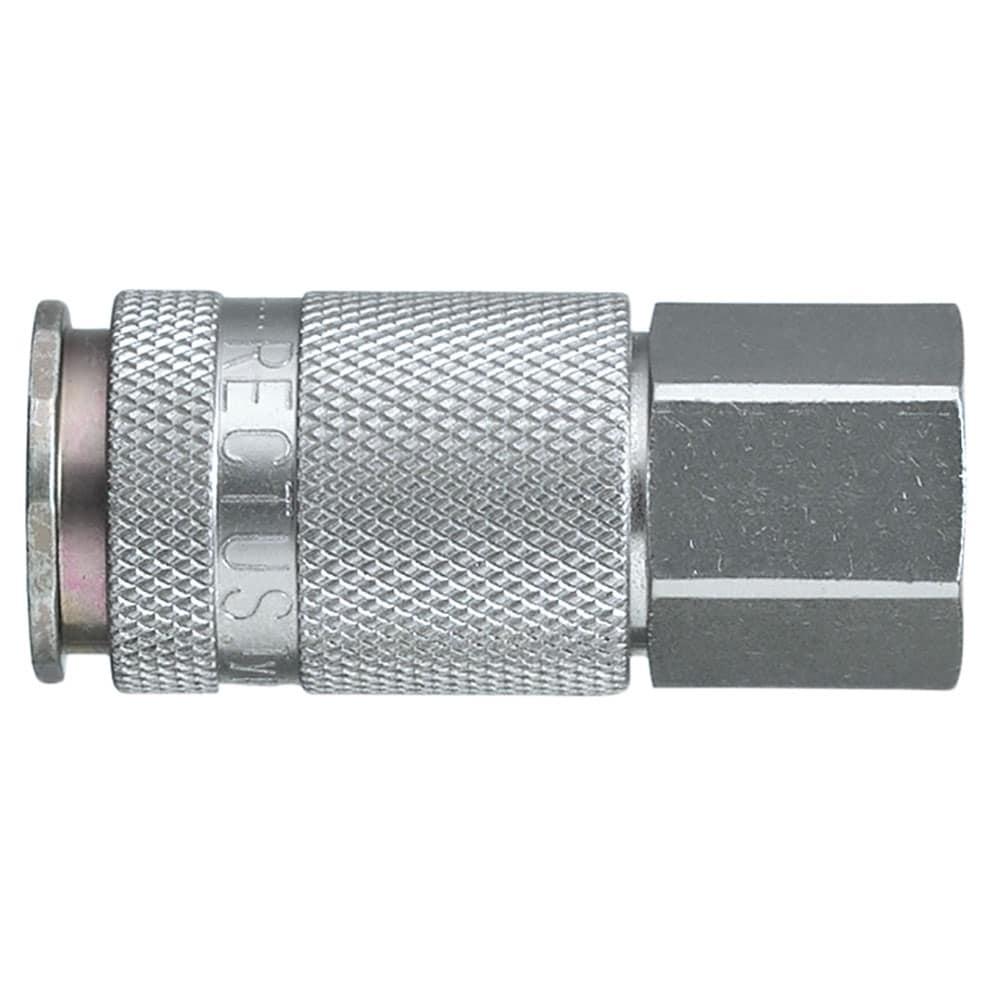

34KAIW21SPN — Quick Coupling with Atlas Copco Profile, Series 34 — G1/2

34KAIW21SPN — Quick Coupling with Atlas Copco Profile, Series 34 — G1/2

£31.42 exc. VAT; £37.70 inc. VAT

34KAIW21SPN — Quick coupling system with nominal diameter 10 for pneumatic and fluid handling applications up to 35 bar. Coupling system with Atlas Copco profile. Available made of brass/steel.

Available to order - usually dispatched within 1 week (Manufacturer Dependant)

SKU: 34KAIW21SPN Category:

Description

The 34KAIW21SPN is a Quick Coupling with Atlas Copco Profile, Series 34 (G1/2), supplied from UK stock by J&J Air Systems. It is rated to a maximum operating pressure of 35 bar and an operating temperature range of -20°C to 100°C.

Specification

  • Part number: 34KAIW21SPN
  • Size / variant: G1/2
  • Maximum operating pressure: 35 bar
  • Operating temperature: -20°C to 100°C
  • Suitable for: Chemicals (Paints, drinking, inert gases), lubricants) | Water (Industrial, lubricated air, solvents, treated water) | Air & Neutral Gases (Industrial compressed
  • Weight: 0.153 kg

Need technical advice, availability or volume pricing? Call 0800 0278 442 or email [email protected].

About this range

Parker’s Series 34 is an industrial coupling with Atlas Copco-Profile.
This coupling system is developed for single-hand operation. The UltraFlo valve guarantees optimum flow and low pressure drop. Series 34 is optimal for use with large pneumatic consumers due to the robust design and steel sleeve. The collar design minimizes damage to the valve body.
Markets:
– Machinery Construction
– Automotive
Features/Benefits:
– UltraFlo valve for optimum flow and low pressure drop
– Single-hand operation for easy and fast connection
Applications:
– Pneumatic Power Tools
– Assembly Lines
– Air compressors

Additional information

Weight 0.1525 kg
Body Material

Steel
Connection Size

G 1/2
Connection Type

BSPP | Female
Coupling Half

Coupler
Diameter

10 mm (nominal)
Flow Rate

2550 L/min (air) | 30 L/min (water)
Function

Single Shut-Off
Length

64 mm
Operation Type

Sleeve
Outside Diameter

28 mm
Product Series

Series 34
Product Style

Quick Connect
Seal Material

NBR
Sleeve Material

Brass
Valve Included

Yes
Valve Type

High Flow Valve
Brand

Rectus | Parker
Compatible Fitting

Series 34 Plug
Division

Low Pressure Connectors Europe Division | Low Pressure Connectors Europe Division
For Fluid Type

Chemicals (Paints, drinking, inert gases), lubricants) | Water (Industrial, lubricated air, solvents, treated water) | Air & Neutral Gases (Industrial compressed
Hex Size

24 mm
Industry

General Industrial
Maximum Operating Pressure

35 bar | 508 psi
Maximum Operating Temperature

212 °F | 100 °C
Minimum Operating Temperature

-20 °C | -4 °F
Plating Type

Nickel-Plated
Quantity per Box

10.0
Region of Origin

Germany
Technology

Fluid & Gas Handling | Pneumatics
Weight

0.153 kg
