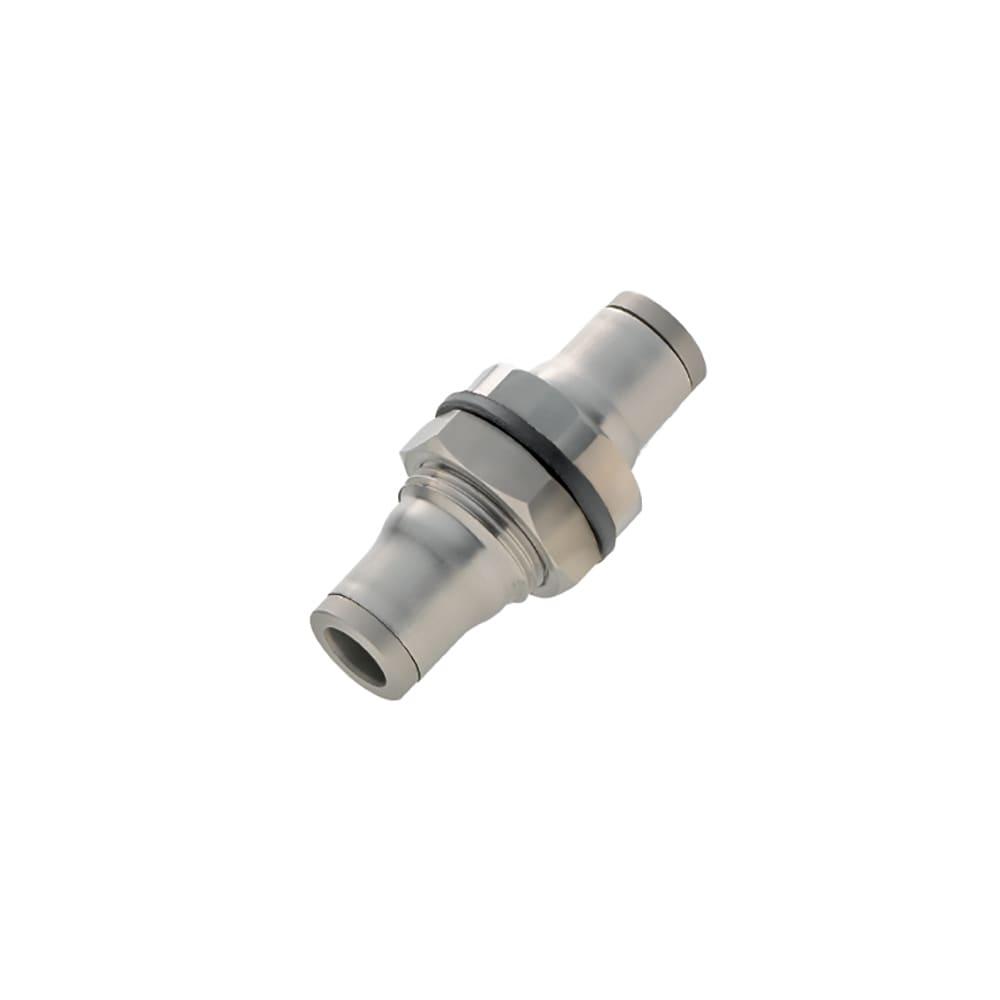

3816 06 00 — Equal Bulkhead Connector — Straight — 6mm

Description

Parker Legris has developed this range of stainless steel fittings for conveying corrosive fluids in aggressive environments. The range provides two complementary levels of corrosion resistance and a hygienic  external design.
PRODUCT ADVANTAGES:
> High Resistance to Aggressive Environments
– Excellent for conveying aggressive fl uids
– Hygienic external design for reducing retention zones
– Easy cleaning in situ
– Proven gripping technology
> Wide Range of Applications
– Perfect for permanent contact with foodstuffs
– Compatible with frequent sterilization
– Excellent in saline environments and outdoor applications
– Resistant to industrial cleaning agents and detergents
– Compatible with polymer and grooved stainless steel tubing
– One fitting for many applications: optimised stock management
– Hydrogen

> Reliability & Safety
– All-metal product allowing detection of all components
– Full bore, with minimal pressure drop
– Resistant to hammering, mechanical shock and impulse
– Manual connection and disconnection, no tools required
– 100% leak-tested in production
– Date coding to guarantee quality and traceability
– IP 51 bulkhead: complete protection against ingress in food and non-food zones
PRODUCT TYPES:
– Stud Fittings
– Stud Standpipe
– Cartridge
– Stud Elbow
– Compact Stud Elbow
– Stud Branch Tee
– Stud Run Tee
– Equal Straight Connector
– Equal Stud Elbow
– Equal Tee
– Equal Bulkhead Connector
– Plug-In Reducer
– Blanking Plug
– Disconnection Tool
APPLICATIONS:
– Food Process
– Paper Industry
– Petrochemical
– Pharmaceutical
– Chemical
– Medical
– Hydrogen

TECHNICAL CHARACTERISTICS:
– Fluids: All fluids compatible with the fittings and tubing component materials
– Materials: Stainless Steel 316L, FKM
– Pressure: Vacuum to 30 bar
– Temperature: -25°C to +150°C
– Ø metric: 4-12 mm
– Ø inch:  3/16" to 1/2"
REGULATIONS:
– ISO 14743 Pneumatic transmissions, push-in fittings for thermoplastic tubing
– DI: 97/23/EC (PED)
– DI : 2002/95/EC (RoHS), 2011/65/EC
– DI: 94/9/EC (ATEX)
– RG : 1907/2006 (REACH)
– UL94 V-0: Seal
– RG: 21CFR (FDA)
– RG: 1935/2004/EC
– USDA NSF H1: Grease
