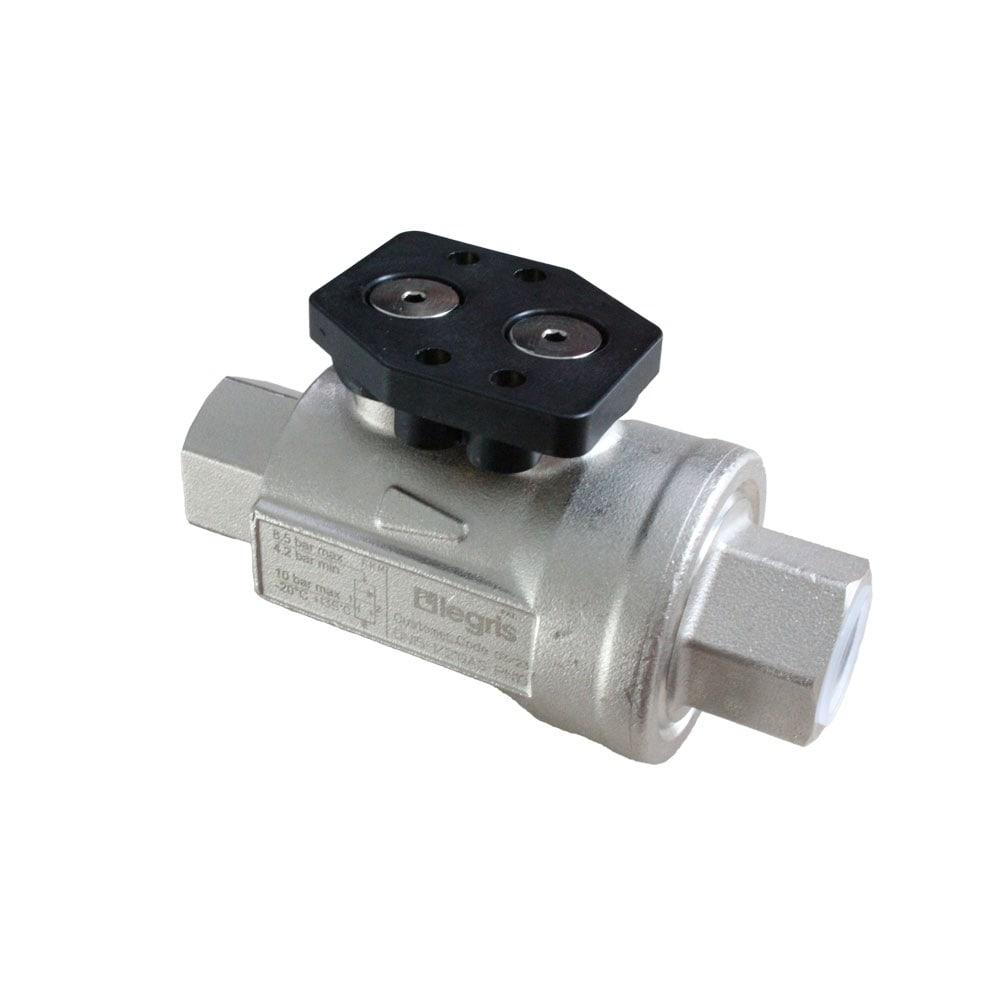

4222 40 49 20 — Axial Valves — Rp 1 1/2, Inline, 40mm (NOM)mm

Description

The Parker Legris axial valve features a pneumatic actuator and can be controlled pneumatically or electro-pneumatically (with a NAMUR spool valve or solenoid valve) for integration into automated systems. It is available with or without detection.
Features/Benefits:
– Optimisation & Safety
• Very compact: 5 times more compact than valves with separate actuators
• Simple to install: ready-to-use
• Automation of the open/close function
Increase efficiency
Real time monitoring and control for immediate adjustments
• Enhanced safety by automating hazardous tasks
• Available with detection for accurate feedback
•
Anticipating failures through diagnostic and predictive maintenance
•
Integration with other systems
– Comprehensive Offer
• Two seal materials for a wider chemical and temperature range
• Pneumatic or electro-pneumatic operation
• Three versions: single acting (normally closed, normally open) or double-acting
– Performance
• Full flow: low pressure drop
• Excellent pressure/temperature performance
• Compatible with many industrial fluids
Markets:
• Water Treatment
• Automotive
• Metals
• Rubber & Plastics
• Packaging
• Factory Automation
• Molding (Plastic Injection)
• Printing & Marking Equipment
Applications:
•
Lubrication Circuit
•
Pumping Unit
•
Car Washing
•
Oxygen and Nitrogen Generator
•
Printing Machine
•
Blow Molding (Plastic Bottles)
•
Industrial Air Distribution
•
Food (Utilities)
•
Ceramic Industry
Technologies:
• Industrial valve
• Axial valve
• Compact valve
• Pneumatic control valve
• Electro-pneumatic control valve
Technical Characteristics:
• Fluids: depending on type of seal
FKM: water, air, oils, greases, etc.
EPDM: hot water, air, steam, etc.
• Materials: nickel-plated brass, silicone free
• Pressure: 10 bar max.
• Temperature:
-20°C to +150°C (suffix 20 FKM and suffix 30 EPDM)
-20°C to +90°C with detection
