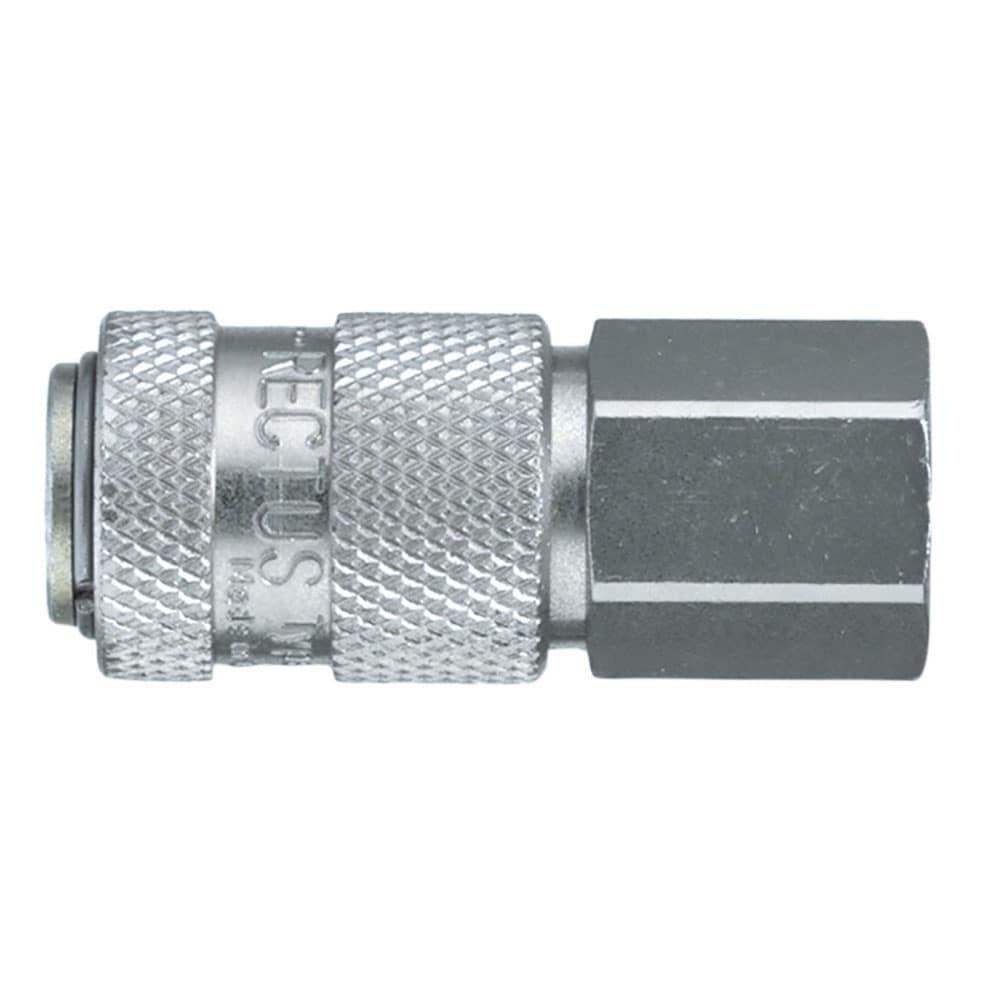

52KBIW13SPN — Premium quick coupling system with nominal diameter 6 for pneumatic and fluid handling applications — G1/4

Description

The 52KBIW13SPN is a Premium quick coupling system with nominal diameter 6 for pneumatic and fluid handling applications (G1/4), supplied from UK stock by J&J Air Systems. It is rated to a maximum operating pressure of 50 bar and an operating temperature range of -20°C to 100°C.

Specification

• Part number: 52KBIW13SPN
• Size / variant: G1/4
• Maximum operating pressure: 50 bar
• Operating temperature: -20°C to 100°C
• Suitable for: Air & Neutral Gases (Industrial compressed, drinking, inert gases) | Water (Industrial, lubricants), lubricated air, solvents, treated water) | Chemicals (Paints
• Applications: Fluid transfer | Air compressors | Assembly Lines | Pneumatic Power Tools
• Weight: 0.1487 kg

Need technical advice, availability or volume pricing? Call 0800 0278 442 or email [email protected].

About this range

Parker’s Premium Quick Coupling Series 52 is a coupling system with German industrial profile.
This coupling system is developed for single-hand operation. The UltraFlo valve guarantees optimum flow and low pressure drop. This robust coupling series in slim design mainly used for pneumatic applications. The steel sleeve counters oscillating forces and the high insertion depth is guaranteed by an optimized plug guide.
Markets:
– Machinery Construction
– Automotive
– Aerospace
– Mobile Hydraulics
– Industrial
– Machine Tooling
Features/Benefits:
– UltraFlo valve for optimum flow and low pressure drop
– Steel sleeve counters oscillating forces
– Single-hand operation for easy and fast connection
Applications:
– Pneumatic Power Tools
– Assembly Lines
– Air compressors
– Fluid Transfer
