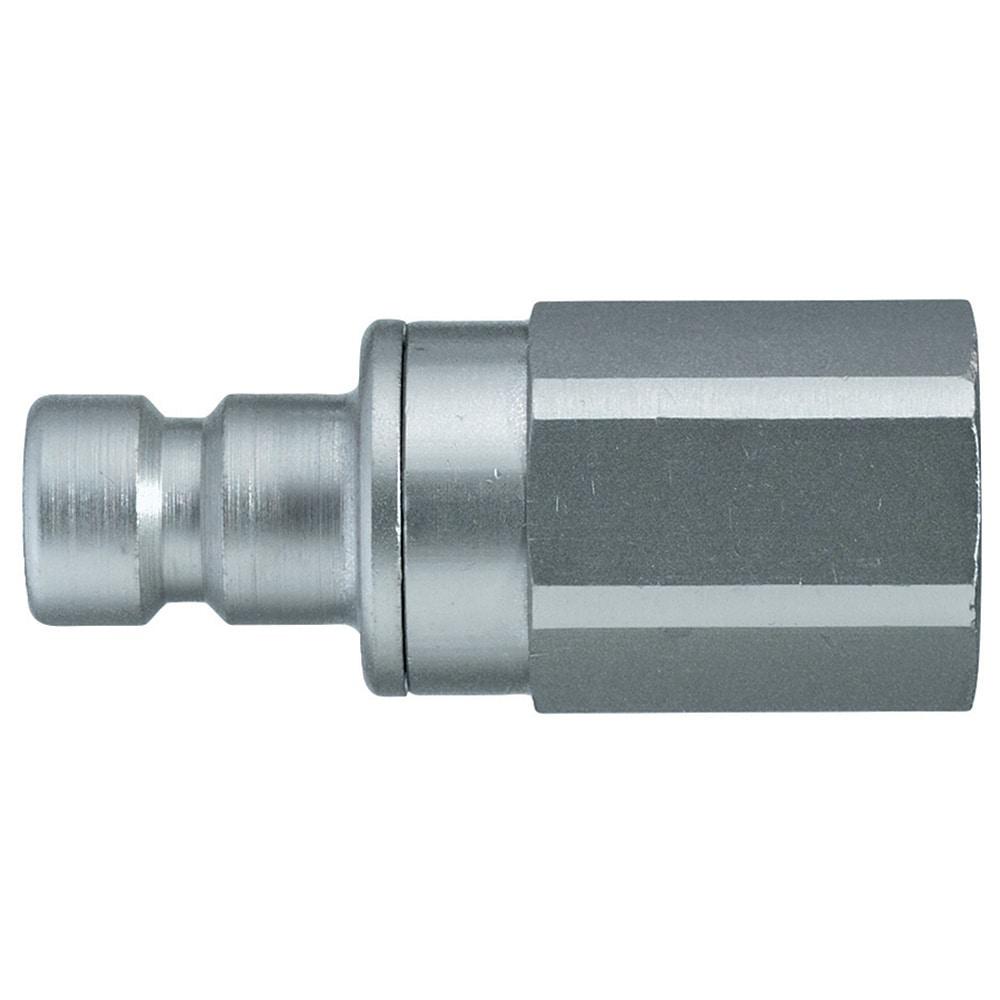

57SBIW21MPN — Premium quick coupling system with nominal diameter 12 for pneumatic and fluid handling — G1/2

Description

The 57SBIW21MPN is a Premium quick coupling system with nominal diameter 12 for pneumatic and fluid handling (G1/2), supplied from UK stock by J&J Air Systems. It is rated to a maximum operating pressure of 35 bar and an operating temperature range of -20°C to 100°C.

Specification

• Part number: 57SBIW21MPN
• Size / variant: G1/2
• Maximum operating pressure: 35 bar
• Operating temperature: -20°C to 100°C
• Suitable for: Chemicals (Paints, drinking, inert gases), lubricants) | Water (Industrial, lubricated air, solvents, treated water) | Air & Neutral Gases (Industrial compressed
• Applications: Assembly Lines | Air compressors | Fluid Handling | Pneumatic Power Tools
• Weight: 0.3754 kg

Need technical advice, availability or volume pricing? Call 0800 0278 442 or email [email protected].

About this range

Parker’s Premium Quick Coupling Series 57 with German industrial profile for compressed air applications.
The UltraFlo valve for optimum flow and low pressure drop. Series 57 stands out for its robust structure, which is optimized with respect to size and performance. It is especially suitable for oscillating forces due to steel sleeve and steel valve bodies. The collar design minimizes damage to the valve body.
Markets:
– Machinery Construction
– Automotive
– Aerospace
– Mobile Hydraulics
– Industrial
Features/Benefits:
– UltraFlo valve for optimum flow and low pressure drop
– Suitable for oscillating forces due to steel sleeve and steel valve bodies
– Single-hand operation for easy and fast connection
Applications:
– Pneumatic Power Tools
– Assembly Lines
– Air compressors
– Fluid Handling
