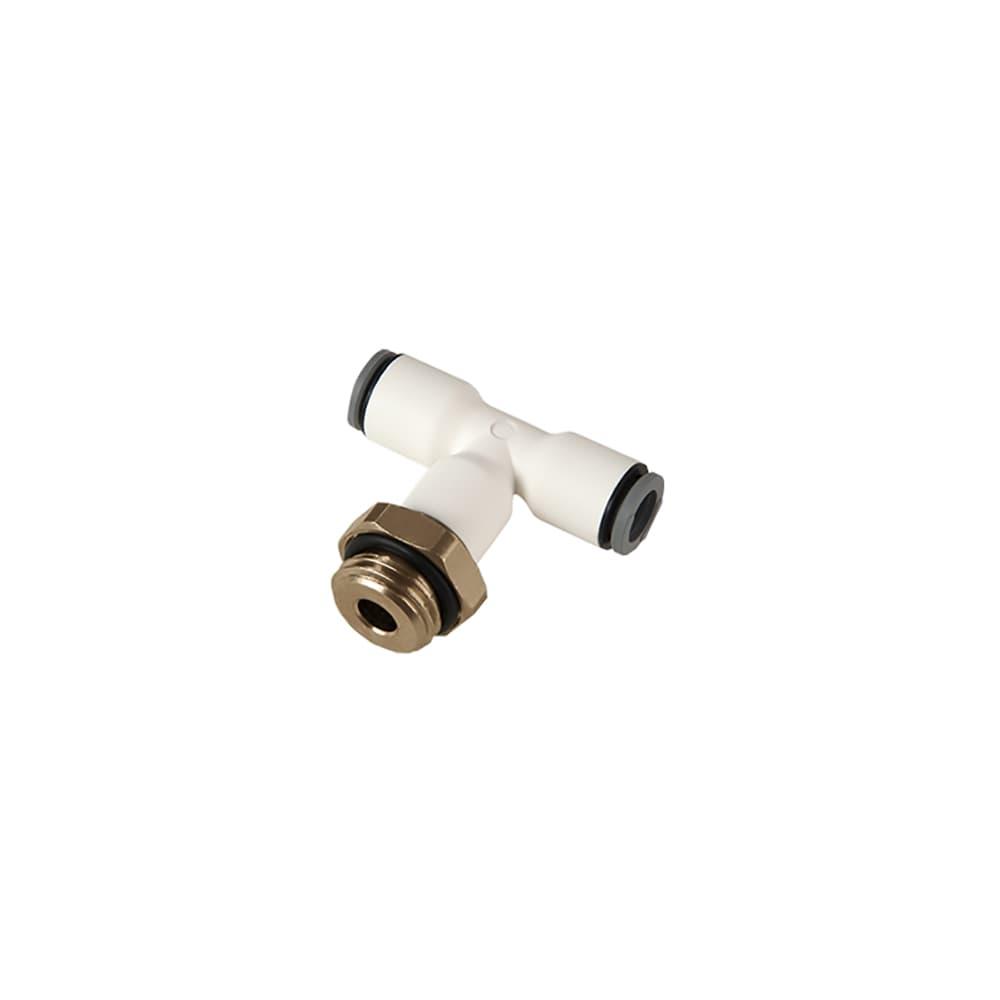

6998 04 13 — LIQUIfit® Push-In Fittings with Metal Adaptors — Tee — 4mm, G1/4
6998 04 13 — LIQUIfit® Push-In Fittings with Metal Adaptors — Tee — 4mm, G1/4 - Image 2

6998 04 13 — LIQUIfit® Push-In Fittings with Metal Adaptors — Tee — 4mm, G1/4

£4.24 exc. VAT; £5.09 inc. VAT

6998 04 13 — Parker/Legris’ LIQUIfit® range has been developed for liquid transfer applications. Those fittings have been designed to ensure reliable and compact connections; no fluid contamination occurs, and environmental protection is guaranteed.

Available to order - usually dispatched within 1 week (Manufacturer Dependant)

SKU: 6998 04 13 Category:

Description

The 6998 04 13 is a LIQUIfit® Push-In Fittings with Metal Adaptors (Tee, 4mm, G1/4), supplied from UK stock by J&J Air Systems. It is rated to a maximum operating pressure of 16 bar and an operating temperature range of -10°C to 95°C.

Specification

  • Part number: 6998 04 13
  • Size / variant: Tee, 4mm, G1/4
  • Maximum operating pressure: 16 bar
  • Operating temperature: -10°C to 95°C
  • Suitable for: Water | Food & Beverage (All beverages) | Industrial Fluids | Coolants
  • Applications: Water Purification | Water Coolers | Cooling | Food Processing
  • Weight: 0.014 kg

Need technical advice, availability or volume pricing? Call 0800 0278 442 or email [email protected].

About this range

Strong from our experience in push-to connect fitting technology for compressed air applications, Parker/Legris extends its expertise into the liquid applications with the
LIQUIfit® range
. Among this product range, the robustness is strengthened by the metal adaptors.
Product Features/Benefits:
Specifically Designed for Liquids
Reliable for Peace of Mind
Compliant with the most demanding food & beverage regulations (
FDA, NSF and European regulations)
Higher sealing performance with the lowest pumping effect on the market (0,2 mm only)
High chemical resistance
The most compact product on the market
Proven automated manufacturing process controlled by camera
100% leak test control
Strong quality management system: ISO 16949 IATF automotive industry certification
Safe for Users’ Protection
Bisphenol & phthalate-free
No particules migration for perfect fluid integrity with our biobased engineered polymer
Easy-to-clean external shapes
Safe for Environmental Concern
Sustainable product using bio-based polymer
produced from renewable plants
Products made in Europe to ensure a sustainable service
Generate 5 time less CO2 during its life cycle
Markets:
Industrial Fluids,
Beverage Process,
Cooling Systems,
Food Process,
Inert Gases
Applications:
Water Purification
Food & Beverages
Beverage Dispensers
Water Coolers
Cooling
Inert Gases

Additional information

Weight 0.014 kg
Body Material

Bio-based Polymer | Brass, FDA Chemical Nickel-plated
Configuration

Tube to Swivel
Connection 1 Size

4 mm Tube O.D.
Connection 1 Type

Tube
Connection 2 Size

4 mm Tube O.D.
Connection 2 Type

Tube
Connection 3 Size

G 1/4 Thread
Connection 3 Type

Male | BSPP
Product Series

LIQUIfit®
Product Style

Stud Fittings
Product Type

Push-to-Connect Fittings
Seal Material

EPDM
Shape

Tee
Application

Water Purification | Water Coolers | Cooling | Food Processing
Brand

Legris | Parker
Division

Low Pressure Connectors Europe Division | Low Pressure Connectors Europe Division
For Fluid Type

Water | Food & Beverage (All beverages) | Industrial Fluids | Coolants
Hex Size

16 mm
Industry

Power Generation | Industrial Manufacturing Equipment | Healthcare & Life Sciences | Electronics | Semiconductor
Maximum Continuous Vacuum Pressure

755 mm-Hg
Maximum Operating Pressure

232 psi | 16 bar
Maximum Operating Temperature

95 °C | 203 °F
Minimum Operating Temperature

14 °F (For working environment down to -40°F, please consult us)., please consult us). | -10 °C (For working environment down to -40°C
Quantity per Box

10
Technology

Fluid & Gas Handling
Weight

0.014 kg
