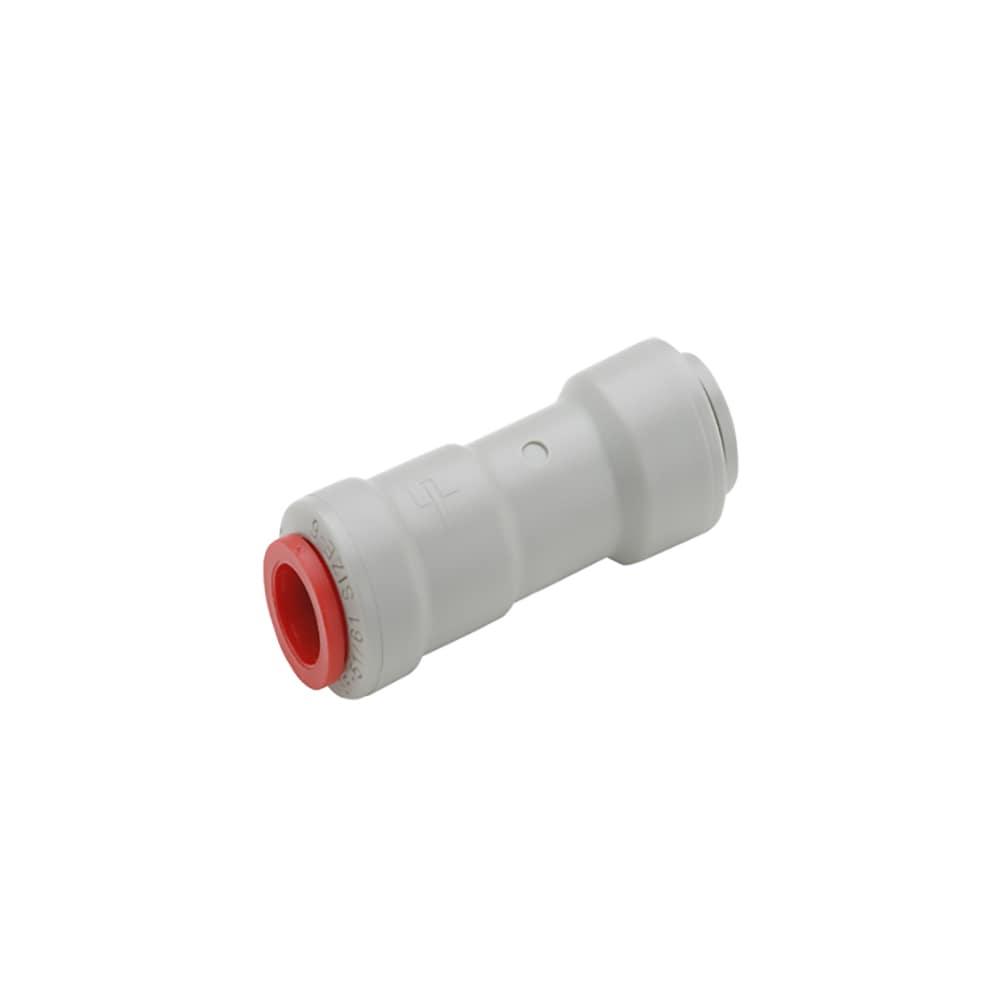

7992 56 00WP2 — LIQUIfit® Polymer Non-Return Valves — Straight — 1/4″

Name: J&J Air Systems
Price range: $$

£12.61 exc. VAT; £15.13 inc. VAT

7992 56 00WP2 — LIQUIfit® non-return valves meet the requirements for conveying beverages. They allow flow in one direction and prevent any return flow. Fitted in the circuit, they provide total protection.

Available to order - usually dispatched within 1 week (Manufacturer Dependant)

SKU: 7992 56 00WP2 Category: Push-In Fittings

Description
Additional information

Description

The 7992 56 00WP2 is a LIQUIfit® Polymer Non-Return Valves (Straight, 1/4″), supplied from UK stock by J&J Air Systems. It is rated to a maximum operating pressure of 10 bar and an operating temperature range of 1°C to 65°C.

Specification

Part number: 7992 56 00WP2
Size / variant: Straight, 1/4″
Maximum operating pressure: 10 bar
Operating temperature: 1°C to 65°C
Suitable for: Beverages, Inert Gas, Water
Applications: Water Purification | Inert Gases | Beverage Dispensers | Food Processing
Weight: 0.008 kg

Need technical advice, availability or volume pricing? Call 0800 0278 442 or email [email protected].

About this range

LIQUIfit® non-return valves, also called “check valves” are designed to ensure the flow conveyance in one single direction and prevent any return flow.
Product Features/Benefits:
Fully compatible for use with water, beverages and liquid food stuffs (liquids & gas)
Reliable for Peace of Mind
Fast installation
Indicated fluid direction
Compliant with the most demanding food & beverage regulations (
FDA, NSF and European regulations)
Very low opening cracking pressure
0.02 bar up to O.D. 3/8”
0.03 bar for 0.D. ½”
Safe for Users’ Protection
Resistant to cleaning products due to excellent chemical compatibility

Markets:
Industrial Fluids
Beverage Process
Food Process
Inert Gases
Applications:
Water Purification
Food & Beverages
Beverage Dispensers
Inert Gases

Additional information

Weight	0.008 kg
Body Material	POM
Configuration	Tube to Tube
Connection 1 Size	1/4 inch (O.D)
Connection 1 Tube O.D. (inch)	1/4
Connection 1 Type	Tube
Connection 2 Size	1/4 inch (O.D)
Connection 2 Type	Tube
Product Type	Non-Return Valves
Seal Material	EPDM
Shape	Straight
Application	Water Purification \| Inert Gases \| Beverage Dispensers \| Food Processing
Brand	Legris \| Parker
Division	Low Pressure Connectors Europe Division \| Low Pressure Connectors Europe Division
For Fluid Type	Beverages, Inert Gas, Water
Industry	Industrial Manufacturing Equipment \| Life Sciences
Maximum Operating Pressure	Up to 10 bar
Maximum Operating Temperature	65 °C
Minimum Operating Temperature	1 °C
Quantity per Box	25
Technology	Fluid & Gas Handling
Weight	0.008 kg
