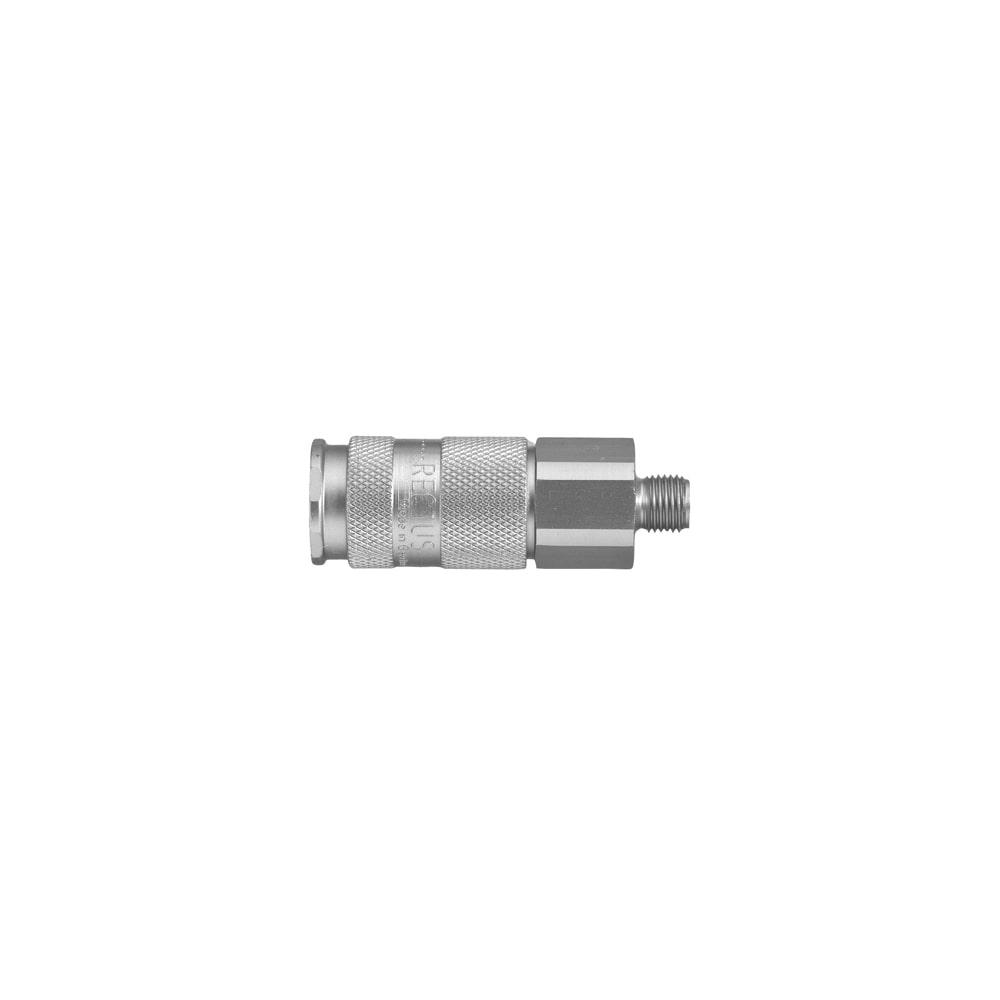

84KAAW17SPN — Quick Coupling, ISO C profile, ND 8 (Series 84) — G3/8

Name: J&J Air Systems
Price range: $$

£55.25 exc. VAT; £66.30 inc. VAT

84KAAW17SPN — Quick connection system with a nominal diameter of 8 mm for pneumatic applications. Standard version up to 35 bar.

Available to order - usually dispatched within 1 week (Manufacturer Dependant)

SKU: 84KAAW17SPN Category: General Spares

Description
Additional information

Description

The 84KAAW17SPN is a Quick Coupling, ISO C profile, ND 8 (Series 84) (G3/8), supplied from UK stock by J&J Air Systems. It is rated to a maximum operating pressure of 35 bar and an operating temperature range of -20.0°C to 100°C.

Specification

Part number: 84KAAW17SPN
Size / variant: G3/8
Maximum operating pressure: 35 bar
Operating temperature: -20.0°C to 100°C
Suitable for: Air | Compressed Air
Applications: Air compressors | Pneumatic Power Tools | General Industrial | Assembly Lines | In Plant Pneumatic
Weight: 0.2491 kg

Need technical advice, availability or volume pricing? Call 0800 0278 442 or email [email protected].

About this range

The Parker Rectus Series 84 is a range of industrial couplers compliant with ISO C standards. Their connection system is designed for one-handed operation.
Markets:
•Pneumatic Power Tools
•Assembly Lines
•General industrial
•Air compressors
Features/Benefits:
•Connection system compliant with ISO C standards
•One-handed operation for easy and quick connections
•Optimized design to ensure above-average flow and minimize pressure drop

Additional information

Weight	0.2491 kg
Body Material	Steel
Connection Size	G 3/8
Connection Type	Male BSPP
Coupling Half	Coupler
Diameter	8 mm (nominal)
Flow Rate	1960 (air) L/min
Function	Single Shut-Off
Length	83 mm
Operation Type	Sleeve
Outside Diameter	29 mm
Product Series	Series 84
Product Style	Quick-Connect
Product Type	Pneumatic Quick Couplings
Seal Material	NBR
Valve Included	Yes
Valve Type	Standard Valve
Application	Air compressors \| Pneumatic Power Tools \| General Industrial \| Assembly Lines \| In Plant Pneumatic
Brand	Parker \| Rectus
Compatible Fitting	Plug
Division	Low Pressure Connectors Europe Division \| Low Pressure Connectors Europe Division
For Fluid Type	Air \| Compressed Air
Hex Size	27 mm
Industry	Industrial equipment manufacturing
Interchange Type	ISO C Profile
Maximum Operating Pressure	35 bar \| 508 psi
Maximum Operating Temperature	up to 100 °C \| up to 212 °F
Minimum Operating Temperature	-20.0 °C \| -4.0 °F
Plating Type	Nickel-Plated
Quantity per Box	5.0
Region of Origin	Germany
Specifications Met	ATEX \| ISO 6150 C
Technology	Pneumatics
Weight	0.2491 kg
