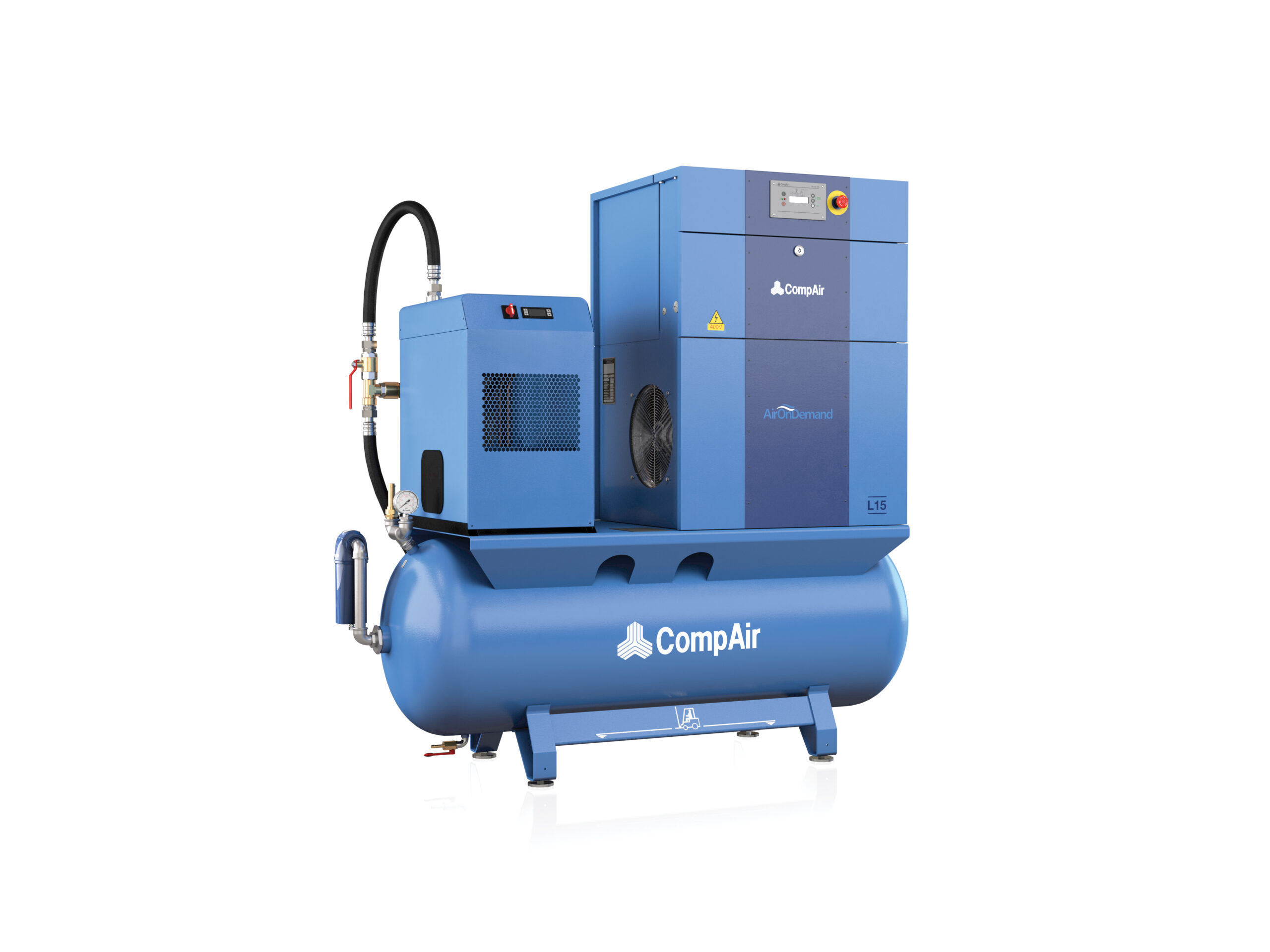

CompAir L15FS – 07 – 500L Airstation – Fixed Speed Rotary Screw Compressor – Air Receiver – Dryer
Phone for Price
Complete compressed air package with integrated receiver and dryer. 11kW, 7.5 bar, 2.25 m³/min FAD.
Description
The CompAir L15FS Airstation is a complete, ready-to-run compressed air package from CompAir, combining a rotary screw compressor with an integrated air receiver and refrigerant dryer in a single compact unit. Designed for plug-and-play installation, it is the ideal solution for workshops, production facilities, and any application where floor space is at a premium.
Technical Specifications
| Drive Motor | 11 kW |
| Working Pressure | 7.5 bar(g) |
| Free Air Delivery (FAD) | 2.25 m³/min |
| Noise Level | 71 dB(A) |
| Weight | 356 kg |
| Dimensions (L×W×H) | 787 x 698 x 1202 mm |
Key Features
- High-output airend with low rotational speed for reduced wear and energy consumption
- Compact, space-efficient design with small installation footprint
- Delcos XL controller for fully automated operation, monitoring and diagnostics
- Hinged and removable panels for quick access to all service points
- Integrated air receiver and refrigerant dryer — complete system in one unit
- Plug-and-play installation with minimal pipework required
- CompAir Assure warranty — up to 10 years on the airend
Supply, Installation & Service from J&J Air Systems
As an experienced compressed air specialist, J&J Air Systems can supply, install and commission your CompAir compressor as part of a complete system solution. We also offer ongoing service, maintenance and spare parts support.
Contact our team: 01494 530291 | [email protected]
Additional information
| Drive Motor (kW) | 11 |
|---|---|
| Working Pressure (bar) | 7.5 |
| FAD (m³/min) | 2.25 |
| Noise Level dB(A) | 71 |
| Weight (kg) | 356 |
| Dimensions L×W×H (mm) | 787 x 698 x 1202 |
