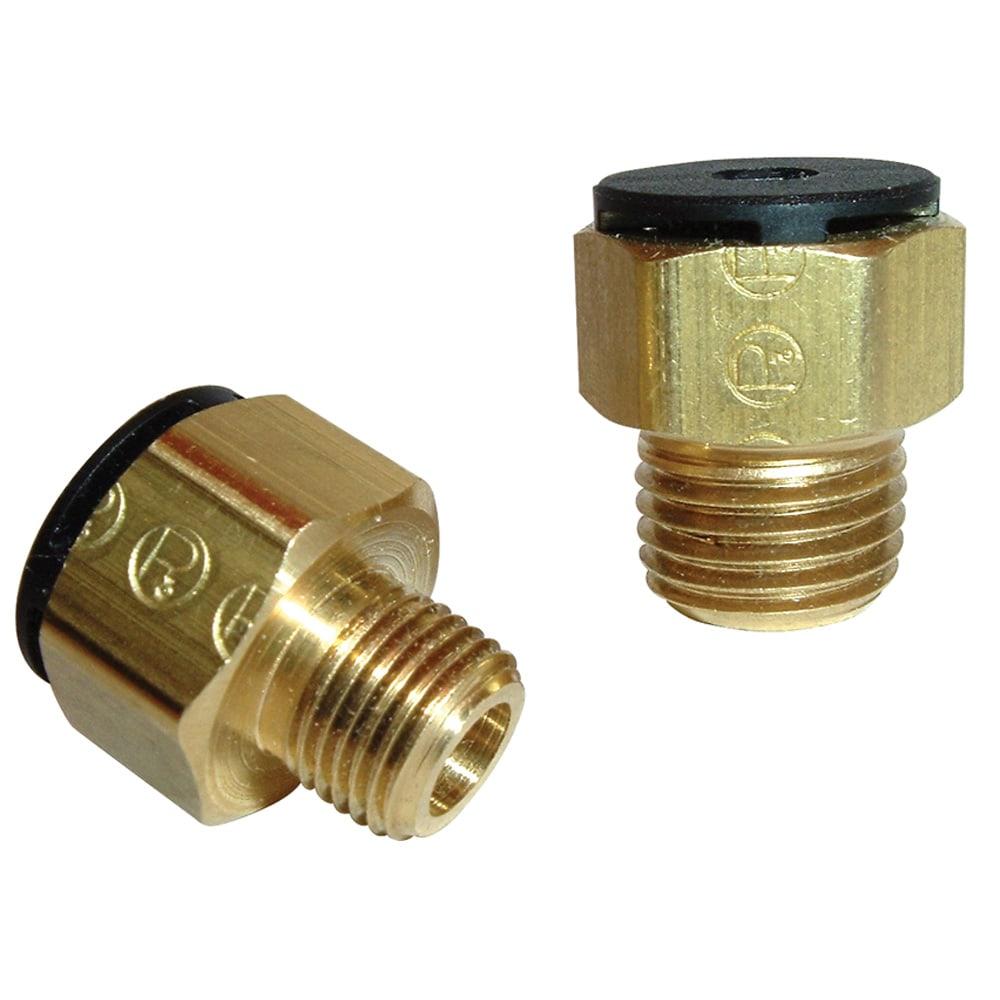

E90016 — Exhaust Protector - E9 Series — 1/8 inch

E90016 — Exhaust Protector – E9 Series — 1/8 inch

£19.63 exc. VAT; £23.56 inc. VAT

E90016 — E9 protectors are intended for mobile or quick venting applications, and breathers that require protection against clogging. They are ideal for valves in harsh conditions and time sensitive applications, such as lift-axles, pushers or tag axles.

Available to order - usually dispatched within 1 week (Manufacturer Dependant)

SKU: E90016 Category:

Description

E9 series exhaust protectors are intended for mobile applications, quick venting applications, and alternative exhaust port breathers that require protection against clogging.  They are ideal for valves exposed to harsh environmental conditions, which can cause a "caking up" in the exhaust pipe ports where the bronze mufflers or breather vents are installed.
Markets
• Mobile
Features/Benefits
• Ideally suited for harsh conditions
Applications
• Mobile
• Quick  Venting
• Time-sensitive applications such as:
• Axle-lift suspensions
• Pushers
• Tag axles

Additional information

Weight 0.05 kg
Body Material

Brass
Flow Rate

56.5 to 62.7 SCFM @ 90 psi / 6.2 bar | 26.6 to 29.5 dm3/sec @ 90 psi / 6.2 bar
Port Size

1/8 inch
Port Size (inch)

1/8
Seal Material

Fluorocarbon
Division

Pneumatic Division
Maximum Inlet Pressure Rating

0 to 10.3 bar | 0 to 150 psig
Maximum Operating Pressure

6.89 bar | 100 psig
Operating Temperature

-40 to 70 °C | -40 to 158 °F
