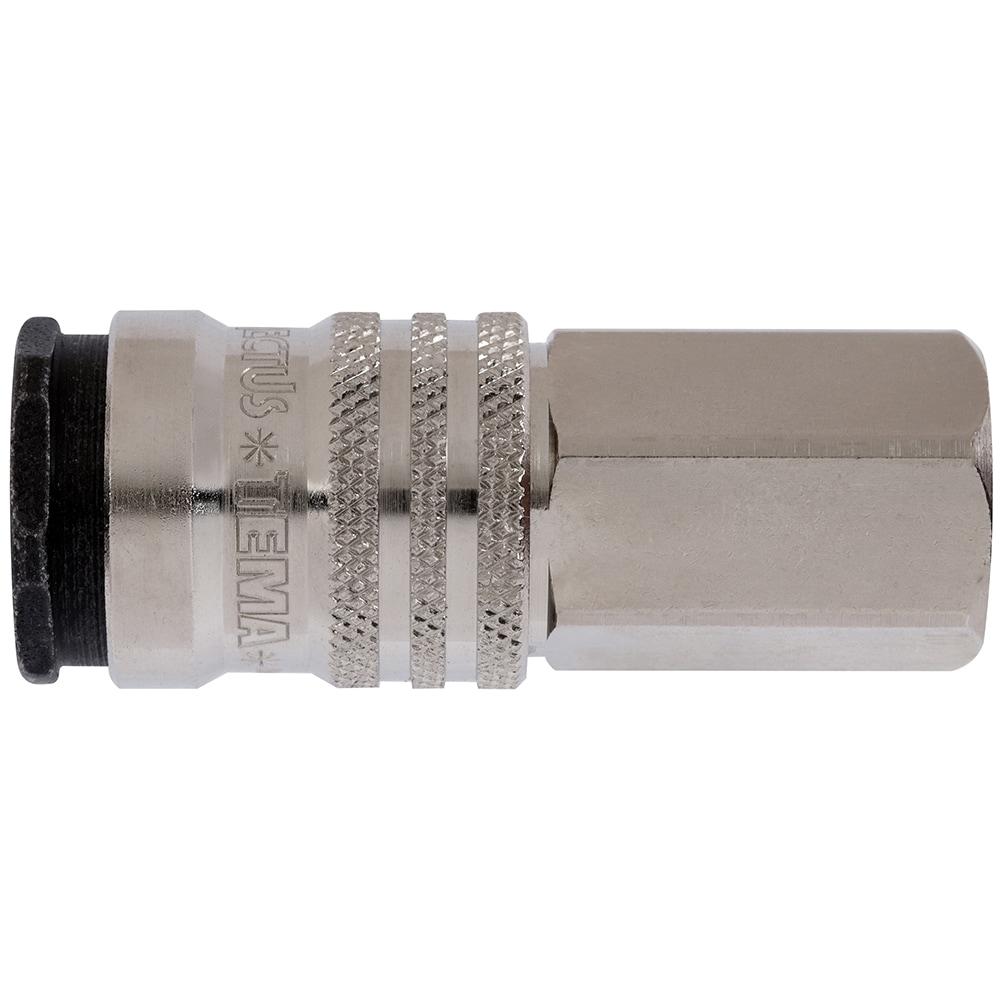

1400KAIW17SPN — Quick Coupling, ISO B profile, ND 5.5 (Series 23, 24, 1400 and 1423) — G3/8
1400KAIW17SPN — Quick Coupling, ISO B profile, ND 5.5 (Series 23, 24, 1400 and 1423) — G3/8 - Image 2

1400KAIW17SPN — Quick Coupling, ISO B profile, ND 5.5 (Series 23, 24, 1400 and 1423) — G3/8

£21.10 exc. VAT; £25.32 inc. VAT

1400KAIW17SPN — Quick coupling system with nominal diameter 5.5 mm for pneumatic applications up to 35 bar. Coupling system with a worldwide used ISO 6150 B profile. Available made of brass/steel.

Available to order - usually dispatched within 1 week (Manufacturer Dependant)

SKU: 1400KAIW17SPN Category:

Description

The 1400KAIW17SPN is a Quick Coupling, ISO B profile, ND 5.5 (Series 23, 24, 1400 and 1423) (G3/8), supplied from UK stock by J&J Air Systems. It is rated to a maximum operating pressure of 35 bar and an operating temperature range of -20°C to 100°C.

Specification

  • Part number: 1400KAIW17SPN
  • Size / variant: G3/8
  • Maximum operating pressure: 35 bar
  • Operating temperature: -20°C to 100°C
  • Suitable for: drinking, inert gases), lubricated air, treated water) | Air & Neutral Gases (Industrial compressed, Water (Industrial
  • Applications: Air compressors | Assembly Lines | Pneumatic Power Tools
  • Weight: 0.1031 kg

Need technical advice, availability or volume pricing? Call 0800 0278 442 or email [email protected].

About this range

Parker Quick Coupling Series 23, Series 24, Series 1400 and Series 1423 are industrial coupling according to ISO 6150 B and US MIL-SPE+D13C 4109. It’s especially suitable for use with compressed air in industry.
The coupling system is developed for single-hand operation. The UltraFlo valve guarantees optimum flow and low pressure drop. The steel sleeve counters oscillating forces and the high insertion depth is guaranteed by an optimized plug guide.
Plug compatibility:
– Couplers from series 1400, series 1423 and Series 24 are compliant with Series 23 plugs.
Markets:
– Industrial
Features/Benefits:
– UltraFlo valve for optimum flow and low pressure drop
– Single-hand operation for easy and fast connection
– Coupling system according to ISO 6150 B and US MIL-SPEC 4109

Additional information

Weight 0.1031 kg
Body Material

Steel
Connection Size

G 3/8
Connection Type

BSPP | Female
Coupling Half

Coupler
Diameter

5.5 mm (nominal)
Flow Rate

950 L/min (air) | 13 L/min (water)
Function

Single Shut-Off
Length

59 mm
Operation Type

Sleeve
Product Series

Series 1400
Product Style

Quick Connect
Product Type

Pneumatic Quick Couplings
Seal Material

NBR
Sleeve Material

Steel
Valve Included

Yes
Valve Type

Ultra High Flow Valve
Application

Air compressors | Assembly Lines | Pneumatic Power Tools
Brand

Parker | Rectus
Compatible Fitting

Series 23 Plug
Division

Low Pressure Connectors Europe Division | Low Pressure Connectors Europe Division
For Fluid Type

drinking, inert gases), lubricated air, treated water) | Air & Neutral Gases (Industrial compressed, Water (Industrial
Hex Size

19 mm
Industry

Life & Sciences | Industrial manufacturing equipment
Interchange Type

ISO 6150 B Profile
Maximum Operating Pressure

35 bar | 508 psi
Maximum Operating Temperature

100 °C | 212 °F
Minimum Operating Temperature

-4 °F | -20 °C
Plating Type

Nickel-Plated
Quantity per Box

10
Region of Origin

Germany
Technology

Pneumatics | Fluid & Gas Handling
Weight

0.1031 kg
