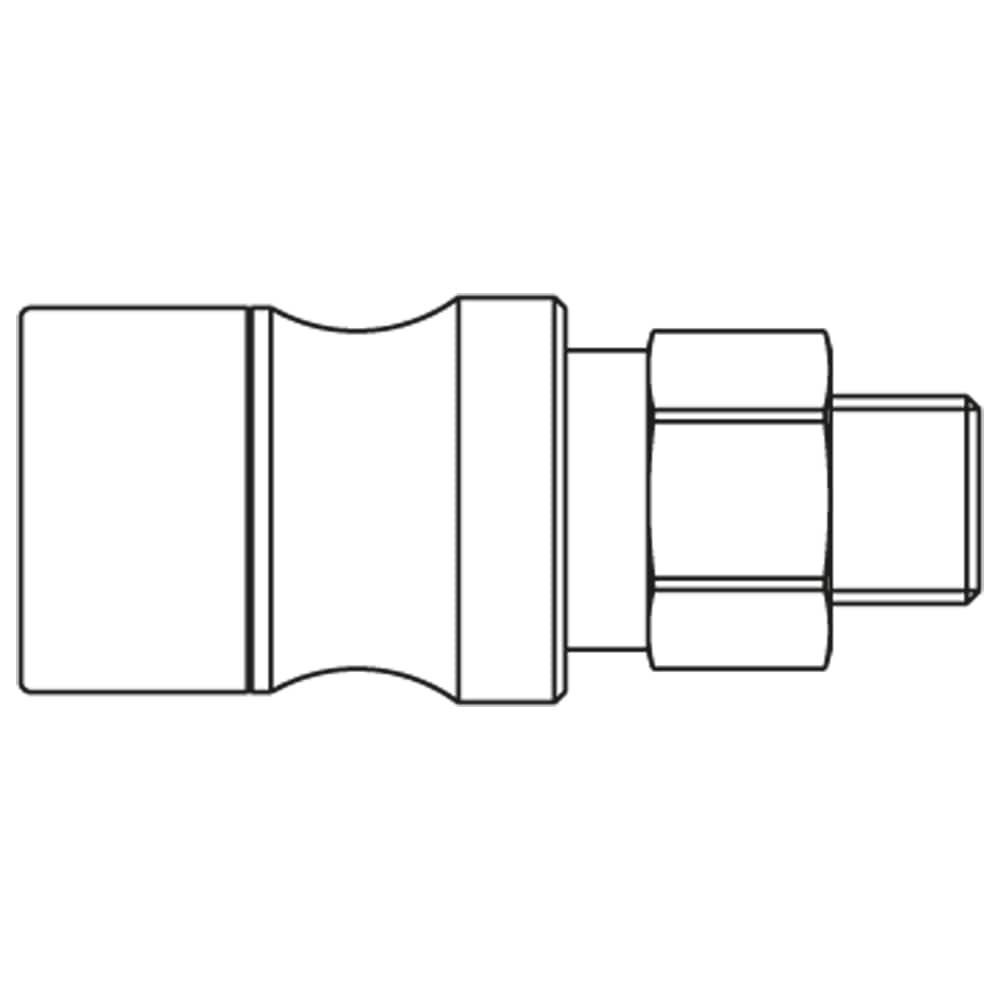

204KLAW10EEX — Quick couplings, Parker Profile, DN4 (Series 204) — G1/8

Description

The 204KLAW10EEX is a Quick couplings, Parker Profile, DN4 (Series 204) (G1/8), supplied from UK stock by J&J Air Systems. It is rated to a maximum operating pressure of 15 bar and an operating temperature range of -40°C to 150°C.

Specification

• Part number: 204KLAW10EEX
• Size / variant: G1/8
• Maximum operating pressure: 15 bar
• Operating temperature: -40°C to 150°C
• Suitable for: drinking, lubricants) | Coolants (Industrial coolants, solvents, treated water) | Yes | Chemicals (Painst, Water (Industrial, water-glycol) | Dry-break
• Weight: 0.0436 kg | 4 mm (nominal)

Need technical advice, availability or volume pricing? Call 0800 0278 442 or email [email protected].

About this range

Parker’s dry break coupling system has been developed for applications in sensitive environments, for example in analysis technology, in cooling systems, in transport systems and many applications with aggressive media.
This coupling system with single-hand operation has extremely low leakage rates and minimal dead space volume. The design allows absolutely no air pockets when coupling and only a barely noticeable film of the medium being channeled on the valve bodies when uncoupling.
Markets:
– Life Science
– Process
– Electronic Cooling
– Industrial
– Food & Beverage
Features/Benefits:
– Dry break – extremely low dead volume remaining
– Single-handed operation for easy and fast connection
– Ergonomic sleeve shape for easy handling
– Low connecting forces
– Valve body protected by collar design
– Clean, deposit free surface (RZ16)
– High vacuum rating
Applications:
– Laboratory Gas Supply
– Cooling of Electronic Components
– Vacuum Applications
– Food and chemical processing
– Water and coolant lines
– Thermal Management
