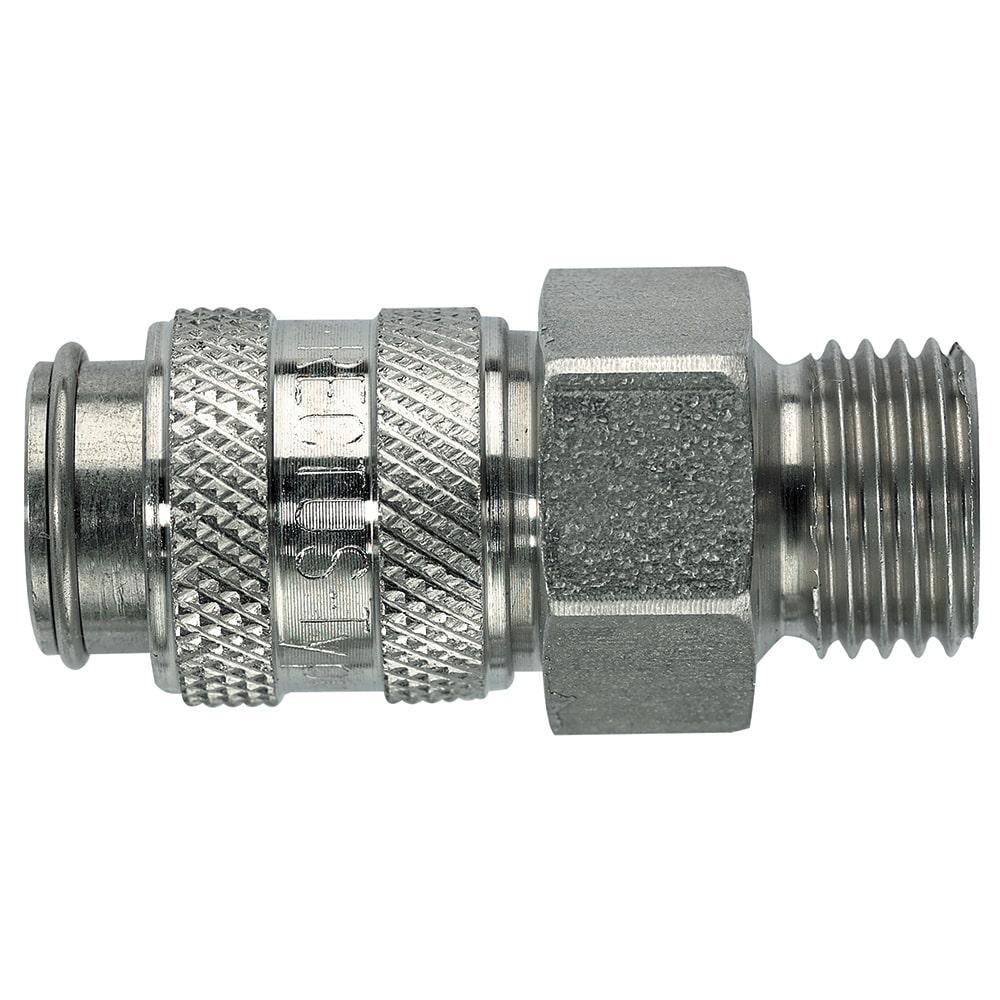

21KAAW13EVX — Quick Coupling, European profile, ND 5 (Series 21) — Straight — G1/4
21KAAW13EVX — Quick Coupling, European profile, ND 5 (Series 21) — Straight — G1/4 - Image 2

21KAAW13EVX — Quick Coupling, European profile, ND 5 (Series 21) — Straight — G1/4

£59.93 exc. VAT; £71.92 inc. VAT

21KAAW13EVX — Quick coupling system with nominal diameter 5 for pneumatic, liquids and gas applications up to 35 bar. Available in brass, nickel-plated brass, or stainless steel.

Available to order - usually dispatched within 1 week (Manufacturer Dependant)

SKU: 21KAAW13EVX Category:

Description

The 21KAAW13EVX is a Quick Coupling, European profile, ND 5 (Series 21) (Straight, G1/4), supplied from UK stock by J&J Air Systems. It is rated to a maximum operating pressure of 35 bar and an operating temperature range of -15°C to 200°C.

Specification

  • Part number: 21KAAW13EVX
  • Size / variant: Straight, G1/4
  • Maximum operating pressure: 35 bar
  • Operating temperature: -15°C to 200°C
  • Suitable for: Air & Neutral Gases (Industrial compressed, drinking, inert gases) | Water (Industrial, lubricants), lubricated air, solvents, treated water) | Chemicals (Paints
  • Applications: Medical | Energy Management | Textile Machinery | Food & Beverages | Safety & Rescue | Pharma | Electronics | Industrial Machinery | Air & Gas Compressor | Trucks & Trailers
  • Weight: 0.032 kg

Need technical advice, availability or volume pricing? Call 0800 0278 442 or email [email protected].

About this range

Parker’s Series 21 is a mini-industrial coupling with European profile. Coupling system with single-hand operation. Above average flow performance for liquid and gaseous media.
Markets:
– Industrial
– Electronics and energy management
– Rescue Equipment
– Life Science
– Machinery construction
– Material Handling
– Transportation
– Automotive
– Process
– Food & Beverage
Features/Benefits:
– Mini Industrial Coupling
– Single-hand operation for easy and fast connection
– European profile is the most representative profile worldwide
– Dry-break version available
– Additional safety locking system available to prevent unintentional disconnection

Additional information

Weight 0.032 kg
Body Material

Stainless Steel 316L
Connection Size

G 1/4
Connection Type

Male | BSPP ISO 228 Parallel
Coupling Half

Coupler
Diameter

5 mm (nominal)
Flow Rate

7 L/min (water) | 550 L/min (air)
Function

Single Shut-Off
Operation Type

Sleeve
Outside Diameter

16 mm
Product Series

Series 21
Product Style

Quick-Connect
Product Type

Pneumatic Quick Couplings
Seal Material

FKM
Shape

Straight
Sleeve Material

Stainless Steel 316L
Valve Included

Yes
Valve Type

Standard Valve
Application

Medical | Energy Management | Textile Machinery | Food & Beverages | Safety & Rescue | Pharma | Electronics | Industrial Machinery | Air & Gas Compressor | Trucks & Trailers
Brand

Parker | Rectus
Compatible Fitting

Series 21 Plug
Division

Low Pressure Connectors Europe Division | Low Pressure Connectors Europe Division
For Fluid Type

Air & Neutral Gases (Industrial compressed, drinking, inert gases) | Water (Industrial, lubricants), lubricated air, solvents, treated water) | Chemicals (Paints
Hex Size

17 mm
Industry

General Industrial | Healthcare & Life Sciences | Electronics | Transportation
Interchange Type

European Profile
Maximum Operating Pressure

507 psi | 35 bar
Maximum Operating Temperature

200 °C | 302 °F
Minimum Operating Temperature

5 °F | -15 °C
Plating Type

Without Surface Treatment
Quantity per Box

2
Region of Origin

Germany
Technology

Pneumatics | Fluid & Gas Handling
Weight

0.032 kg
