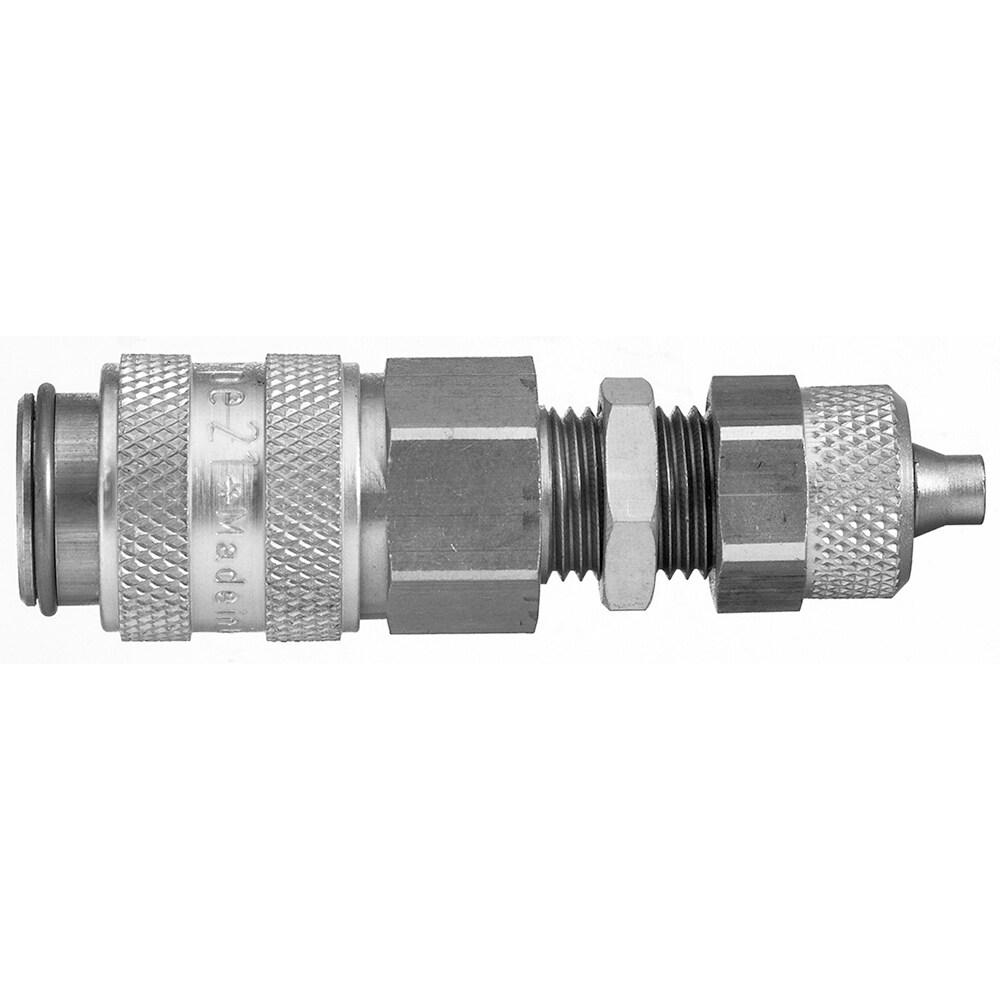

21KLKS06MEN — Quick Coupling, European profile, ND 5 (Series 21) — Straight — 4x6mm
21KLKS06MEN — Quick Coupling, European profile, ND 5 (Series 21) — Straight — 4x6mm - Image 2

21KLKS06MEN — Quick Coupling, European profile, ND 5 (Series 21) — Straight — 4x6mm

£60.28 exc. VAT; £72.34 inc. VAT

21KLKS06MEN — Quick coupling system with nominal diameter 5 for pneumatic, liquids and gas applications up to 35 bar. Available in brass, nickel-plated brass, or stainless steel.

Available to order - usually dispatched within 1 week (Manufacturer Dependant)

SKU: 21KLKS06MEN Category:

Description

The 21KLKS06MEN is a Quick Coupling, European profile, ND 5 (Series 21) (Straight, 4x6mm), supplied from UK stock by J&J Air Systems. It is rated to a maximum operating pressure of 8 bar and an operating temperature range of -40°C to 150°C.

Specification

  • Part number: 21KLKS06MEN
  • Size / variant: Straight, 4x6mm
  • Maximum operating pressure: 8 bar
  • Operating temperature: -40°C to 150°C
  • Suitable for: Chemicals (Paints, drinking, lubricants) | Coolants (Industrial coolants, solvents, treated water), water-glycol) | Water (Industrial
  • Applications: Electronics | Energy Management | Trucks & Trailers | Industrial Machinery
  • Weight: 0.0402 kg

Need technical advice, availability or volume pricing? Call 0800 0278 442 or email [email protected].

About this range

Parker’s Series 21 is a mini-industrial coupling with European profile. Coupling system with single-hand operation. Above average flow performance for liquid and gaseous media.
Markets:
– Industrial
– Electronics and energy management
– Rescue Equipment
– Life Science
– Machinery construction
– Material Handling
– Transportation
– Automotive
– Process
– Food & Beverage
Features/Benefits:
– Mini Industrial Coupling
– Single-hand operation for easy and fast connection
– European profile is the most representative profile worldwide
– Dry-break version available
– Additional safety locking system available to prevent unintentional disconnection

Additional information

Weight 0.0402 kg
Body Material

Brass
Connection Size

4×6 mm
Connection Type

Tube Panel mount without Spring Guard
Coupling Half

Coupler
Diameter

5 mm (nominal)
Flow Rate

2.7 L/min (water)
Function

Dry-Break (Double Shut-Off)
Length

54 mm
Operation Type

Sleeve
Outside Diameter

16 mm
Product Series

Series 21
Product Style

Quick-Connect
Product Type

Pneumatic Quick Couplings
Seal Material

EPDM
Shape

Straight
Sleeve Material

Brass
Valve Included

Yes
Valve Type

Standard Valve
Application

Electronics | Energy Management | Trucks & Trailers | Industrial Machinery
Brand

Rectus | Parker
Compatible Fitting

Series 21 Plug
Division

Low Pressure Connectors Europe Division | Low Pressure Connectors Europe Division
For Fluid Type

Chemicals (Paints, drinking, lubricants) | Coolants (Industrial coolants, solvents, treated water), water-glycol) | Water (Industrial
Hex Size

14 mm
Industry

Electronics | Transportation | General Industrial
Interchange Type

European Profile
Maximum Operating Pressure

8 bar | 116 psi
Maximum Operating Temperature

150 °C | 302 °F
Minimum Operating Temperature

-40 °C | -40 °F
Plating Type

Nickel-Plated
Quantity per Box

5
Region of Origin

Germany
Technology

Pneumatics | Fluid & Gas Handling
Weight

0.0402 kg
