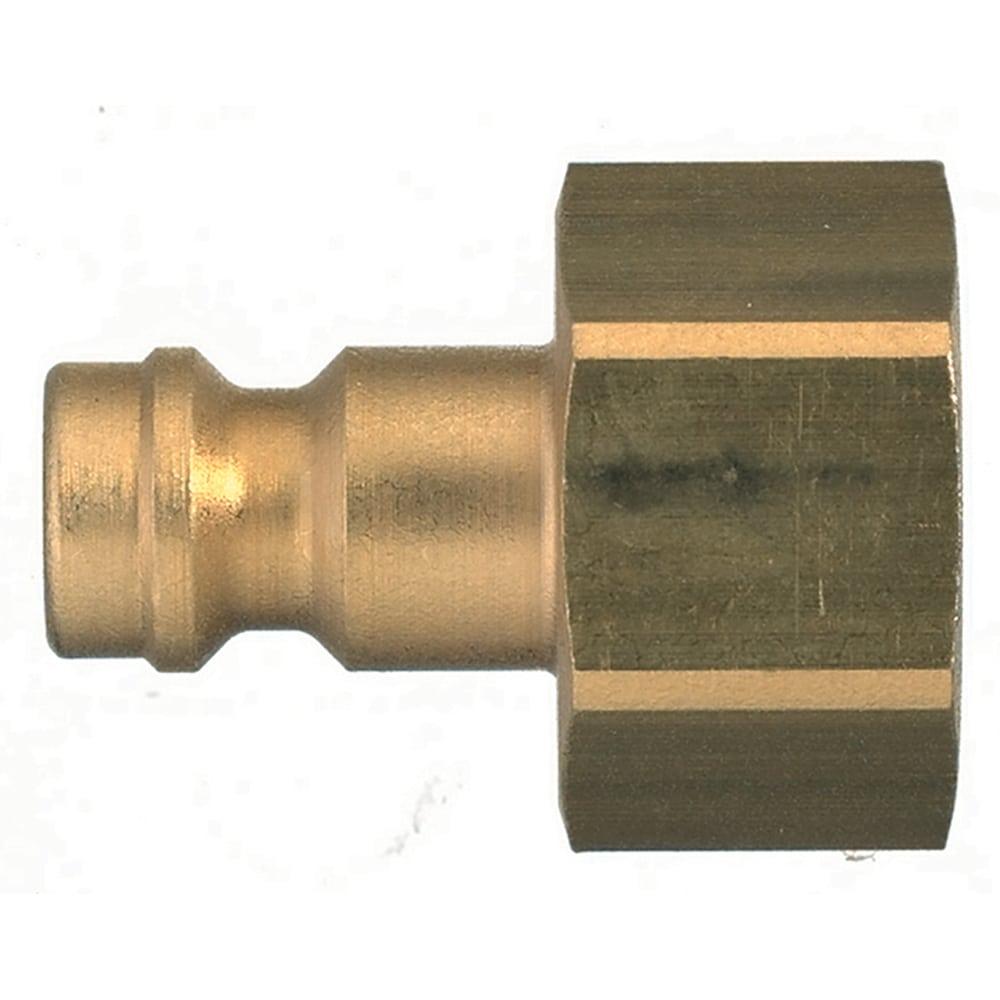

21SFIM14EXX — Quick Coupling, European profile, ND 5 (Series 21) — Straight — 14x1.5mm
21SFIM14EXX — Quick Coupling, European profile, ND 5 (Series 21) — Straight — 14x1.5mm - Image 2

21SFIM14EXX — Quick Coupling, European profile, ND 5 (Series 21) — Straight — 14×1.5mm

£16.22 exc. VAT; £19.46 inc. VAT

21SFIM14EXX — Quick coupling system with nominal diameter 5 for pneumatic, liquids and gas applications up to 35 bar. Available in brass, nickel-plated brass, or stainless steel.

Available to order - usually dispatched within 1 week (Manufacturer Dependant)

SKU: 21SFIM14EXX Category:

Description

The 21SFIM14EXX is a Quick Coupling, European profile, ND 5 (Series 21) (Straight, 14×1.5mm), supplied from UK stock by J&J Air Systems. It is rated to a maximum operating pressure of 35 bar and an operating temperature range of -40°C to 240°C.

Specification

  • Part number: 21SFIM14EXX
  • Size / variant: Straight, 14×1.5mm
  • Maximum operating pressure: 35 bar
  • Operating temperature: -40°C to 240°C
  • Suitable for: drinking, inert gases) | Coolants (Industrial coolants, lubricants) | Air & Neutral Gases (Industrial compressed, lubricated air, solvents, treated water) | Chemicals (Paints, Water (Industrial, water-glycol)
  • Applications: Industrial Machinery | Electronics | Energy Management | Medical
  • Weight: 0.0167 kg

Need technical advice, availability or volume pricing? Call 0800 0278 442 or email [email protected].

About this range

Parker’s Series 21 is a mini-industrial coupling with European profile. Coupling system with single-hand operation. Above average flow performance for liquid and gaseous media.
Markets:
– Industrial
– Electronics and energy management
– Rescue Equipment
– Life Science
– Machinery construction
– Material Handling
– Transportation
– Automotive
– Process
– Food & Beverage
Features/Benefits:
– Mini Industrial Coupling
– Single-hand operation for easy and fast connection
– European profile is the most representative profile worldwide
– Dry-break version available
– Additional safety locking system available to prevent unintentional disconnection

Additional information

Weight 0.0167 kg
Body Material

Stainless Steel 316L
Connection Size

M14x1.5
Connection Type

Metric DIN 13 | Female
Coupling Half

Plug
Diameter

5 mm (nominal)
Flow Rate

2.7 L/min (water) | 550 L/min (air)
Function

Straight-Through
Operation Type

Without Sleeve
Product Series

Series 21
Product Style

Quick-Connect
Product Type

Pneumatic Quick Couplings
Seal Material

Without Seal
Shape

Straight
Sleeve Material

No sleeve
Valve Included

No
Valve Type

Without Valve
Application

Industrial Machinery | Electronics | Energy Management | Medical
Brand

Parker | Rectus
Compatible Fitting

Series 21 Coupler
Division

Low Pressure Connectors Europe Division | Low Pressure Connectors Europe Division
For Fluid Type

drinking, inert gases) | Coolants (Industrial coolants, lubricants) | Air & Neutral Gases (Industrial compressed, lubricated air, solvents, treated water) | Chemicals (Paints, Water (Industrial, water-glycol)
Industry

General Industrial | Electronics | Healthcare & Life Sciences
Interchange Type

European Profile
Maximum Operating Pressure

507 psi | 35 bar
Maximum Operating Temperature

240 °C | 464 °F
Minimum Operating Temperature

-40 °F | -40 °C
Plating Type

Without Surface Treatment
Quantity per Box

2
Region of Origin

Germany
Specifications Met

ATEX | RoHS
Technology

Pneumatics | Fluid & Gas Handling
Weight

0.0167 kg
