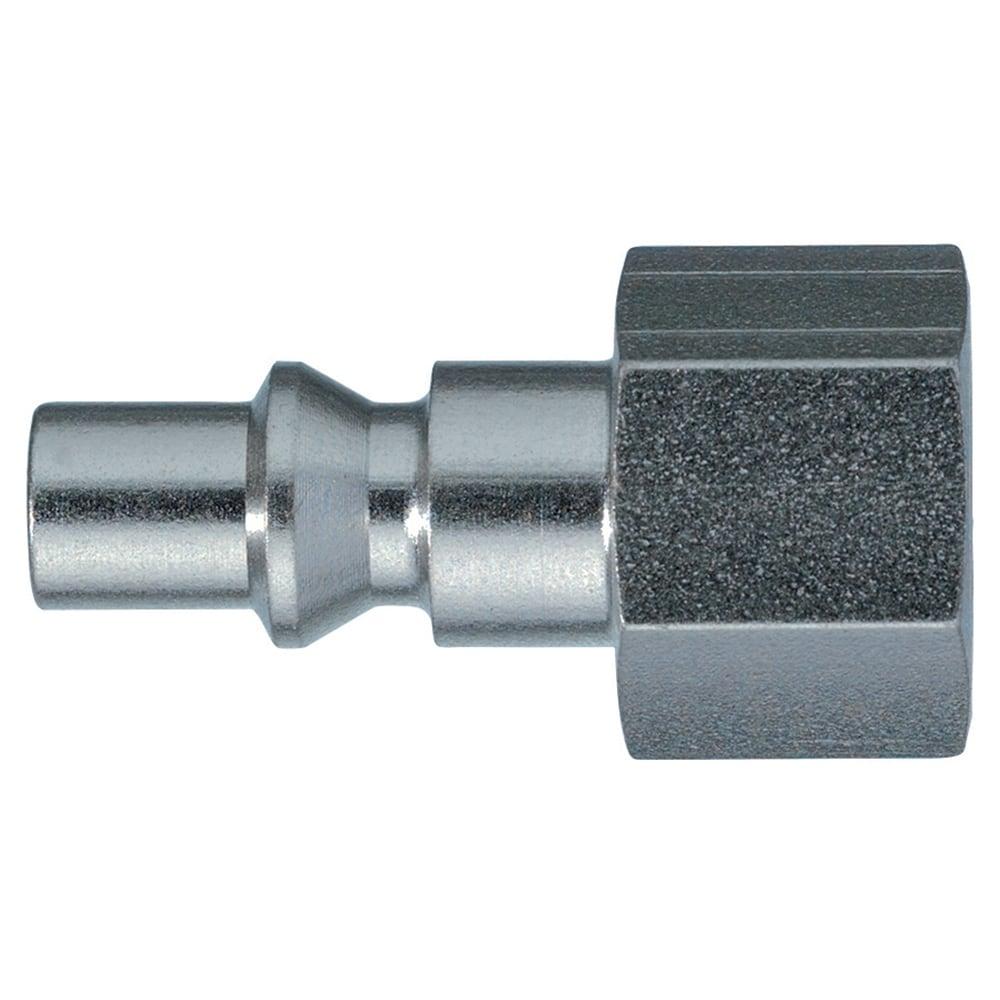

22SFIW21SXN — Quick Coupling, ARO profile, ND 5.5 (Series 14 and Series 22) — G1/2
22SFIW21SXN — Quick Coupling, ARO profile, ND 5.5 (Series 14 and Series 22) — G1/2 - Image 2

22SFIW21SXN — Quick Coupling, ARO profile, ND 5.5 (Series 14 and Series 22) — G1/2

£5.59 exc. VAT; £6.71 inc. VAT

22SFIW21SXN — Quick coupling system with nominal diameter 5,5 for pneumatic applications up to 35 bar. Available in brass, or steel.

Available to order - usually dispatched within 1 week (Manufacturer Dependant)

SKU: 22SFIW21SXN Category:

Description

The 22SFIW21SXN is a Quick Coupling, ARO profile, ND 5.5 (Series 14 and Series 22) (G1/2), supplied from UK stock by J&J Air Systems. It is rated to a maximum operating pressure of 35 bar and an operating temperature range of -40°C to 240°C.

Specification

  • Part number: 22SFIW21SXN
  • Size / variant: G1/2
  • Maximum operating pressure: 35 bar
  • Operating temperature: -40°C to 240°C
  • Suitable for: drinking, inert gases), lubricated air, treated water) | Air & Neutral Gases (Industrial compressed, Water (Industrial
  • Applications: Textile Machinery | Industrial Machinery | Air & Gas Compressor | Food & Beverages
  • Weight: 0.038 kg

Need technical advice, availability or volume pricing? Call 0800 0278 442 or email [email protected].

About this range

Parker’s Series 14 is a robust brass quick coupling with ARO profile.
Parker’s Series 22 is pneumatic coupling with ARO profile. The high-flow valve guarentees an optimum flow and low pressure drops.
Markets:
– General Industrial
– Air & Gas Compressor
– Industrial Machinery
– Process
– Textile Machinery
Features/Benefits:
– Pneumatic industrial couplings
– ARO is the most common profile in Benelux, Switzerland and in Soutth Afric.
– Single hand operation for easy and fast connection
– Optimum flow rate with high flow valve (series 22)
– Wide range of connection options

Additional information

Weight 0.038 kg
Body Material

Steel
Connection Size

G 1/2
Connection Type

Female | BSPP
Coupling Half

Plug
Diameter

5.5 mm (nominal)
Flow Rate

800 L/min (air) | 15 L/min (water)
Function

Straight-Through
Length

35 mm
Operation Type

No Sleeve
Product Series

Series 22
Product Style

Quick Connect
Product Type

Pneumatic Quick Couplings
Seal Material

Without Seal
Sleeve Material

Without Sleeve
Valve Included

No
Valve Type

Without Valve
Application

Textile Machinery | Industrial Machinery | Air & Gas Compressor | Food & Beverages
Brand

Rectus | Parker
Compatible Fitting

Series 22 Coupler | Series 14 Coupler
Division

Low Pressure Connectors Europe Division | Low Pressure Connectors Europe Division
For Fluid Type

drinking, inert gases), lubricated air, treated water) | Air & Neutral Gases (Industrial compressed, Water (Industrial
Hex Size

24 mm
Industry

General Industrial
Interchange Type

ARO Profile
Maximum Operating Pressure

35 bar | 508 psi
Maximum Operating Temperature

240 °C | 464 °F
Minimum Operating Temperature

-40 °F | -40 °C
Plating Type

Nickel-Plated
Quantity per Box

10
Region of Origin

Germany
Technology

Fluid & Gas Handling | Pneumatics
Weight

0.038 kg
