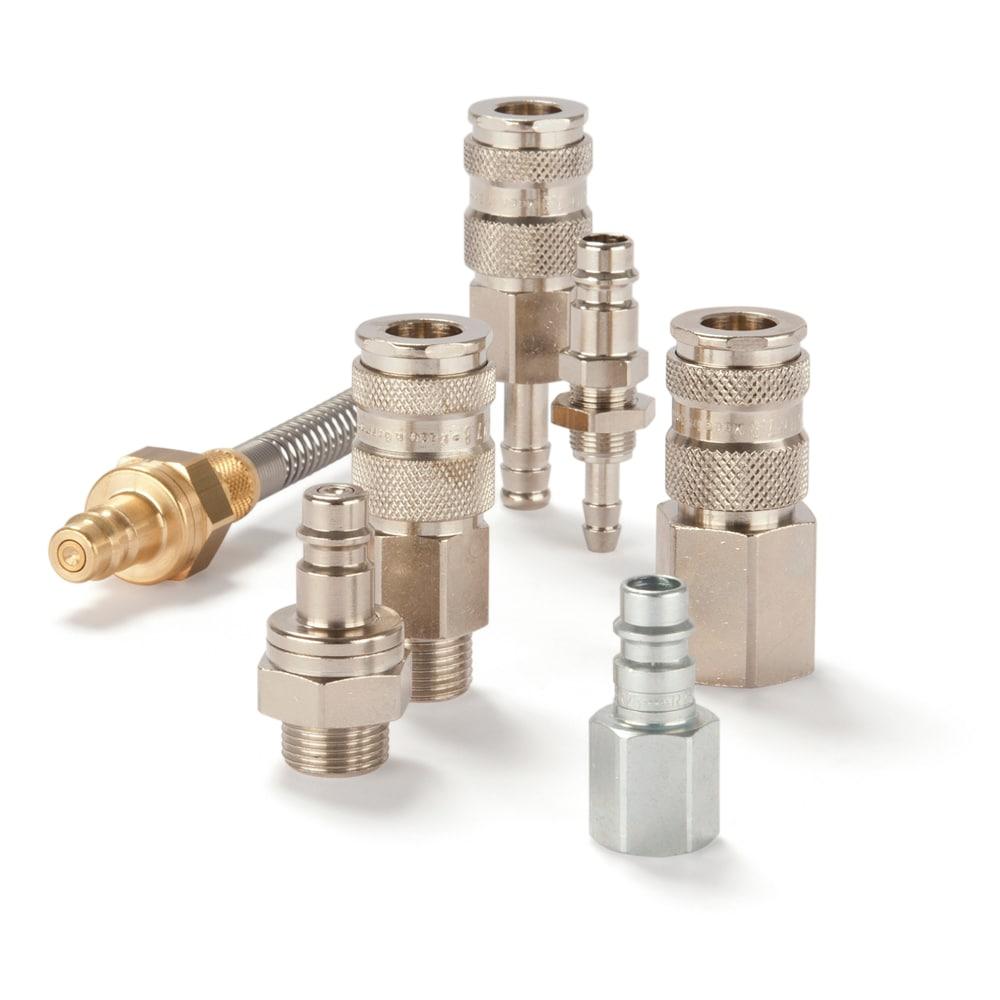

25SFKK08MXN — Quick coupling system with nominal diameter 7.8 for pneumatic (series 25, 1600 and 1625), liquids — 6x8mm
25SFKK08MXN — Quick coupling system with nominal diameter 7.8 for pneumatic (series 25, 1600 and 1625), liquids — 6x8mm - Image 2

25SFKK08MXN — Quick coupling system with nominal diameter 7.8 for pneumatic (series 25, 1600 and 1625), liquids — 6x8mm

£5.53 exc. VAT; £6.64 inc. VAT

25SFKK08MXN — Quick coupling system with nominal diameter 7.8 for pneumatic (series 25, 1600 and 1625), liquids and gas applications (series 25) up to 35 bar. Available in nickel-plated brass, steel, stainless steel (technical polymer sleeve for series 1625).

Available to order - usually dispatched within 1 week (Manufacturer Dependant)

SKU: 25SFKK08MXN Category:

Description

Parker’s Series 25 is industrial coupling with European profile. Coupling system with single-hand operation. High flow valve for optimum flow and low pressure drops. Series stands out for its robust design and long service life even with the harshest use.
Parker’s Series 1600 and 1625 are industrial coupling with European profile. Coupling system with single-hand operation. Suitable for compressed air application with greater than average air consumption. Ultra-High flow valve for optimum flow and low pressure drop. Extremely robust and ergonomically shaped (series 1625)
Markets:
Series 25 – Electronics and Energy Management
– Tranportation
– Life Science
– Industrial
Series 1600 and 1625 – Electronics and Energy Management
– Transportation
– Industrial
Features/Benefits:
– Industrial coupling with European profile, most representative profile worldwide
– Single-hand operation for easy and fast connection
– High-Flow and Ultra High-Flow valve for optimum flow and low pressure drop

Additional information

Weight 0.0268 kg
Body Material

Brass
Connection Size

6×8 mm
Connection Type

Tube with Spring Guard
Coupling Half

Plug
Diameter

7.8 mm (nominal)
Flow Rate

1800 L/min (air) | 28 L/min (water)
Function

Straight-Through
Length

30 to 155 mm
Operation Type

No Sleeve
Outside Diameter

n/a mm
Product Series

Series 25
Product Style

Quick Connect
Product Type

Pneumatic Quick Couplings
Seal Material

Without Seal
Sleeve Material

Without Sleeve
Valve Included

No
Valve Type

Without Valve
Application

Mobile & Defence | Trucks & Trailers | Industrial Machinery | Air & Gas Compressor | Electronics | Pharma
Brand

Parker | Rectus
Compatible Fitting

Series 25 Coupler | Series 1625 Coupler | Series 1600 Coupler
Division

Low Pressure Connectors Europe Division | Low Pressure Connectors Europe Division
For Fluid Type

drinking, inert gases), lubricated air, treated water) | Air & Neutral Gases (Industrial compressed, Water (Industrial
Hex Size

13 to 24 mm
Industry

Transportation | Electronics | General Industrial | Healthcare & Life Sciences
Interchange Type

European Profile
Maximum Operating Pressure

35 bar | 507 psi
Maximum Operating Temperature

240 °C | 464 °F
Minimum Operating Temperature

-40 °F | -40 °C
Plating Type

Nickel-Plated
Quantity per Box

10.0
Region of Origin

Germany
Technology

Pneumatics | Fluid & Gas Handling
Weight

0.0 kg
