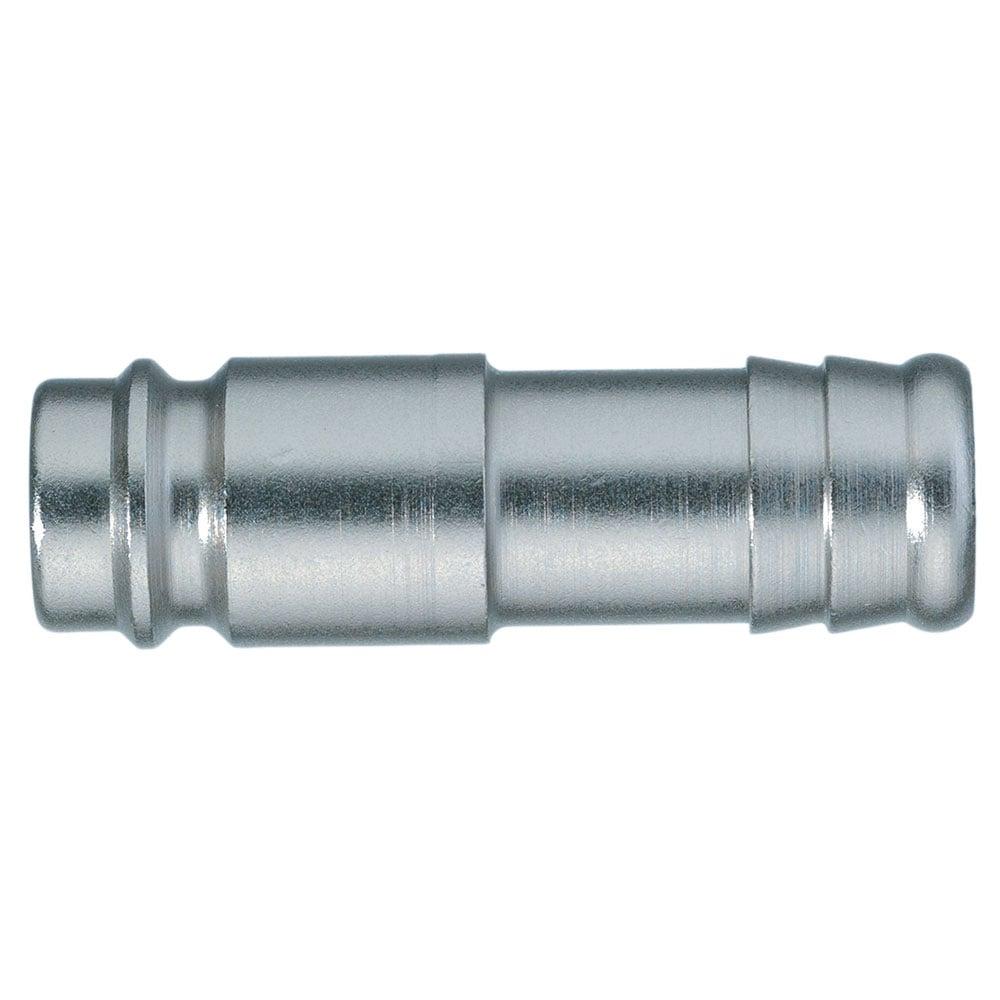

41SFTF19MXN — Quick coupling system with nominal diameter 10 for pneumatic and fluid handling applications up to — 19mm

41SFTF19MXN — Quick coupling system with nominal diameter 10 for pneumatic and fluid handling applications up to — 19mm

£12.15 exc. VAT; £14.58 inc. VAT

41SFTF19MXN — Quick coupling system with nominal diameter 10 for pneumatic and fluid handling applications up to 35 bar. Coupling system with Parker own profile. Available made of brass nickel plated.

Available to order - usually dispatched within 1 week (Manufacturer Dependant)

SKU: 41SFTF19MXN Category:

Description

The 41SFTF19MXN is a Quick coupling system with nominal diameter 10 for pneumatic and fluid handling applications up to (19mm), supplied from UK stock by J&J Air Systems. It is rated to a maximum operating pressure of 35 bar and an operating temperature range of -20°C to 100°C.

Specification

  • Part number: 41SFTF19MXN
  • Size / variant: 19mm
  • Maximum operating pressure: 35 bar
  • Operating temperature: -20°C to 100°C
  • Suitable for: Chemicals (Paints, drinking, lubricants) | Water (Industrial, solvent, treated water)
  • Applications: High Flow Water Applications
  • Weight: 0.041 kg

Need technical advice, availability or volume pricing? Call 0800 0278 442 or email [email protected].

About this range

Parker’s Series 41 is a corrosion resistant brass coupling with no valve for applications with liquids in the pressure range up to 35 bar. Series 41 stands out for a high flow with minimal pressure drop.
Markets:
– Machinery Construction
Features/Benefits:
– Corrosion resistant
– High flow with minimal pressure drop
Applications:
– High flow water applications

Additional information

Weight 0.0411 kg
Body Material

Brass
Connection Size

19 mm
Connection Type

Hose Barb
Coupling Half

Plug
Diameter

10 mm (nominal)
Flow Rate

58 L/min (water)
Function

Straight-Through
Length

48 mm
Operation Type

No Sleeve
Outside Diameter

21 mm
Product Series

Series 41
Product Style

Quick Connect
Product Type

Quick Couplings
Seal Material

Without Seal
Sleeve Material

Without Sleeve
Type

Plug
Valve Included

No
Valve Type

Without Valve
Application

High Flow Water Applications
Brand

Rectus | Parker
Compatible Fitting

Coupler Series 41
Division

Low Pressure Connectors Europe Division | Low Pressure Connectors Europe Division
For Fluid Type

Chemicals (Paints, drinking, lubricants) | Water (Industrial, solvent, treated water)
Industry

Machinery Construction
Interchange Type

Parker Profile
Maximum Operating Pressure

35 bar | 508 psi
Maximum Operating Temperature

212 °F | 100 °C
Minimum Operating Temperature

-4 °F | -20 °C
Plating Type

Nickel-Plated
Quantity per Box

5.0
Region of Origin

Germany
Technology

Fluid & Gas Handling
Weight

0.041 kg
