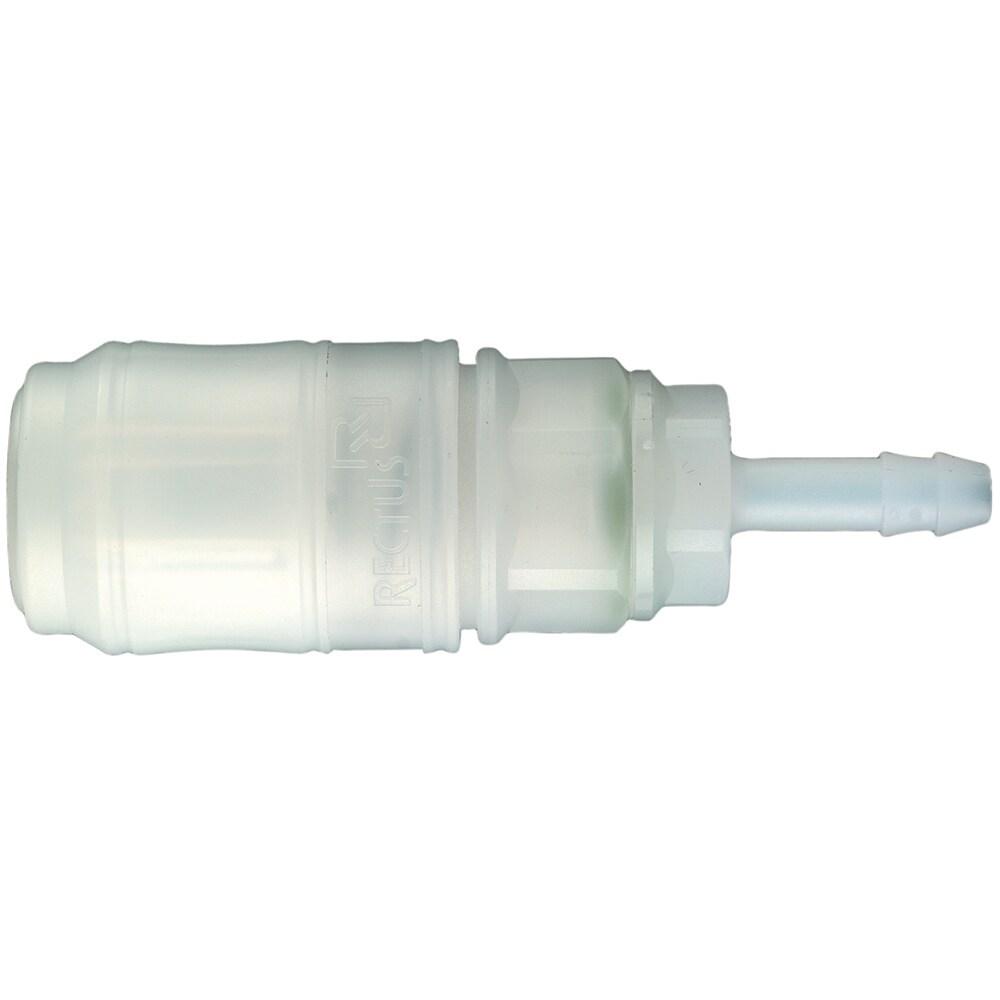

48KFTF06FVP — Quick Coupling, Thermoplastic, ND 7 (Series 48) — 6mm

Description

The 48KFTF06FVP is a Quick Coupling, Thermoplastic, ND 7 (Series 48) (6mm), supplied from UK stock by J&J Air Systems. It is rated to a maximum operating pressure of 8 bar and an operating temperature range of -20°C to 120°C.

Specification

• Part number: 48KFTF06FVP
• Size / variant: 6mm
• Maximum operating pressure: 8 bar
• Operating temperature: -20°C to 120°C
• Suitable for: Air & Neutral Gases (Industrial compressed, analytical, anesthesic gases) | Chemicals (Paints, drinking, inert gases) | Water (Industrial, lubricants), lubricated air, solvents, treated water) | Technical Gases (Medical
• Applications: Pneumatic | Media Transfer | Suction / Vacuum
• Weight: 0.028 kg

Need technical advice, availability or volume pricing? Call 0800 0278 442 or email [email protected].

About this range

Parker’s Quick Coupling Series 48 made of POM and PVDF has been developed for use in the medical, chemical, food handling, pharmaceutical and laboratory technology industries. The system is also available in a solid plastic design (RectuChem+). Here the metal springs are replaced by springs made of PEEK, an extremely resistant synthetic material.
The coupling system is developed for single-hand operation. The color coding of the coupling and plug offers a guarantee for avoiding mix-ups between media when coupling. The coupling is also available with no valve for a straight-through system.
Markets:
– Machinery Construction
– Automotive
– Process
– Life Science
– Industrial
Features/Benefits:
– Splash proof design – Plug is sealing prior to opening the valve.
– Only provider of a complete thermoplastic coupling (with PEEK spring)
– No mix-ups between media due to the color coding of coupling and plug
– Single-hand operation for easy and fast connection
Applications:
– Food and chemical processing
– Bio fluid transfer
– Thermal Management
