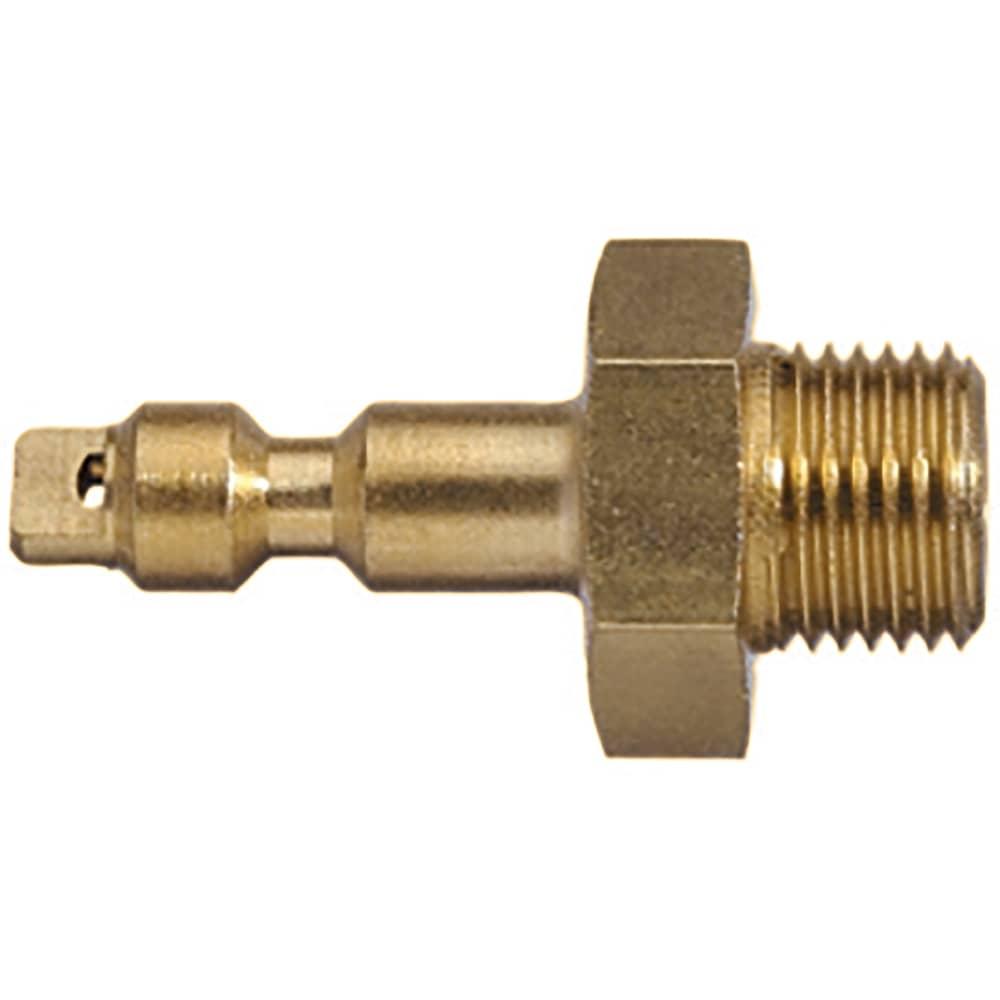

50SFAW10MXN — Quick couplings, German Profile, DN2.5 (Series 50) — G1/8
50SFAW10MXN — Quick couplings, German Profile, DN2.5 (Series 50) — G1/8 - Image 2

50SFAW10MXN — Quick couplings, German Profile, DN2.5 (Series 50) — G1/8

£10.08 exc. VAT; £12.10 inc. VAT

50SFAW10MXN — Premium quick coupling system with nominal diameter 2.5 for pneumatic and fluid handling applications up to 35 bar. Available made of brass.

Available to order - usually dispatched within 1 week (Manufacturer Dependant)

SKU: 50SFAW10MXN Category:

Description

The 50SFAW10MXN is a Quick couplings, German Profile, DN2.5 (Series 50) (G1/8), supplied from UK stock by J&J Air Systems. It is rated to a maximum operating pressure of 35 bar and an operating temperature range of -20°C to 100°C.

Specification

  • Part number: 50SFAW10MXN
  • Size / variant: G1/8
  • Maximum operating pressure: 35 bar
  • Operating temperature: -20°C to 100°C
  • Suitable for: Air & Neutral Gases (Industrial compressed, inert gases) | Chemicals (Paints, lubricants) | Water (Industrial coolants, lubricated air, solvents, water-glycol)
  • Applications: Automation
  • Weight: 0.0117 kg

Need technical advice, availability or volume pricing? Call 0800 0278 442 or email [email protected].

About this range

Parker’s Premium Quick Coupling Series 50 is a mini industrial quick coupling which can be used with various media.
The coupling system is developed for single-hand operation. This system is extremely easy to operate and stands out for its small installation dimensions.
Markets:
– Machinery Construction
Features/Benefits:
– Single-handed operation for easy and fast connection
– Small installation dimensions
Applications:
– Automation

Additional information

Weight 0.0117 kg
Body Material

Brass
Connection Size

G 1/8
Connection Type

Male | BSPP
Coupling Half

Plug
Diameter

2.5 mm (nominal)
Flow Rate

1.8 L/min (water) | 120 L/min (air)
Function

Straight-Through
Length

30 mm
Operation Type

No Sleeve
Product Series

Series 50
Product Style

Quick Connect
Product Type

Pneumatic Quick Couplings
Seal Material

Without Seal
Sleeve Material

Without Sleeve
Valve Included

No
Valve Type

Without Valve
Application

Automation
Brand

Parker | Rectus
Compatible Fitting

Series 50 Coupler
Division

Low Pressure Connectors Europe Division | Low Pressure Connectors Europe Division
For Fluid Type

Air & Neutral Gases (Industrial compressed, inert gases) | Chemicals (Paints, lubricants) | Water (Industrial coolants, lubricated air, solvents, water-glycol)
Hex Size

14 mm
Industry

General Industrial | Machinery Construction
Interchange Type

German Profile
Maximum Operating Pressure

508 psi | 35 bar
Maximum Operating Temperature

212 °F | 100 °C
Minimum Operating Temperature

-4 °F | -20 °C
Plating Type

Nickel-Plated
Quantity per Box

10.0
Region of Origin

Germany
Technology

Pneumatics | Fluid & Gas Handling
Weight

0.0117 kg
