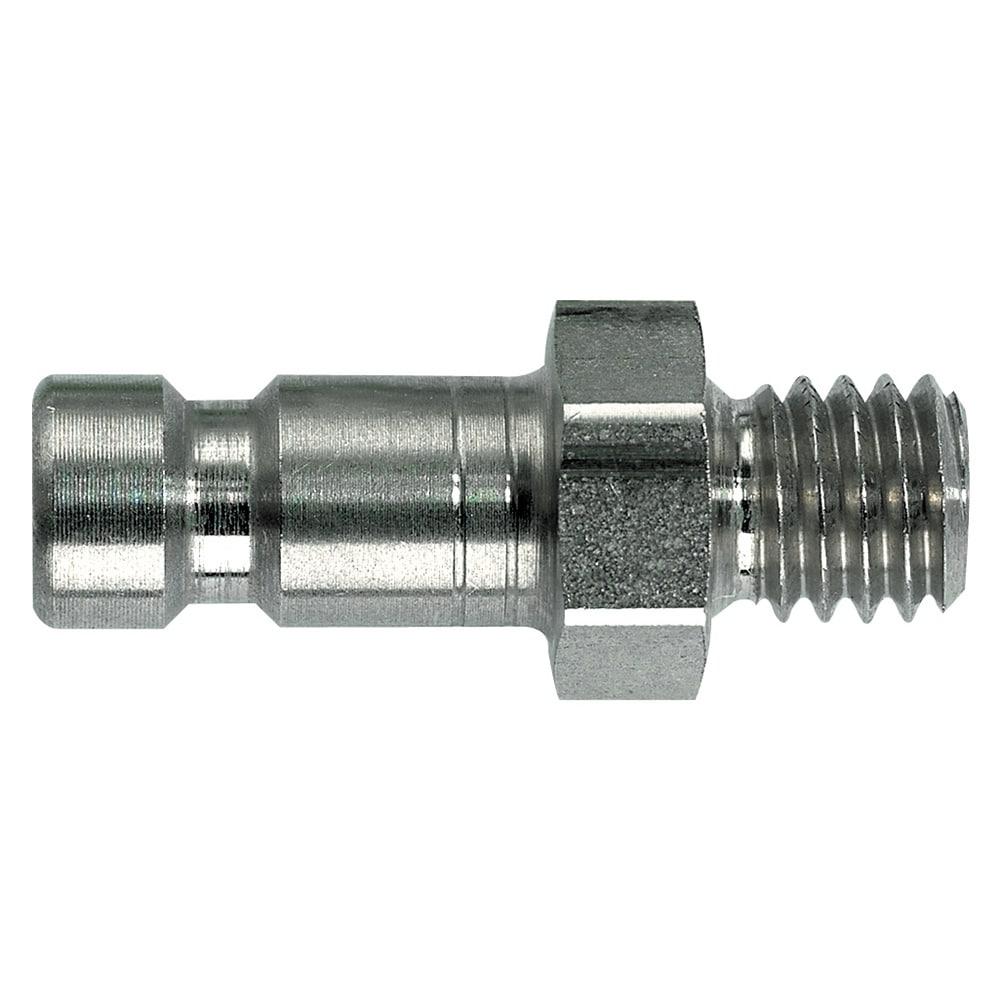

20SFAM05RXX — Quick Coupling, European Profile, ND 2.7 (Series 20) — M5
20SFAM05RXX — Quick Coupling, European Profile, ND 2.7 (Series 20) — M5 - Image 2

20SFAM05RXX — Quick Coupling, European Profile, ND 2.7 (Series 20) — M5

£15.51 exc. VAT; £18.61 inc. VAT

20SFAM05RXX — Quick coupling system with nominal diameter 2.7 for pneumatic, liquids and gas applications up to 35 bar. Available in nickel-plated brass or stainless steel.

Available to order - usually dispatched within 1 week (Manufacturer Dependant)

SKU: 20SFAM05RXX Category:

Description

The 20SFAM05RXX is a Quick Coupling, European Profile, ND 2.7 (Series 20) (M5), supplied from UK stock by J&J Air Systems. It is rated to a maximum operating pressure of 35 bar and an operating temperature range of -40°C to 240°C.

Specification

  • Part number: 20SFAM05RXX
  • Size / variant: M5
  • Maximum operating pressure: 35 bar
  • Operating temperature: -40°C to 240°C
  • Suitable for: Air & Neutral Gases (Industrial compressed, drinking, inert gases) | Chemicals (Paints, lubricants) | Water (Industrial, lubricated air, solvents, treated water) | Coolants (Industrial coolants, water-glycol)
  • Applications: Food & Beverages | Pharma | Industrial Machinery | Energy Management | Electronics | Medical
  • Weight: 0.0021 kg

Need technical advice, availability or volume pricing? Call 0800 0278 442 or email [email protected].

About this range

Parker’s Series 20 is a mini-industrial coupling with European profile. Coupling system with single-hand operation. High flow rate despite small dimensions.
Markets:
– Industrial
– Life Sciences
– Medical technology
– Chemistry pharmacybr/>- Electronics and energy management
– Transportation
– Machinery construction
– Automotive
– Process
Features/Benefits:
– Mini Industrial coupling
– Single hand operation for easy and fast connection
– European profile is the most representative profile worldwide

Additional information

Weight 0.0021 kg
Body Material

Stainless Steel 303
Connection Size

M5
Connection Type

Male | Metric
Coupling Half

Plug
Diameter

2.7 mm (nominal)
Flow Rate

165 L/min (air) | 1.5 L/min (water)
Function

Straight-Through
Length

18 mm
Operation Type

No Sleeve
Product Series

Series 20
Product Style

Quick Connect
Product Type

Pneumatic Quick Couplings
Seal Material

Without Seal
Sleeve Material

Without Sleeve
Valve Included

No
Valve Type

Without Valve
Application

Food & Beverages | Pharma | Industrial Machinery | Energy Management | Electronics | Medical
Brand

Parker | Rectus
Compatible Fitting

Series 20 Coupler
Division

Low Pressure Connectors Europe Division | Low Pressure Connectors Europe Division
For Fluid Type

Air & Neutral Gases (Industrial compressed, drinking, inert gases) | Chemicals (Paints, lubricants) | Water (Industrial, lubricated air, solvents, treated water) | Coolants (Industrial coolants, water-glycol)
Hex Size

7 mm (external)
Industry

Healthcare & Life Sciences | General Industrial | Electronics
Interchange Type

European Profile
Maximum Operating Pressure

507 psi | 35 bar
Maximum Operating Temperature

240 °C | 464 °F
Minimum Operating Temperature

-40 °F | -40 °C
Plating Type

Without Surface Treatment
Quantity per Box

2.0
Region of Origin

Germany
Technology

Fluid & Gas Handling | Pneumatics
Weight

0.0021 kg
